Motion Coordinator Technical Reference Manual
Daughter Boards 4-7
Fitting Daughter Boards to the Euro205
Fitting Daughter Boards to the Euro205
The Motion Coordinator Euro205 can use a single daughter board with an optional
P445 Euro 205 Daughter Board Mounting Kit, which consists of a replacement
(double width) front panel and 90º header connector.
Installation Procedure
• Ensure that anti-static precautions are taken when handling the Euro205
board.
• Check there is no power on the module
• Remove the standard front panel by undoing the retaining screws from the
rear of the PCB.

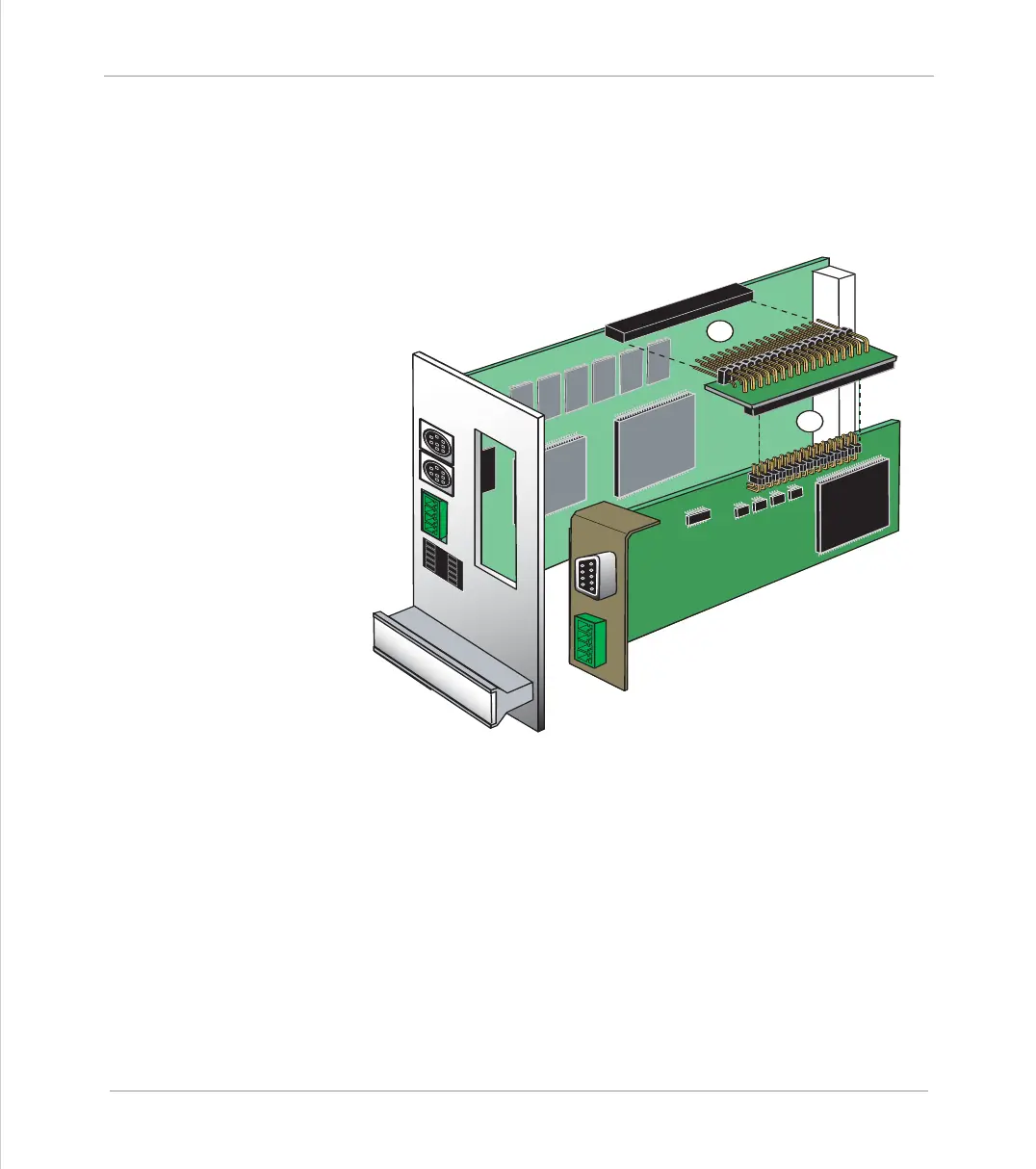

• Insert the new daughter board into the bottom of the adaptor, ensuring that
the pins are inserted into the holes nearest the front of the Eurocard as shown
in the following diagram (#1).
1
1
1
2
