Trio Motion Coordinator MC216 User Manual

10-32Support Software
Motion Perfect Tools
Trio Motion Technology
Advanced Oscilloscope Configuration Options

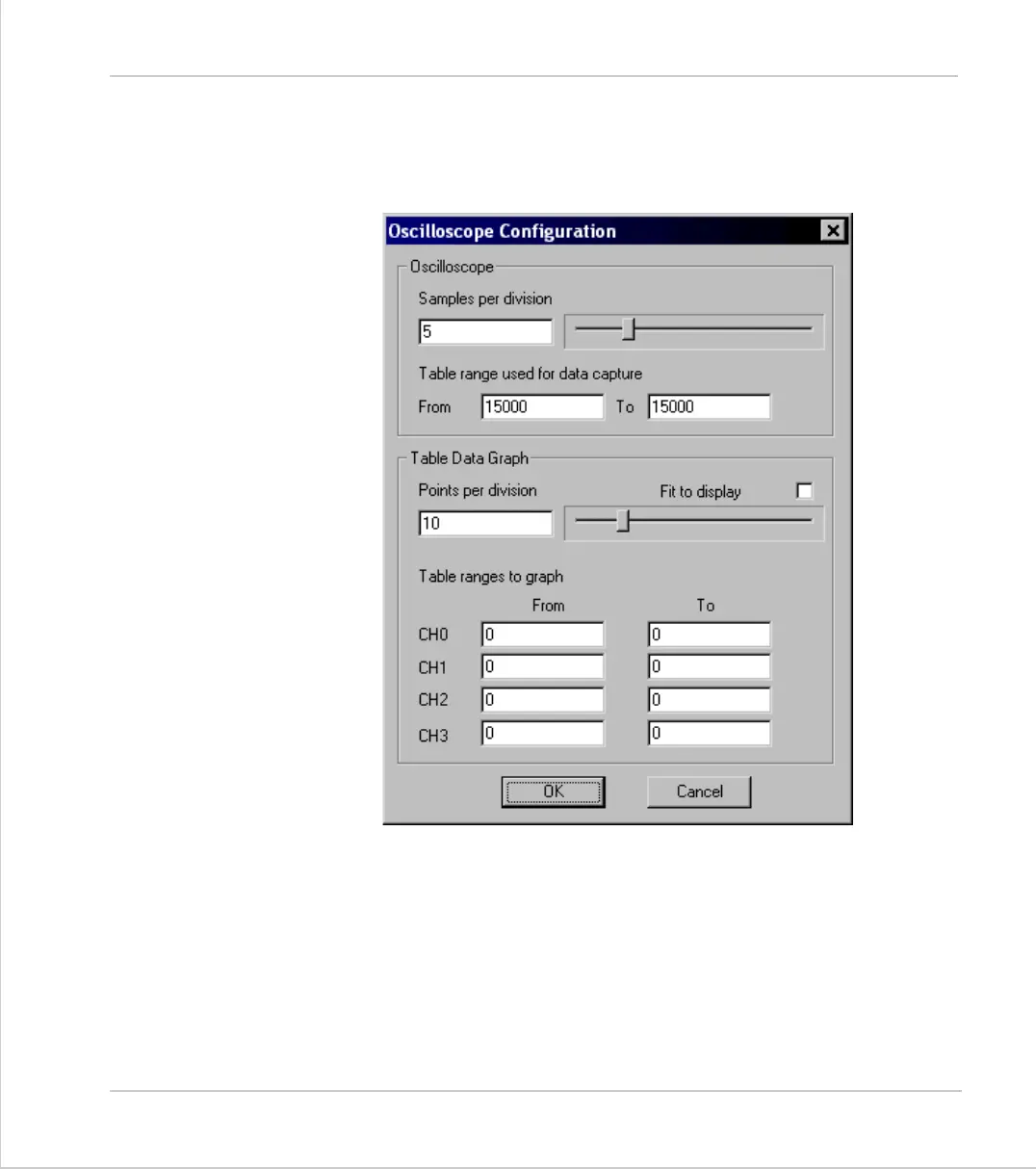

When the options button is pressed the advanced oscilloscope configuration set-
tings dialog is displayed, as shown below. Click the mouse button over the various
controls to reveal further information.
Samples per division
The oscilloscope defaults to recording five points per horizontal (time base) grid
division. This value can be adjusted using the adjacent scrollbar.
To achieve the fastest possible sample rate it is necessary to reduce the number
of samples per grid division to 1, and increase the time base scale to its fastest
value (1 servo period per grid division).
