Motion Coordinator Technical Reference Manual
Communications Protocols 13-9
Profibus

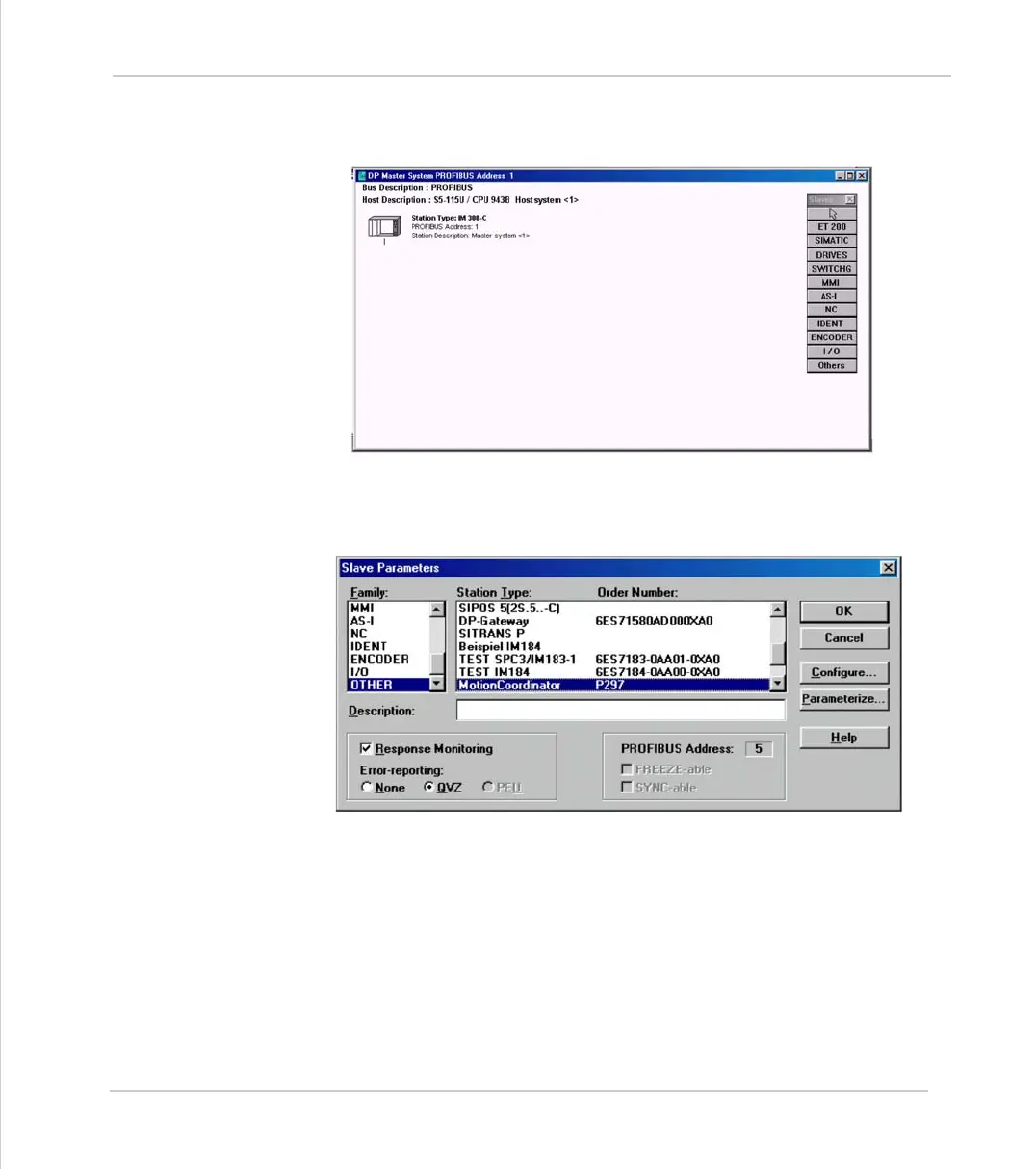

1. Launch the window shown below and click on “Others”.
2. Add the Box Icon to the network on the left and the Slave Parameters dialogue
will open. Choose Motion Coordinator P297 from the list as shown here:
