Setting
RFID channels — parameter data
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com
07.00 | 2022/09 | 93
Manually addressing read/write heads using the Turck Service Tool
NOTE
Turck recommends making the bus address of the read/write head visible on the
device. The label on the cable can be used to mark the address on the read/write
head. The appropriate labels can be ordered with ID 6936206.
The following accessories are required to address the read/write heads in HF bus mode via the
Turck Service Tool. Accessories are not supplied with the device and must be ordered separ-
ately.
n Suitable interface converter, e.g. STW-RS485-USB (ID 7030354)
n Suitable power supply unit, e.g. STW-RS485-USB-PS (ID 7030355)
Connect the read/write head to the interface converter using a suitable connection cable
(e.g. RK4.5T-2/S2500) according to the following color coding:
STW-RS485-USB …/S2500
plug connectors
…/S2501
plug connectors
…/S2503
plug connectors
VCC Brown (BN) Brown (BN) Red (RD)
GND Blue (BU) Blue (BU) Black (BK)
RS485-A White (WH) Black (BK) White (WH)
RS485-B Black (BK) White (WH) Blue (BU)
Connect a USB cable to the interface converter (USB1.1 type B).
Connect the open end of the USB cable to a free USB port on the PC
(USB1.1 type A).
Set the switches on the side of the interface converter for the termination to [ON].
Connect the interface converter via the STW… power supply unit to a power supply.
UHF RFID read/write head
e.g. TN-CK40-H1147/C53
Interface converter
STW-RS485-USB
Power supply
STW-RS485-USB-PS
RFID cable
e.g. RK4.5T/S2500
PC / Notebook
with USB-interface

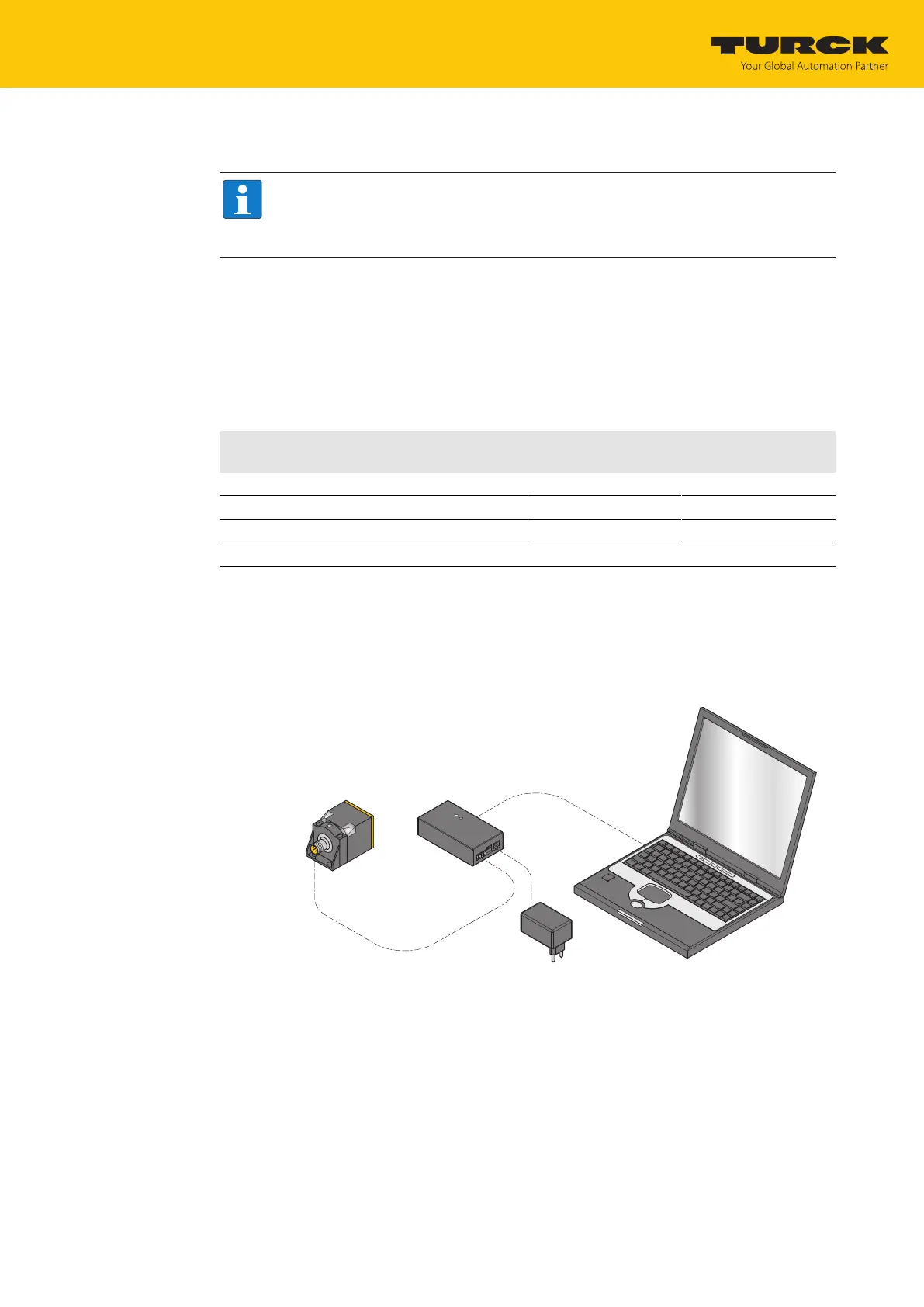

Fig.75: Connecting the read/write head to a PC via the interface converter
