WAGNER TITANUS User Manual

TITANUS MICRO·SENS
®
Installation
MS_A_05-en-e Data: 01/09 5 – 15
5.7 Incorporating the relay board RU-1/RU-2
If a relay board are needed, the board must be fitted into an additional
housing.
4

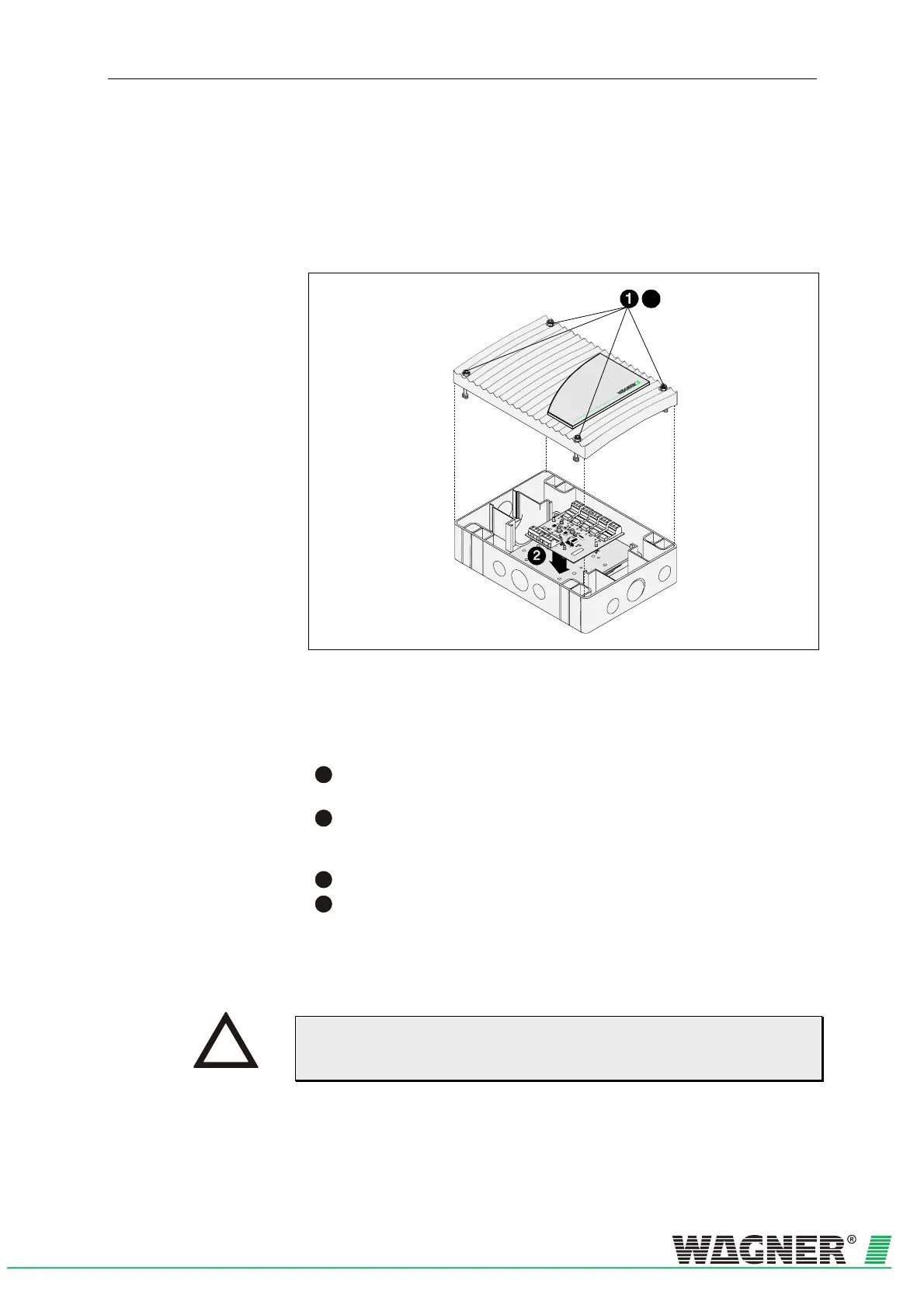

Fig. 5.14: Incorporating the relay board into the TITANUS MICRO·SENS
®
additional housing
Fitting Proceed as follows to incorporate the relay board:
1
Using a screwdriver, loosen the four screws on the additional
housing cover.
2
Push the spacer blocks into the installation plate
(for fixing points
see Fig. 5.8) on the additional housing. The
relay board is then en-
gaged with the spacer blocks using the holes provided
.
3
Feed the wires through as per the following switching plan.
4
Fit the cover again, using a screwdriver to fit the four screws on the
device cover firmly
.
An additional housing of TITANUS MICRO·SENS
®
is required per relay
board. Maximal 2 relay boards or remote display units can be connected
to the device.
INSTRUCTION

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
