5.12 Inserting the detection unit in the
device base unit
2

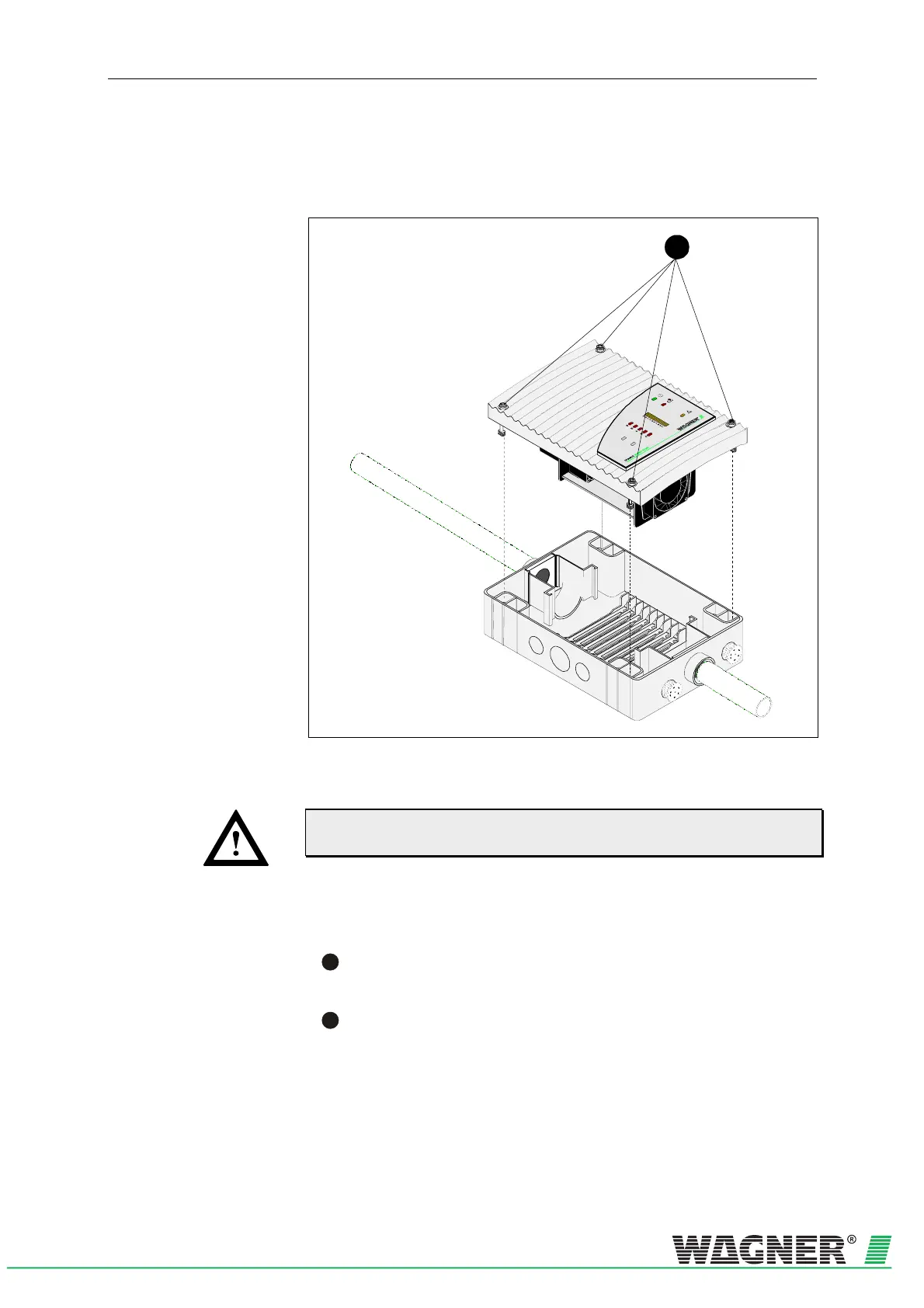

Fig. 5.30: Installing the TITANUS MICRO·SENS
®
aspirating smoke detection system
The components on the board are to be protected against damage from
electrostatic charges.
Proceed as follows to insert the TITANUS MICRO·SENS
®
in the device
base unit:
1
Put the device in the pre-mounted device base. When inserting
the detection unit, note the mechanical coding, this protects the
device against twisting.
2
Screw the four screws on the detection unit down tight using a
screwdriver.
ATTENTION

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
