WAGNER TITANUS User Manual

Commissioning TITANUS MICRO·SENS
®
7 – 18 Data: 01/09 MS_A_07-en-e
The aspiration point for which the transport time is to be determined is
now selected by clicking. For each aspiration point selected, the
pre-selected time required for reaching the aspiration point and providing
the smoke must be entered. When the pre-selected time has lapsed, the
particular smoke detection point must be charged with smoke. There
must be smoke at the aspiration point for another 10 to 15 seconds after
the pre-selected time has lapsed.
Before starting to determine the transport time, check by using a bar
graph (smoke level) that there is no smoke in the aspiration pipe.
?

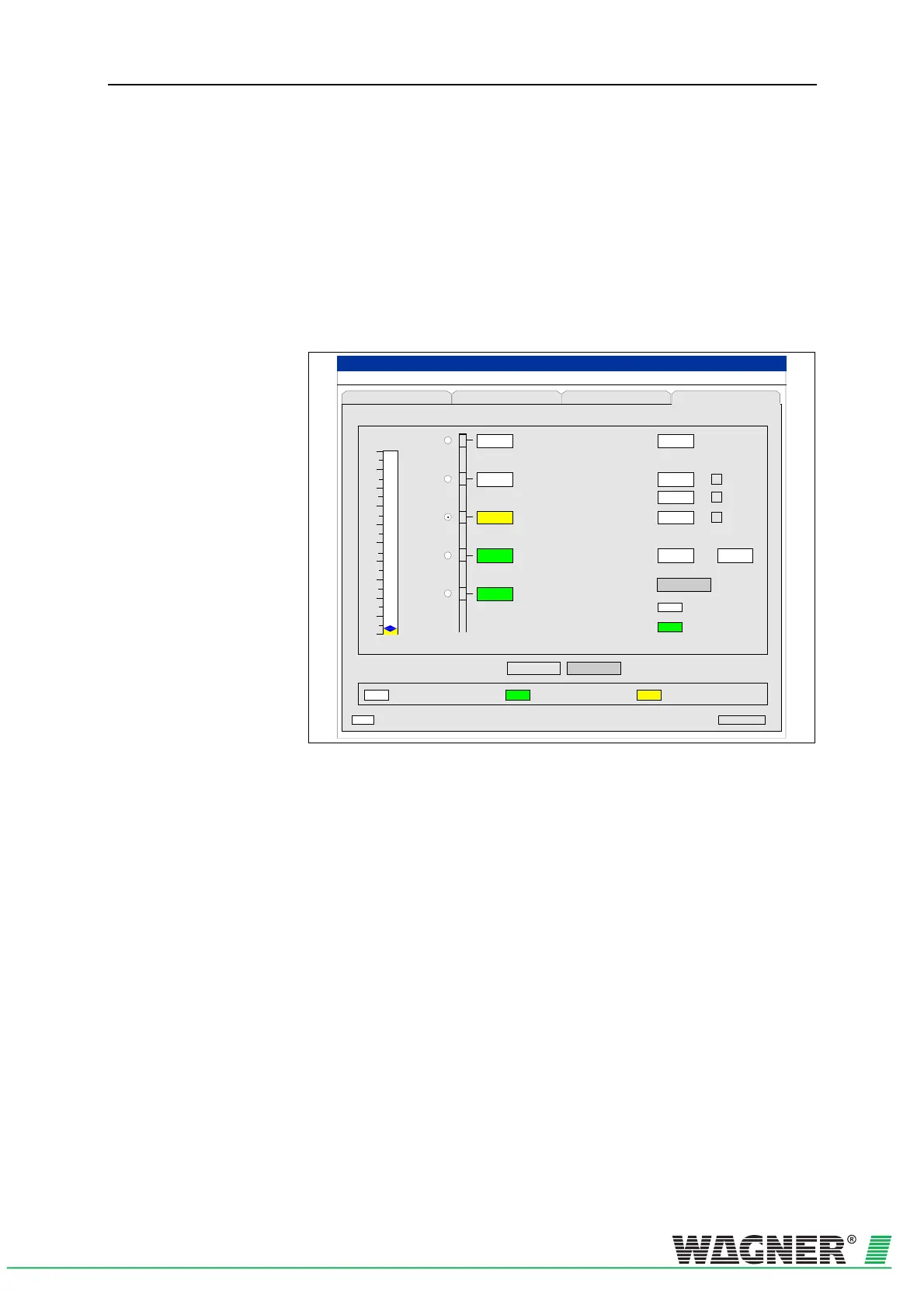

TITANUS
MICRO · SENS
®
Assume
10
9
8
7
6
5
4
3
2
1
0
s50,0
s40,0
s
s
s
18,4
21,4
15,5
E
D
C
B
A
min s
030
Start
00000
5
s60,0
V
12,0
V
13,5
?
?
?
Smoke level
File Record Settings Device-Selection
(Date Time)
Fault messagesStatus Settings ROOM-IDENT
Reception Serial No.
Transp. time not established Transport time established Transport time invalid
Amount of aspiration points
Pre selection time
Measuring active
Training mode active
Establish transport time
Blow out time
Intake f an
Blow out fan
Cancel
After starting to determine the transport time, the learn mode is active
and
TITANUS MICRO·SENS
®
switches to blowing out the aspiration pipe.
The display for the aspiration point in question is yellow.
After the pre-selected time has lapsed, the
TITANUS MICRO·SENS
®
switches to aspirate. At this point, there must be smoke at the aspiration
point selected.
If the
TITANUS MICRO·SENS
®
detects the smoke, the smoke level
indicates this. The display for the aspiration point selected goes green
and the time determined is entered.
The learn mode for the aspiration point selected is thereby closed.

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
