TITANUS MICRO·SENS
®
Pipe Design
MS_A_04-en-e Data: 01/09 4 – 5
T
I
T
A
N
U
S
T
I
T
A
N
U
S
T
I
T
A
N
U
S

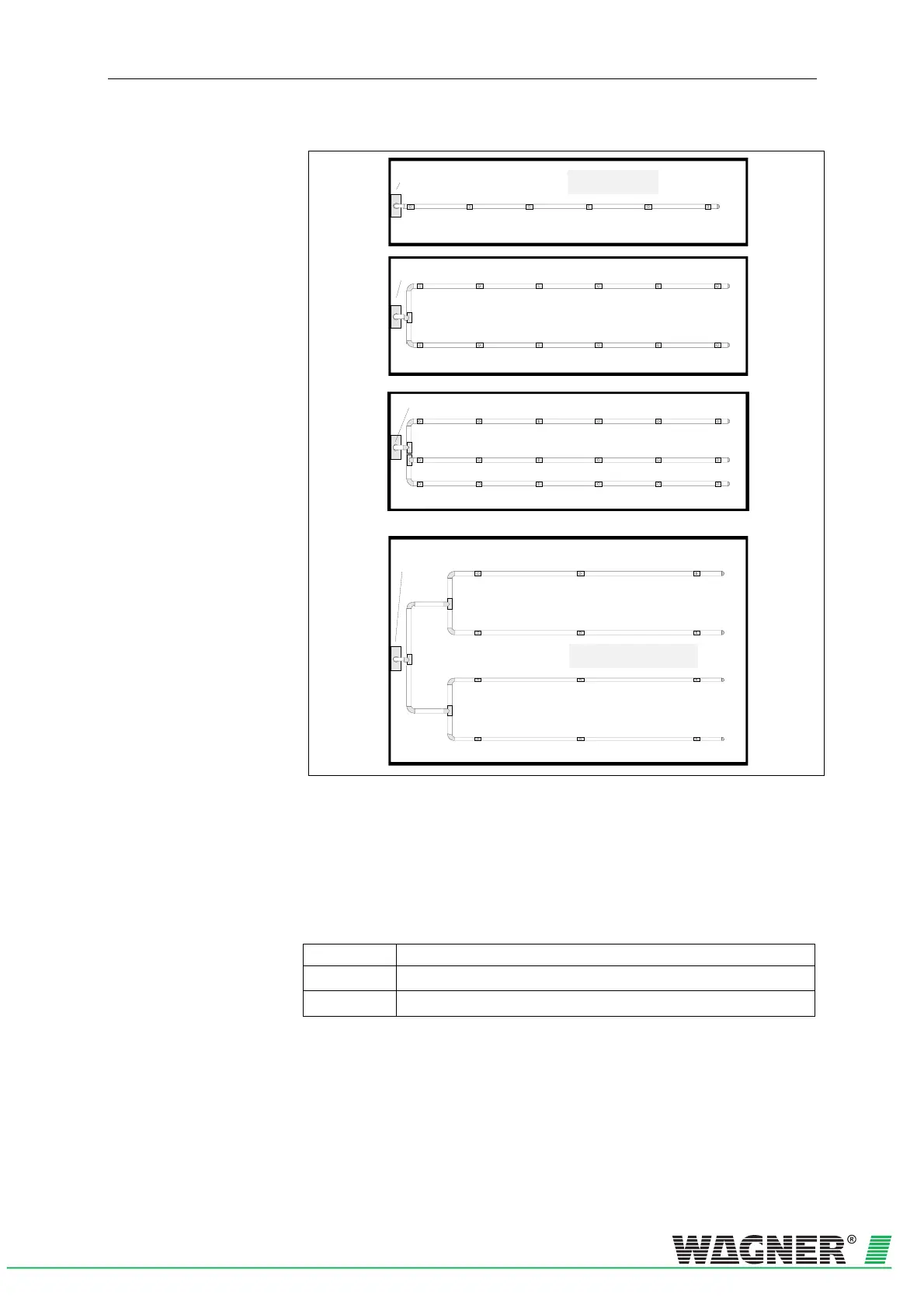

U-pipe system
Double-U-pipe system
I-pipe system
®
®
®
TITANUS
®
M-pipe system
Fig. 4.2: Pipe designs
Direction change Angles and bends in the pipe system increase flow resistance. For that
reason, it is necessary to limit the number of them to the amount re-
quired.
It is preferable to use bends, since angles have a higher flow resistance.
Angles should therefore only be used where they are necessary due to
structural constraints.
Corresponds to a straight pipe length of
Angle 1.5m
Bend 0.3m
If the pipe system includes angles or bends, the maximum overall length
of the pipe system will be reduced.
