Setting up the instrument automatically 3-15

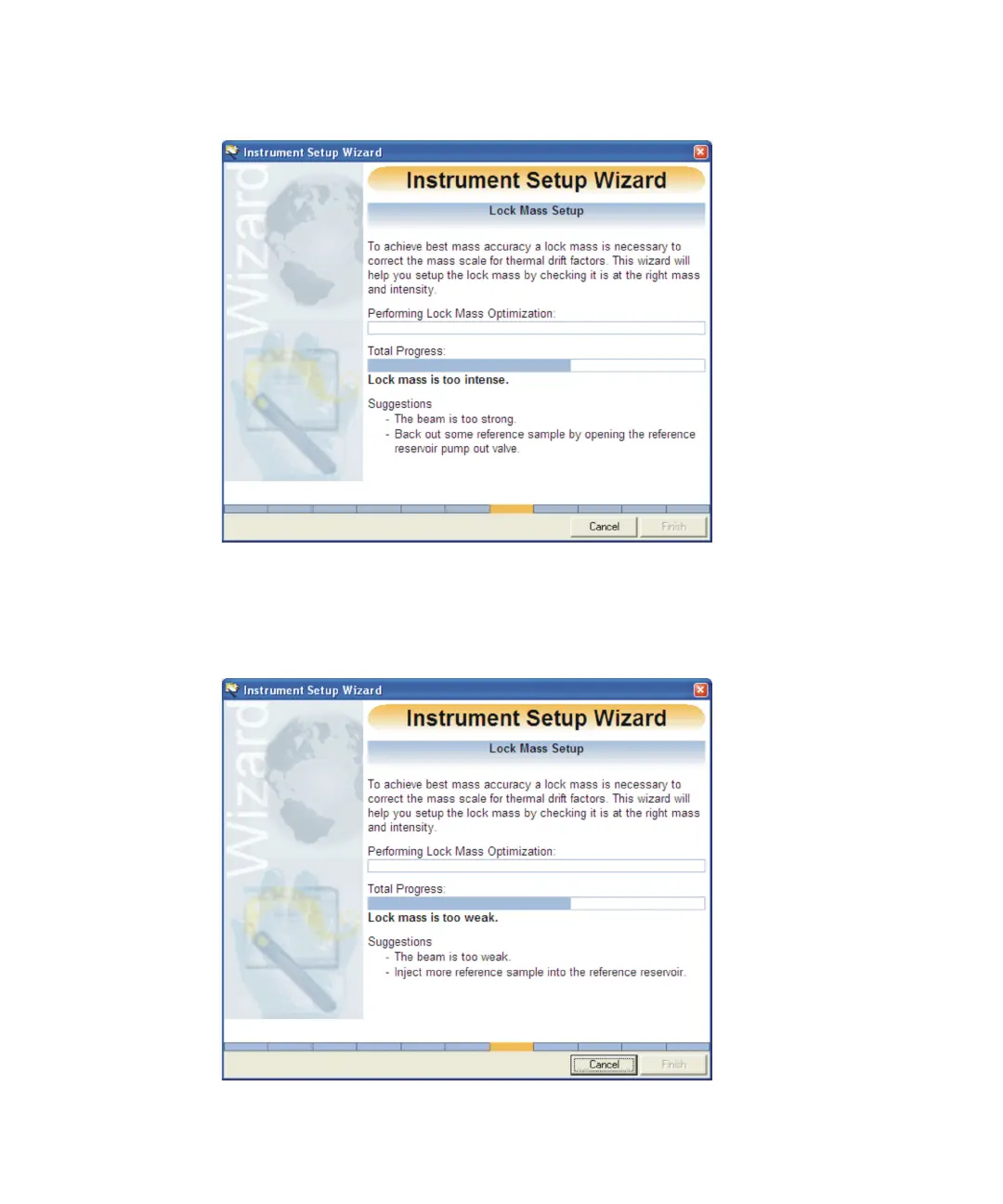

Lock Mass is too intense:

If the Lock Mass is too low, inject more reference sample into the

reference reservoir to increase the intensity of the signal.

Lock Mass is too weak:
