ENGINE
M6060, M7060, WSM
1-S49

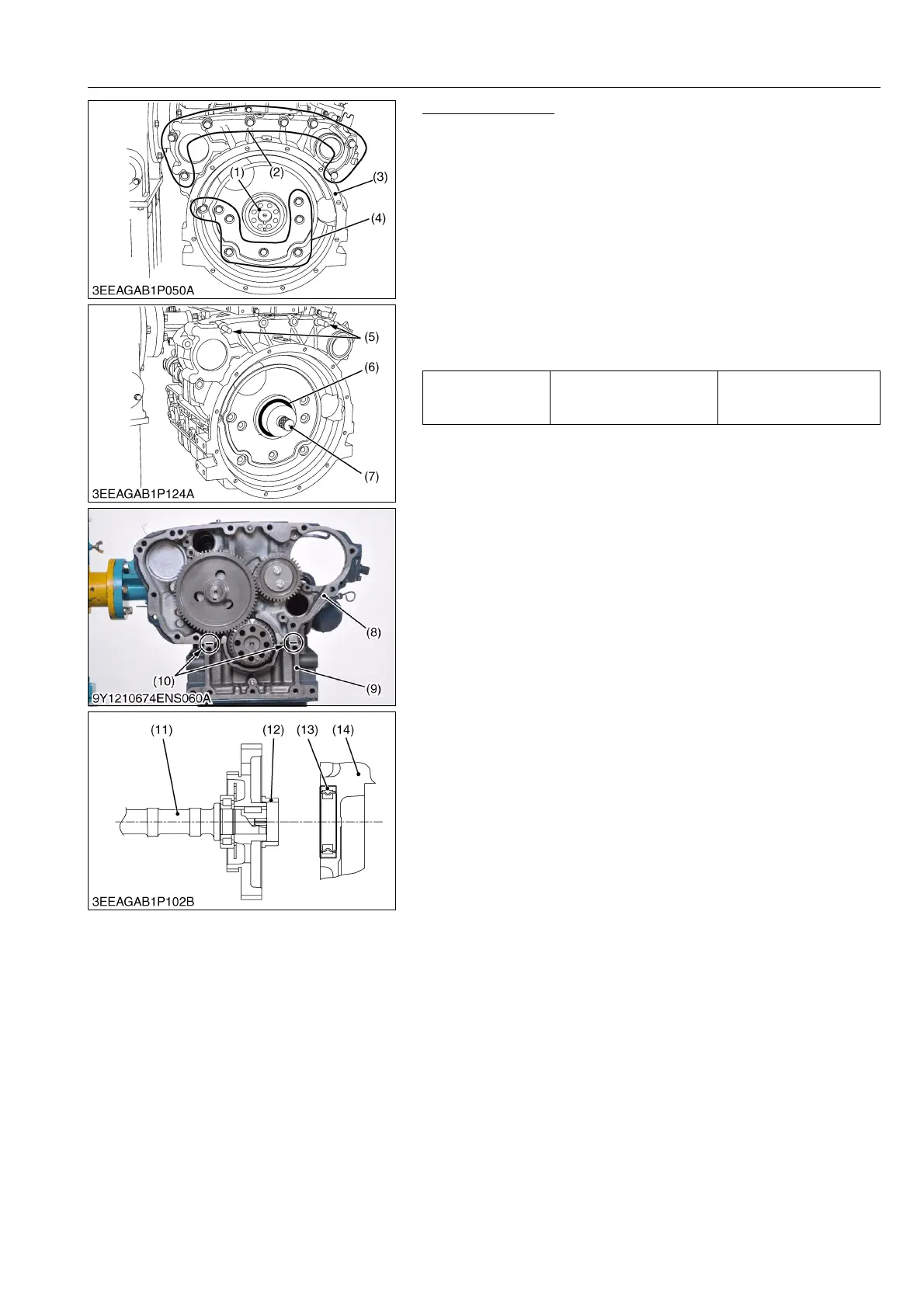

Flywheel Housing
1. Remove the outside flywheel housing mounting screws (2).
2. Remove the inside flywheel housing mounting screws (4).
3. Remove the flywheel housing (3).
(When reassembling)
• Apply engine oil to the flywheel housing oil seal (6).
• Set the flywheel guide screw (5) and the flywheel housing guide
jig (7) to the crankshaft gear (1). (See page G-60.)
• Apply a liquid gasket (Three Bond 1217H or equivalent) (10) to
the seam between crankcase 1 (8) and crankcase 2 (9).
• Assemble the adhesive-applied parts within ten minutes.
For Side PTO Model (Option)
• Install the inside roller bearing (12) of the camshaft (11) in the
outside roller bearing (13) of the flywheel housing (14).
9Y1210828ENS0068US0
Tightening torque
Flywheel housing mounting
screw (9T)
103 to 117 N·m
10.5 to 12.0 kgf·m
76.0 to 86.7 lbf·ft
(1) Crankshaft Gear
(2) Flywheel Housing Mounting Screw
(Outside) (9T)
(3) Flywheel Housing
(4) Flywheel Housing Mounting Screw
(Inside) (9T)
(5) Flywheel Guide Screw
(6) Oil Seal
(7) Jig
(8) Crankcase 1
(9) Crankcase 2
(10) Liquid Gasket
(11) Camshaft
(12) Roller Bearing (Inside)
(13) Roller Bearing (Outside)
(14) Flywheel Housing
To Next Page
