ENGINE
M6060, M7060, WSM
1-S74

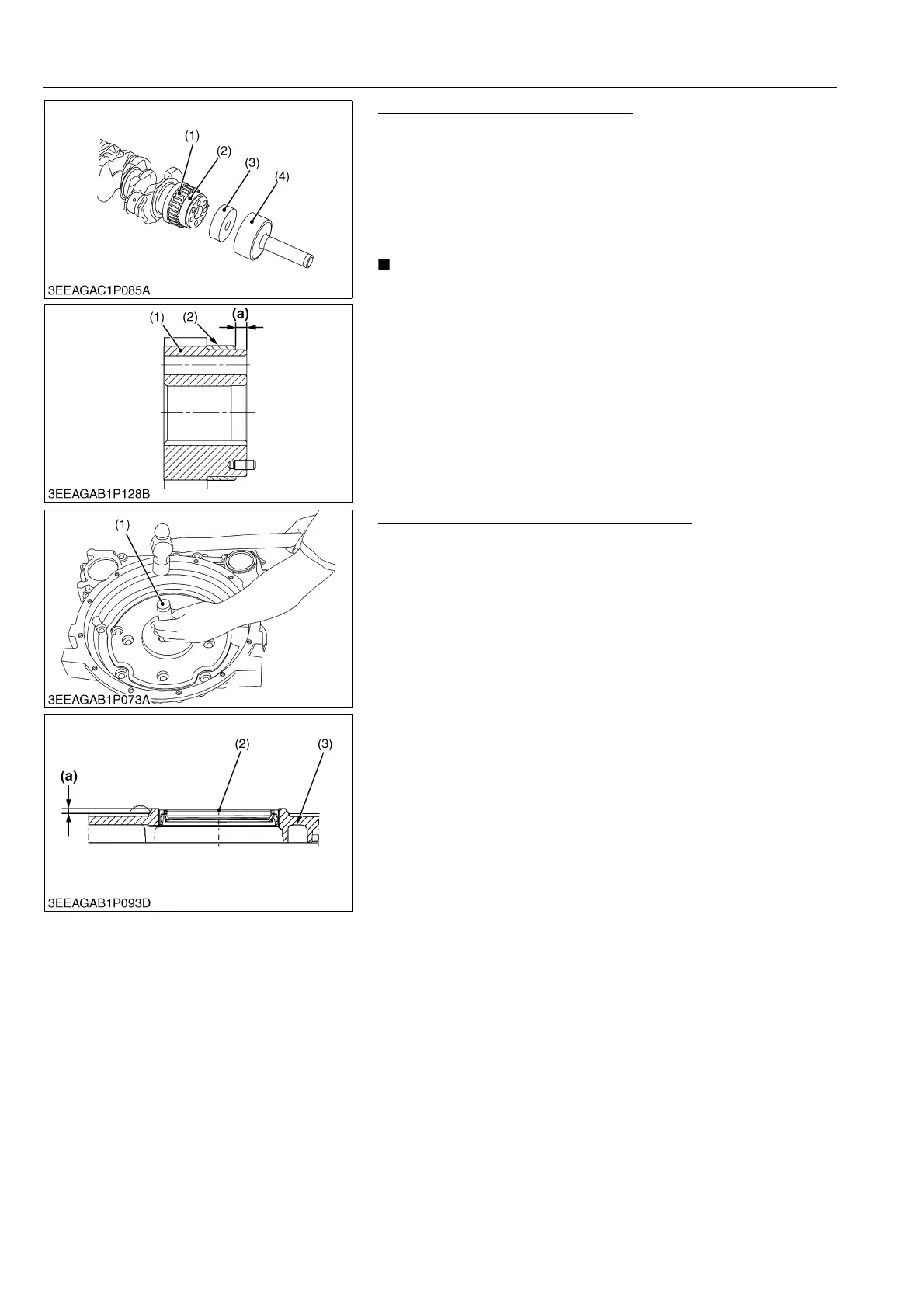

Replacement of Crankshaft Sleeve
1. Remove the used crankshaft sleeve (2).
2. Set the sleeve guide (3) to the crankshaft (1).
3. Increase the temperature of a new sleeve to between 150 and
200 °C (302 and 392 °F).
4. Set the sleeve to the crankshaft as shown in figure.
5. Press fit the sleeve using the crankshaft sleeve replacing tool
(4). (See page G-58.)
• Make sure that the large chamfer of the sleeve points to
outward.
• Keep the space (a) between the edge of the crankshaft gear
(1) and the crankshaft sleeve (2).
• Be sure to place the seal when reassembling.
9Y1210828ENS0115US0
Replacement of Flywheel Housing Oil Seal
1. Remove the used oil seal (2).
2. Clean the new flywheel housing oil seal (2) and apply engine oil
to it.
3. Install the new oil seal (2) to the specific position using the
flywheel housing oil seal replacing tool (1). (See page G-56.)
9Y1210828ENS0116US0
(1) Crankshaft Gear
(2) Crankshaft Sleeve
(3) Sleeve Guide
(4) Crankshaft Sleeve Replacing Tool
(a) More than 6.5 mm (0.26 in.)
(1) Flywheel Housing Oil Seal
Replacing Tool
(2) Oil Seal
(3) Flywheel Housing
(a) 1.0 mm (0.039 in.)
To Next Page
