ENGINE
M6060, M7060, WSM
1-S75
Replacement of Front Cover Oil Seal
1. Remove the used front cover oil seal (2).
2. Clean a new front cover oil seal (2) and apply engine oil to it.
3. Install the new oil seal (2) using the front cover oil seal replacing
tool (1). (See page G-55.)
9Y1210828ENS0117US0
Replacement of Camshaft Position Sensor Bushing
(When removing)
1. Press out the used bushing using a camshaft position sensor
bushing replacing tool. (See page G-61.)
(When installing)
1. Clean a new camshaft position sensor bushing and bore.
2. Apply Loctite 962T or Three Bond 1386B to new camshaft
position sensor bushing.
3. Insert a new bushing onto the tool.
4. Press-fit the new bushing with the replacing tool. Make sure that
the bushing end aligns the end of the crankcase.
• Keep the space (b) between the edge of the crankcase (1)
and the camshaft position sensor bushing (2).
9Y1210828ENS0118US0

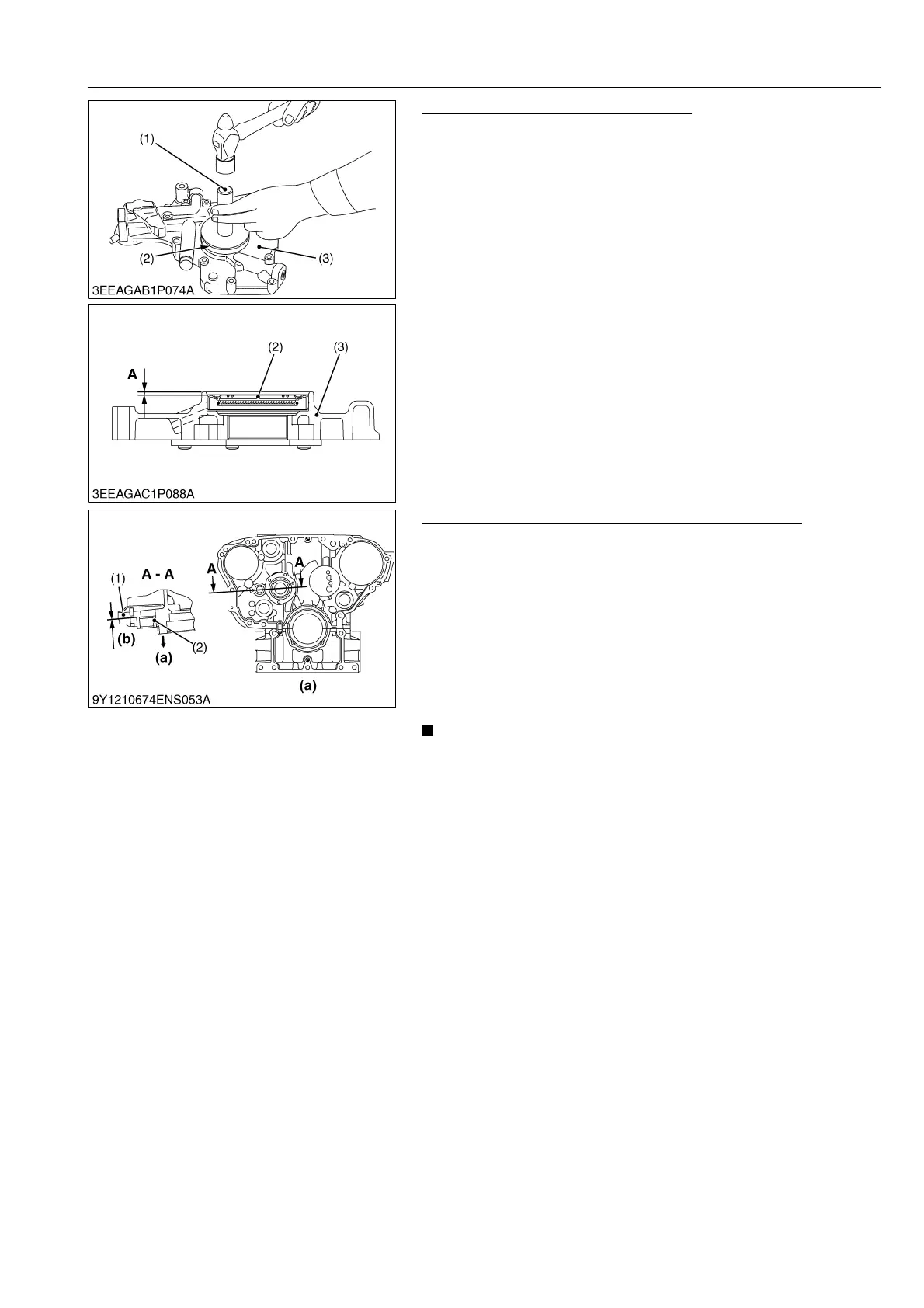

(1) Front Cover Oil Seal Replacing Tool
(2) Oil Seal
(3) Front Cover
A : 2.0 mm (0.079 in.)
(1) Crankcase
(2) Camshaft Position Sensor Bushing
(a) Flywheel Side
(b) 0.1 to 0.6 mm (0.004 to 0.02 in.)
