Yamaha F150B - Page 239

7-26

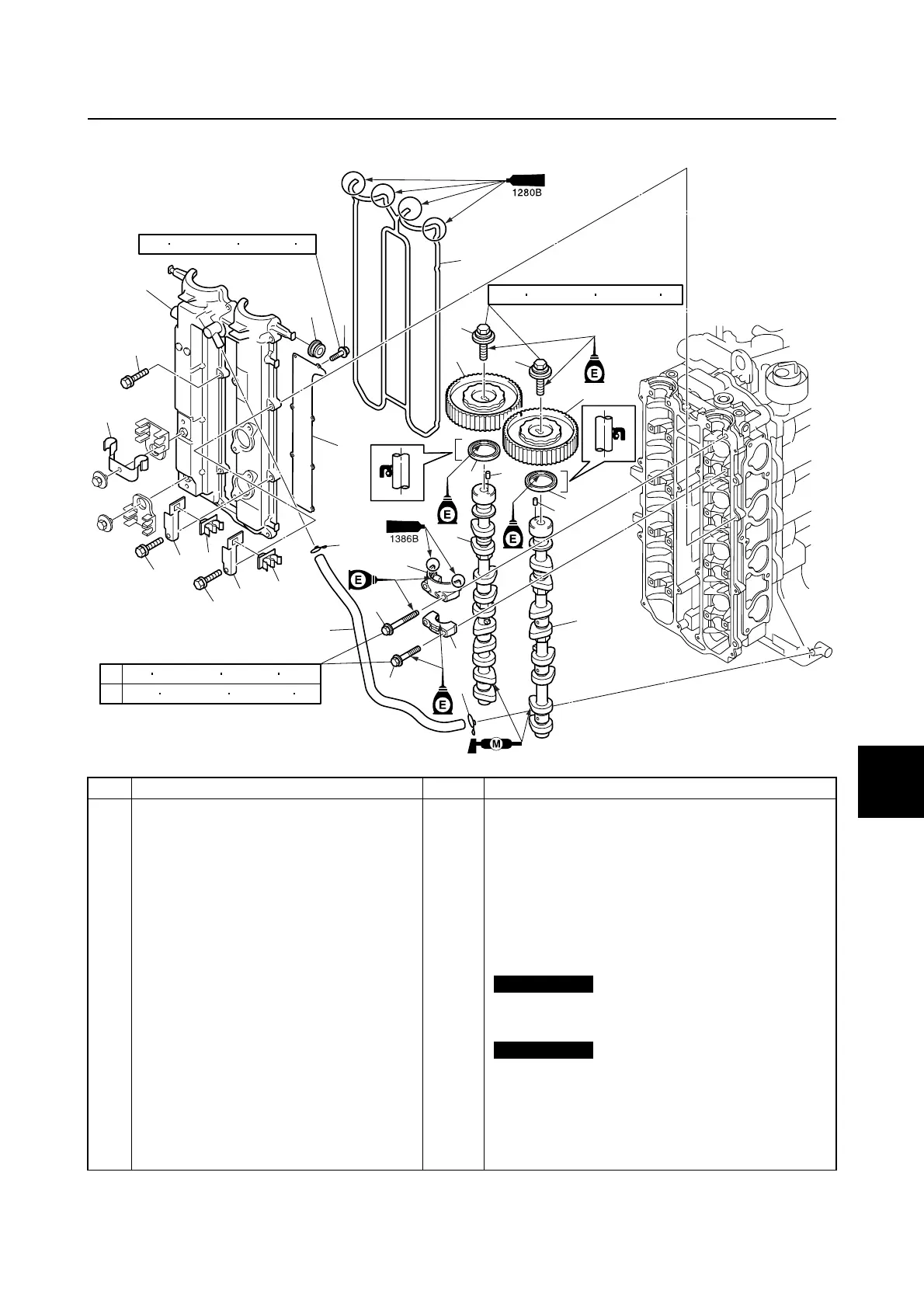

Camshaft
0
1
2
3
4
5
6
7
8
9
10
A
Camshaft
No. Part name Q’ty Remarks
1 Cylinder head cover 1
2Grommet 5
3Screw 8 M4 × 8mm
4Plate 1
5 Holder 2
6 Bracket 2
7Bolt 15 M6 × 30 mm
8 Holder 1
9Gasket 1
Not reusable
10 Bolt 2 M10 × 35 mm
11 Driven sprocket 2
12 Oil seal 2
Not reusable
13 Dowel 2
14 Camshaft cap 2
15 Bolt 4 M7 × 48 mm
16 Camshaft cap 8
17 Bolt 16 M7 × 37 mm
4
1
2
3
5
6
7
7
6
7
8
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
20
20
21
2 N m (0.2 kgf m, 1.5 ft lb)
a
b
8 N m (0.8 kgf m, 5.9 ft lb)
17 N
m (1.7 kgf m, 12.5 ft lb)
60 N m (6.0 kgf m, 44.3 ft lb)
5
Power unit assembly / Camshaft
