Water pump and shift rod (regular rotation model)
0
1
2
3
4
5
6
7
8
9
10
A

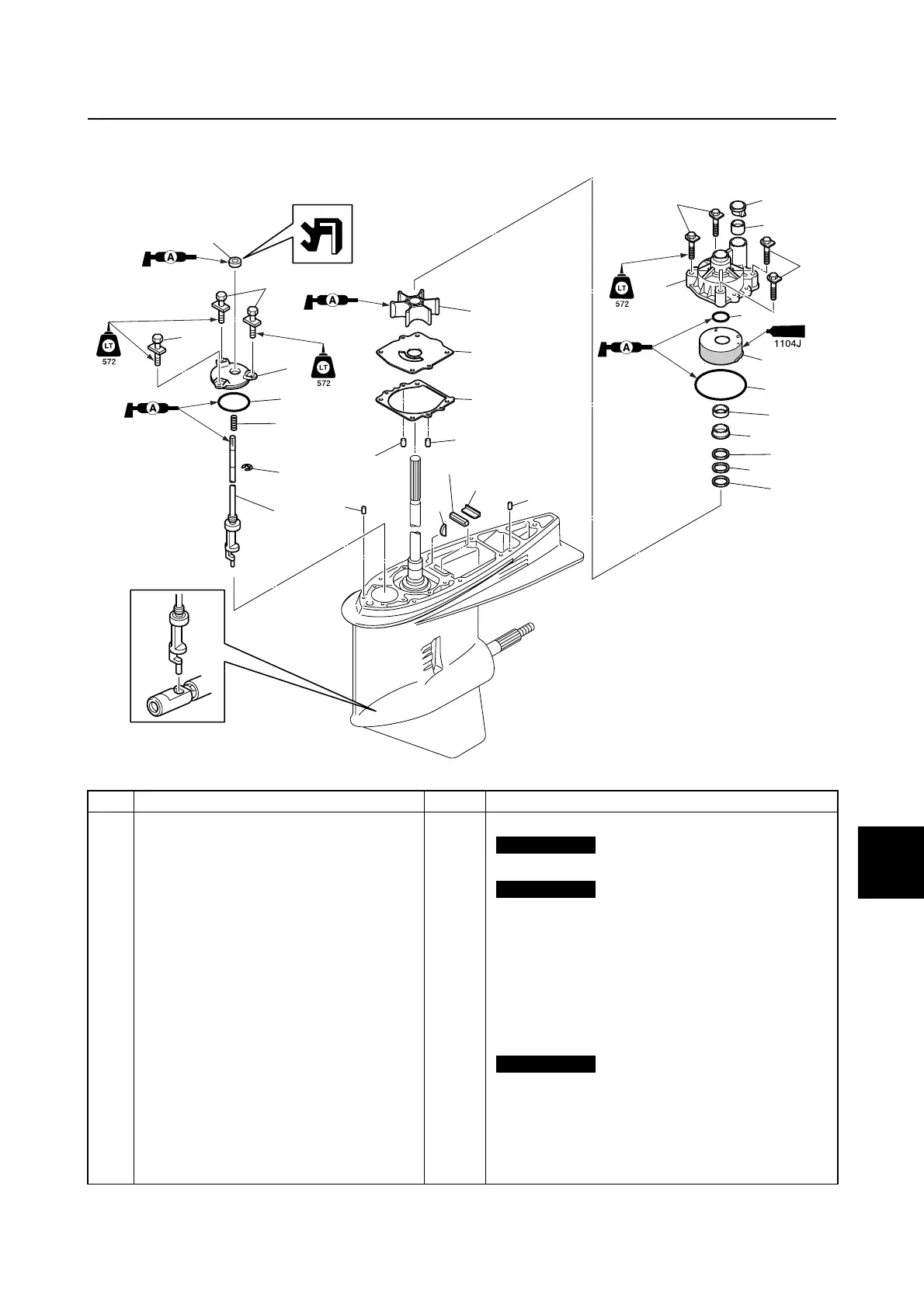

Water pump and shift rod (regular rotation model)
No. Part name Q’ty Remarks
1Bolt 3 M6 × 20 mm
2 Oil seal 1
Not reusable
3 Oil seal housing 1
4O-ring 1
Not reusable
5Spring 1
6 Circlip 1
7 Shift rod 1
8Dowel 2
9Dowel 2
10 Impeller 1
11 Outer plate cartridge 1
12 Gasket 1
Not reusable
13 Woodruff key 1
14 Rubber seal 1
15 Plate 1
16 Water pump housing 1
17 Bolt 4 M8 × 45 mm
18
19
17
17
16
20
21
22
23
24
26
8
13
8
9
9
12
11
10
7
6
5
4
3
1
2
1
14
15
25
25
