YOKOGAWA WT500 User Manual

4-17
IM 760201-01E
Measurement Conditions
3
2
1
4
5
6
7
8
9
10
11
12
13
14
App
Index

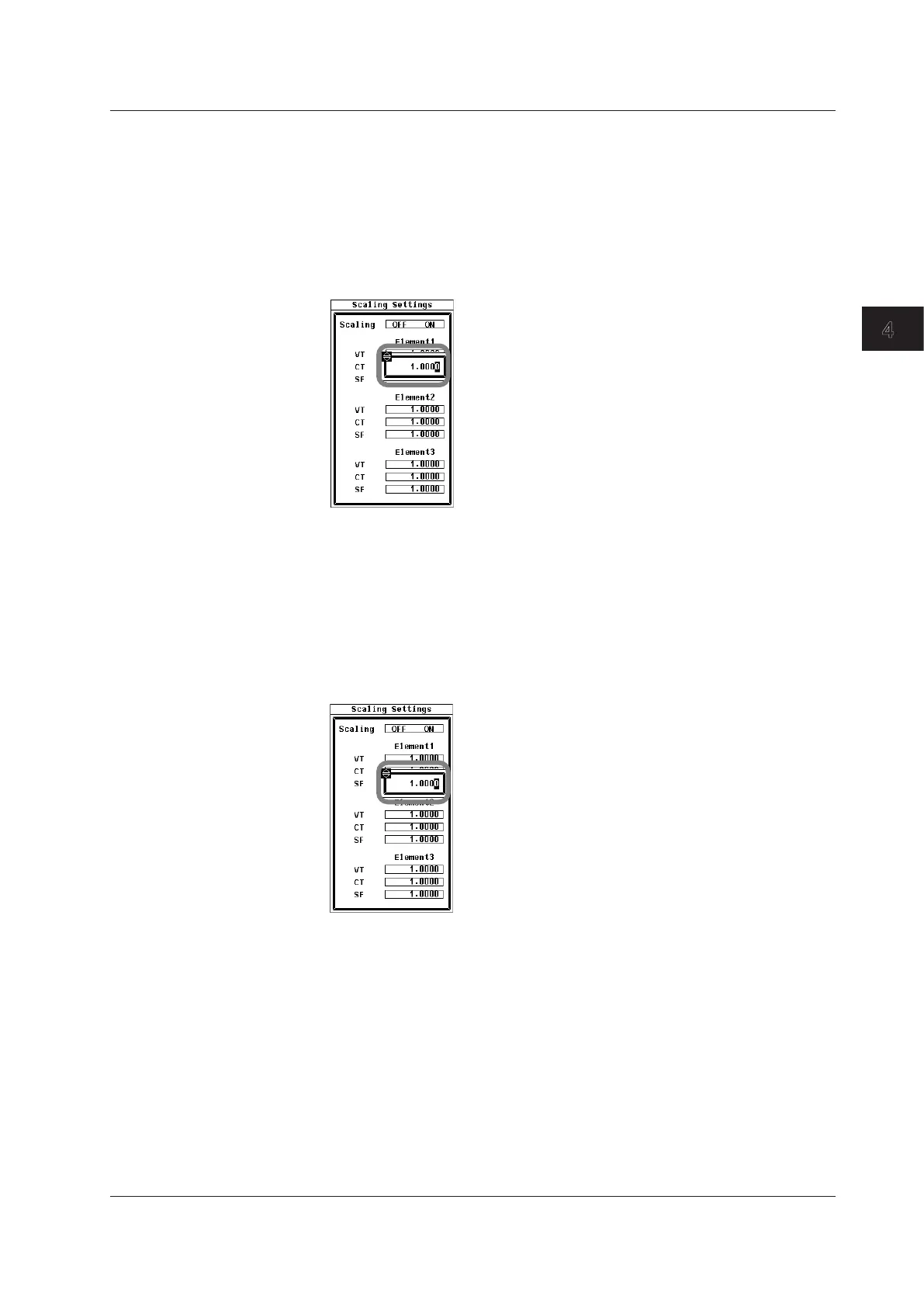

Setting the CT Ratio
6.
Use the cursor keys to select the CT of the element that you want to set the CT
ratio of.
7.
Press SET to display the CT ratio entry box.
8.
Use the cursor keys to set the CT ratio.
9.
Press SET or ESC to close the CT ratio entry box.
10.
Repeat steps 6 to 9 to enter the CT ratios for all of the elements.
Setting the Power Factor (SF)
6.
Use the cursor keys to select the power factor of the element that you want to
set the SF (Scaling Factor) of.
7.
Press SET to display the power factor entry box.
8.
Use the cursor keys to set the power factor.
9.
Press SET or ESC to close the power factor entry box.
10.
Repeat steps 6 to 9 to enter the power factors for all of the elements.
4.6 Setting the Scaling Feature When Using a VT or CT
