5-13
IM 760201-01E
Power Measurement
3
2
1
4
5
6
7
8
9
10
11
12
13
14
App
Index
5.5 Selecting a Phase Difference Display Format

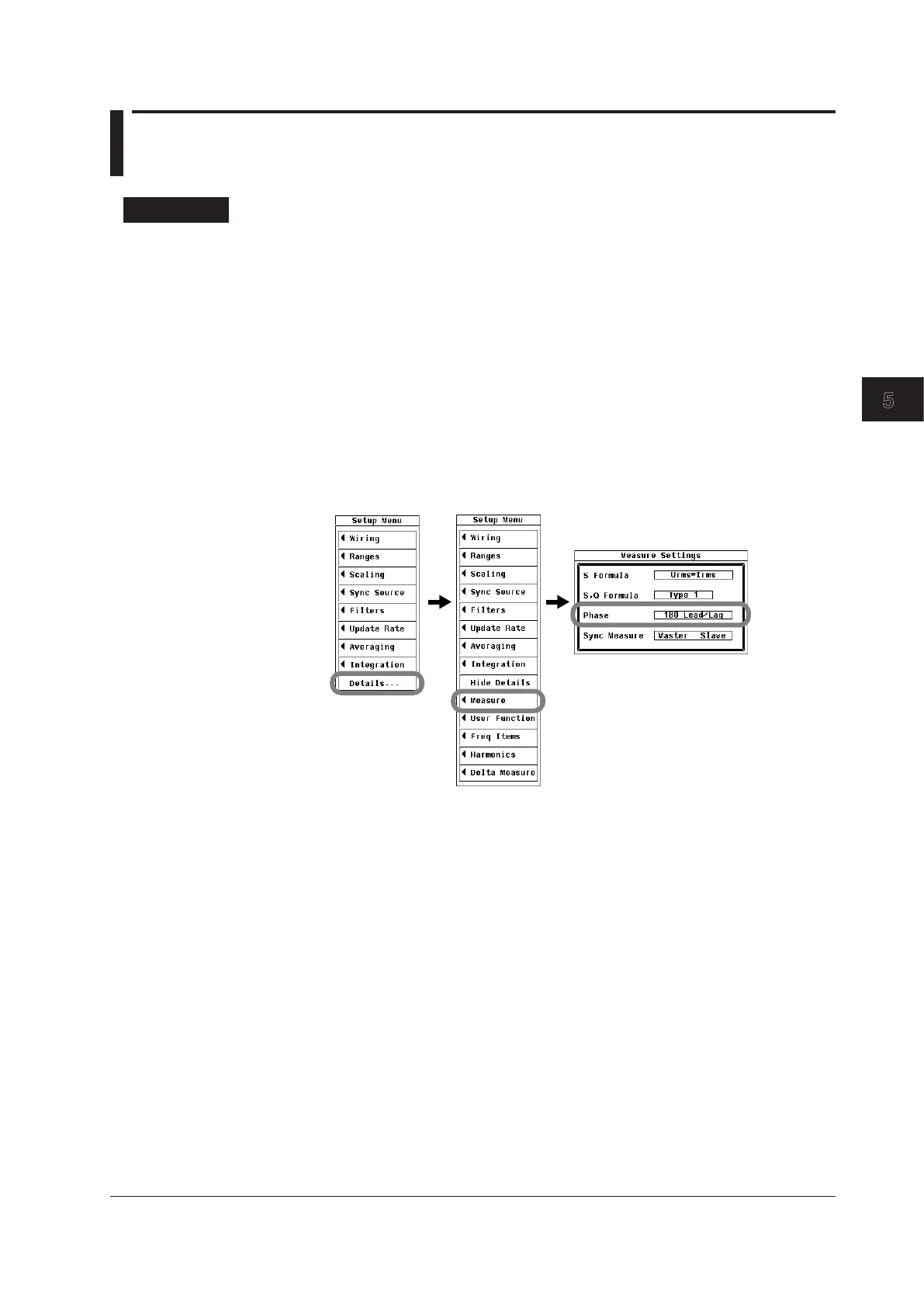

Procedure
1.
Press SETUP to display the Setup menu.
If the full Setup menu does not appear, proceed to step 2. If the full Setup menu appears,
proceed to step 4.
2.
Use the cursor keys to select Details.
3.
Press SET to display the full Setup menu.
4.
Use the cursor keys to select Measure.
5.
Press SET to display the Measure Settings dialog box.
6.
Use the cursor keys to select Phase.
7.
Press SET to display the phase difference display format selection box.
8.
Use the cursor keys to set the phase difference display format to 180 Lead/Lag
or to 360 degrees.
9.
Press SET to confirm the format selection.
