8-11
IM 760201-01E
Trend Display
3
2
1
4
5
6
7
8
9
10
11
12
13
14
App
Index

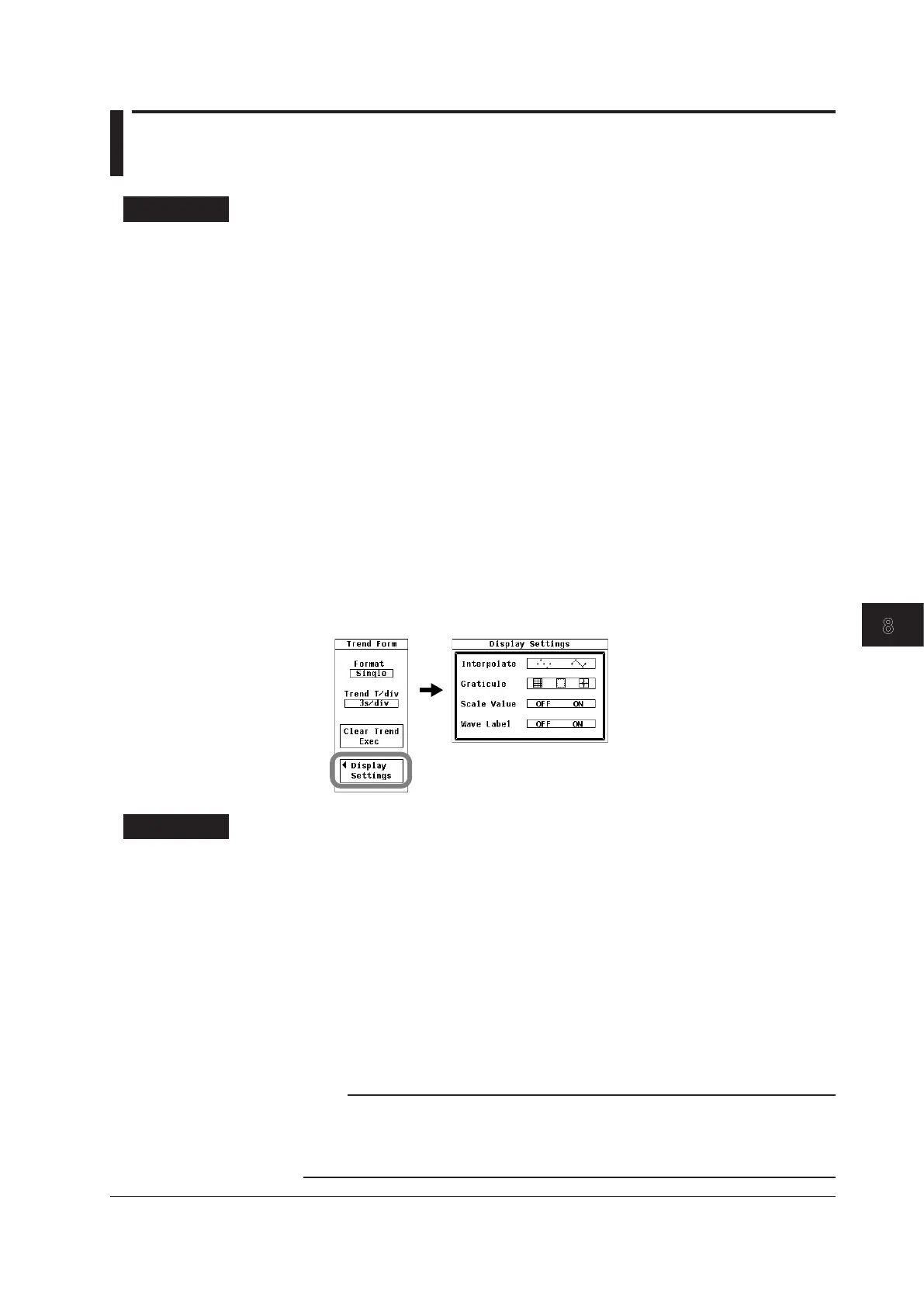

8.8 Selecting a Graticule and Turning Interpolation,
Scale Value Display, and Wave Labels On or Off
Procedure
1.
Press FORM to display the Trend Form menu.
2.
Use the cursor keys to select Display Settings.
3.
Press SET to display the Display Settings menu.
Selecting Whether or Not to Use Interpolation
4.
See the instructions in “Selecting Whether or Not to Use Interpolation” in section
7.8.
Changing the Graticule
4.
See the instructions in “Changing the Graticule” in section 7.8.
Selecting Whether or Not to Display the Scale Values
4.
See the instructions in “Selecting Whether or Not to Display the Scale Values” in
section 7.8.
Selecting Whether or Not to Display Waveform Labels
4.
See the instructions in “Selecting Whether or Not to Display Waveform Labels” in
section 7.8.
Explanation
Selecting Whether or Not to Use Interpolation
See the explanation “Selecting Whether or Not to Use Interpolation” in section 7.8.
Changing the Graticule
See the explanation in “Changing the Graticule” in section 7.8.
Turning the Display of the Scale Values On or Off
See the explanation in “Turning the Display of the Scale Values On or Off” in section 7.8.
Turning the Display of Waveform Labels On or Off
See the explanation in “Turning the Display of Waveform Labels On or Off” in section 7.8.
Note
The settings in this section are the same as the waveform display settings (see chapter 7
for details). If you change these settings in the trend display, the settings also change in the
waveform display. For example, if you set the display of the scale values to OFF in the trend
display, the display of the scale values will also be set to OFF in the waveform display.
