YOKOGAWA WT500 User Manual

8-13
IM 760201-01E
Trend Display
3
2
1
4
5
6
7
8
9
10
11
12
13
14
App
Index

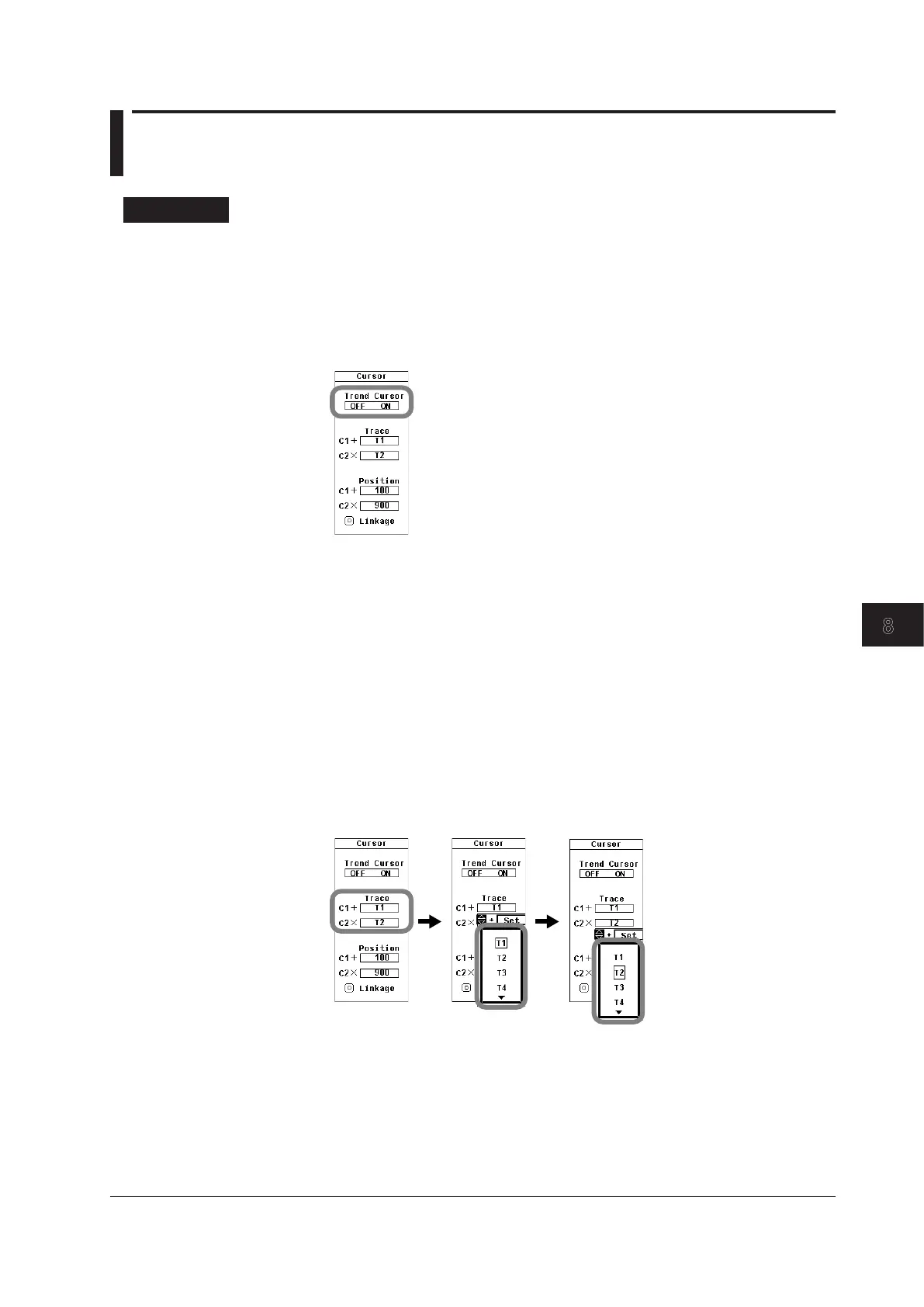

8.10 Measuring with Cursors
Procedure
1.
Press SHIFT+FORM (CURSOR). The Cursor menu appears.
Selecting Whether or Not to Use Cursor Measurement
2.
Use the cursor keys to select Trend Cursor.
3.
Press SET to select ON or OFF.
If you select ON, the results of cursor measurement are displayed.
Selecting the Trends to Measure Using Cursors
• Selecting the Trend to Measure Using Cursor +
4.
Use the cursor keys to select C1+ under Trace.
5.
Press SET to display the trend selection box.
6.
Use the cursor keys to select one of the trends from T1 to T8.
7.
Press SET to confirm the trend selection.
• Selecting the Trend to Measure Using Cursor x
4.
Use the cursor keys to select C2x under Trace.
5.
Press SET to display the trend selection box.
6.
Use the cursor keys to select one of the trends from T1 to T8.
7.
Press SET to confirm the trend selection.
