8-10
IM 760201-01E
8.7 Displaying Trends in Split Screens
Procedure
1.

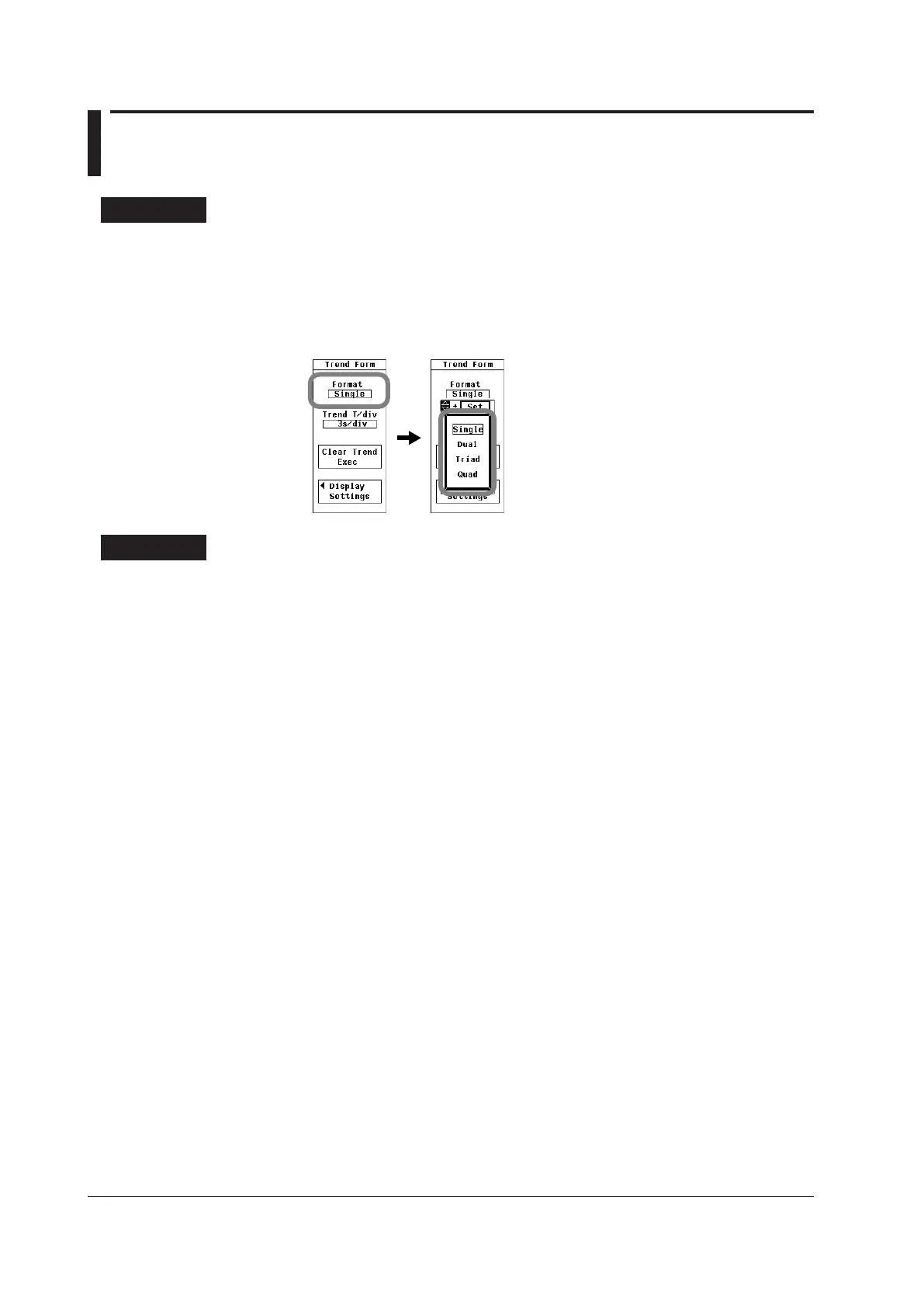

Press FORM to display the Trend Form menu.
2.
Use the cursor keys to select Format.
3.
Press SET to display the split screen number selection box.
4.
Use the cursor keys to select the number of split screens.
5.
Press SET to confirm the selection.
Explanation
You can assign trends to different split screens.
Selecting the Number of Split Screens
You can choose the number of split screens from one of the options listed below. The
options are the same as those available in the waveform display (see section 7.7 for
details).
•
Single: The screen is not split.
• Dual: Two split screens
• Triad: Three split screens
• Quad: Four split screens
Depending on the number of split screens, the number of displayed points in each screen
changes as described below.
Single: 432 points, Dual: 216 points,
Triad: 144 points, Quad: 108 points
Methods for Assigning Waveforms to Screens
Trends whose displays are turned on (see section 8.3 for details) are assigned in
numeric order (T1 to T8) to the split screens. The assignment method corresponds to the
Auto option in the waveform display.
To Next Page
