5-20
IM 760201-01E
5.7

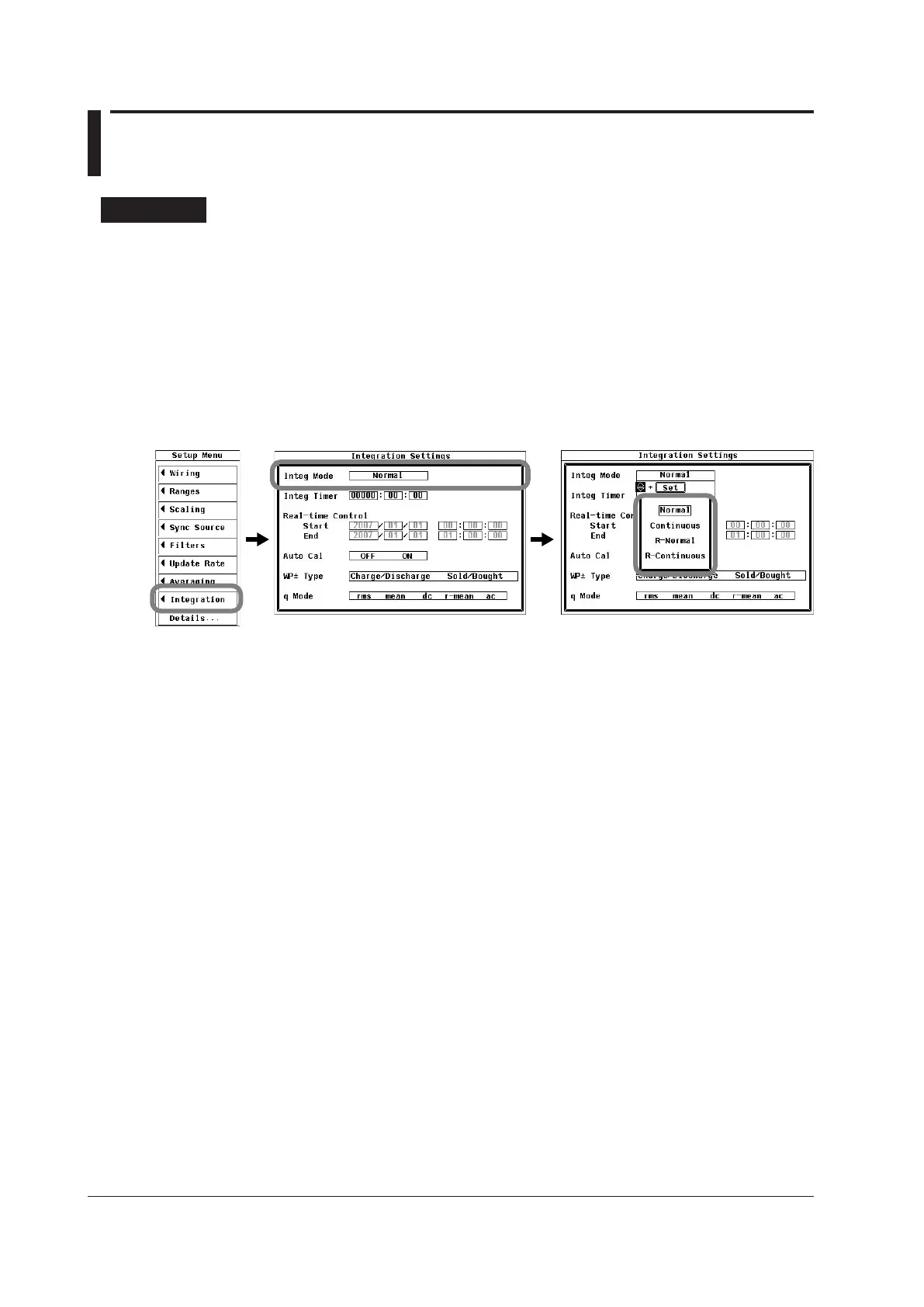

Setting Manual Integration
Procedure
1.
Press
SETUP
to display the Setup menu.
2.
Use the
cursor keys
to select Integration.
3.
Press
SET
to display the Integration Settings menu.
Selecting Normal Integration Mode
4.
Use the
cursor keys
to select Integ Mode.
5.
Press
SET
to display the integration mode selection box.
6.
Use the
cursor keys
to select Normal.
7.
Press
SET
to confirm the selection.
