7.5 Setting the Trigger

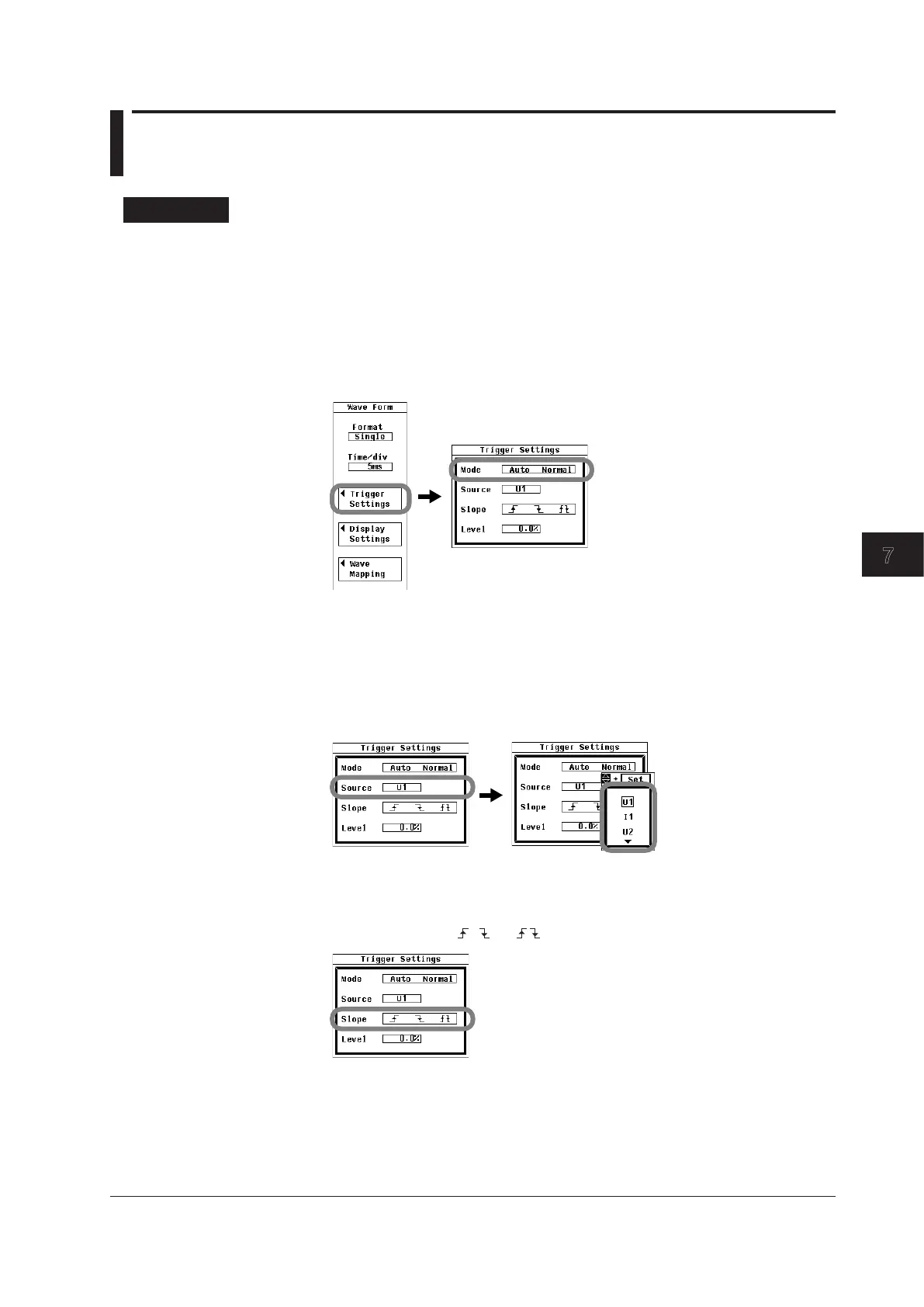

Procedure
1.
Press FORM to display the Wave Form menu.
2.
Use the cursor keys to select Trigger Settings.
3.
Press SET to display the Trigger Settings menu.
Selecting a Trigger Mode
4.
Use the cursor keys to select Mode.
5.
Press SET to select Auto or Normal.
Selecting a Trigger Source
4.
Use the cursor keys to select Source.
5.
Press SET to display the trigger source selection box.
6.
Use the cursor keys to select a waveform from the list (which starts with U1).
7.
Press SET to confirm the trigger source selection.
Selecting a Trigger Slope
4.
Use the cursor keys to select Slope.
5.
Press SET to select , , or .
