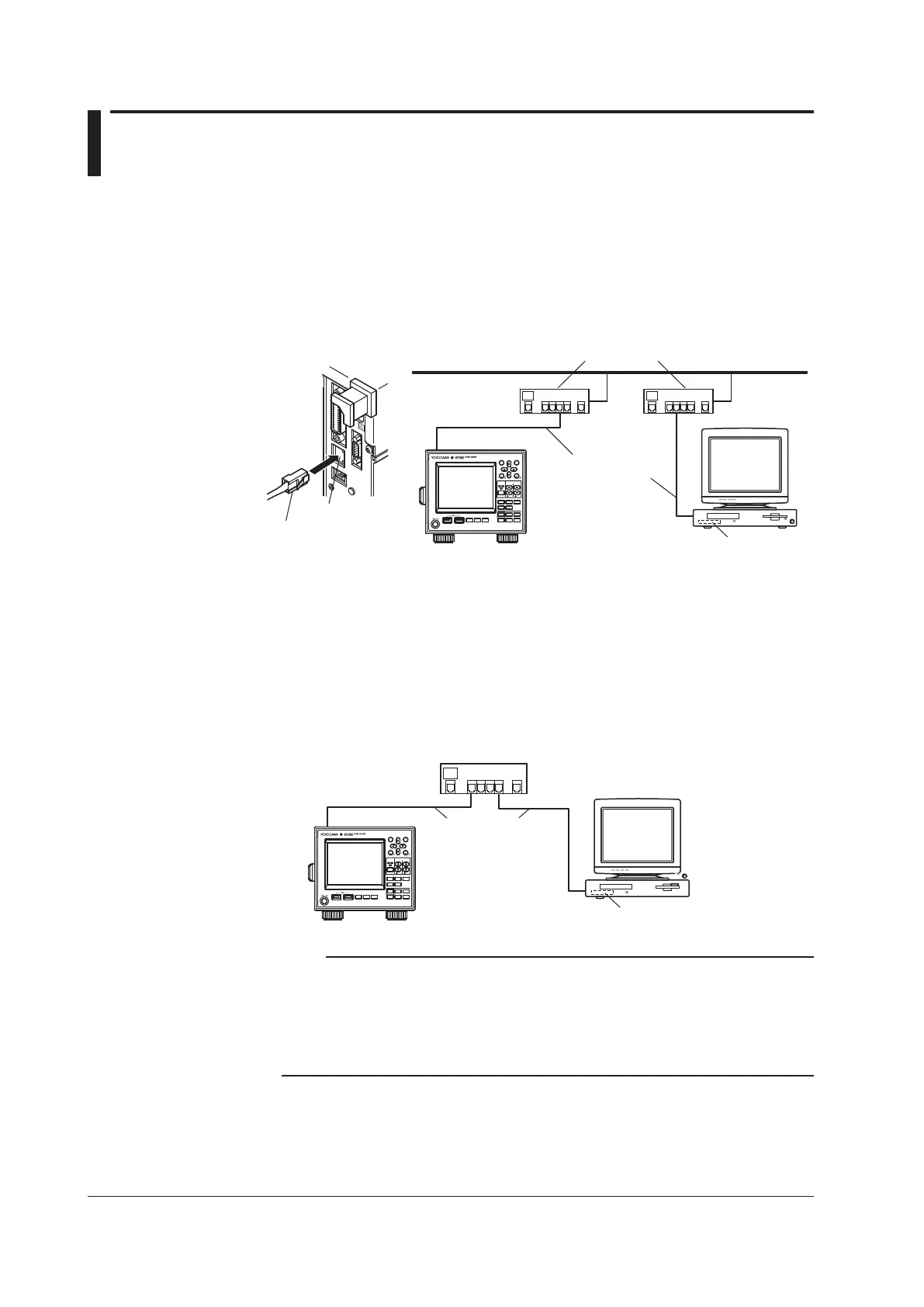

11.2 Connecting to a Network
To Connect to a PC over a Network
1.
Check that the WT500 power switch is off (see section 3.4 for details).
2.
Connect one end of a UTP (or STP) cable to the ETHERNET 100BASE-TX port
on the rear panel.
3.
Connect the other end of the UTP (or STP) cable to a hub or router.
4.
Turn the WT500 power switch on.
EXT. C LK
GP- IB
(
IEE E 488
)
LIN K/
ACT
100 LINK
ETH ERNE T 10 0BAS E-TX ONLY
USB
VID EO-OUT
(
VGA
)
PC
Hub or router that supports 100BASE-TX
Straight UTP cable
or STP cable
Network card
WT500
100BASE-TX port
RJ-45 modular jack
ESC
RESET
SET
CAL
PAGE
PAGE
ELEMENT
1
2
3
ELEMEN T
ALL
RANGE
VOLTAGE CURRENT
AUTO AUTO
DISPLAY
NUMERI C WAVE OTH ERS
FORM ITE M
CURSO R
INTEGRATOR
SETUP
INPUT I NFO
START/
STOP
RESET
HOLD
SINGLE
SHIFT
MISC
NULL
LOCAL
KEY LOCK
FILE IMAGE
MENU
STORE
STORE SE T
POWER
To Connect to a PC Through a Hub or Router
1.
Check that the WT500 power switch is off (see section 3.4 for details).
2.
Connect one end of a UTP (or STP) cable to the ETHERNET 100BASE-TX port
on the rear panel.
3.
Connect the other end of the UTP (or STP) cable to a hub or router.
4.
Connect the PC to the hub or router in the same way.
5.
Turn the power switch on (see section 3.4 for details).
PC
Straight UTP cable or
STP cable
Network card
WT500
ESC
RESET
SET
CAL
PAGE
PAGE
ELEMENT
1
2
3
ELEMEN T
ALL
RANGE
VOLTAGE CURRENT
AUTO AUTO
DISPLAY
NUMERI C WAVE OTH ERS
FORM ITE M
CURSO R
INTEGRATOR
SETUP
INPUT I NFO
START/
STOP
RESET
HOLD
SINGLE
SHIFT
MISC
NULL
LOCAL
KEY LOCK
FILE IMAGE
MENU
STORE
STORE SE T
POWER
Hub or router that supports 100BASE-TX
Note
• If you connect the WT500 to a PC through a hub or router, the PC should have a 10BASE-
T/100BASE-TX auto switching NIC or a 100BASE-TX NIC.
• Use straight UTP (unshielded twisted pair) or STP (shielded twisted pair) cables that are
category 5 or better.
• Do not connect the WT500 to a PC directly. Direct communication without a hub or router is
not guaranteed to work.
To Next Page
