Measurement Functions Used in Normal Measurement
Displayed Measurement Function Symbols and Their Meanings
U (voltage Urms, Umn, Udc, Urmn, Uac) I (Current Irms, Imn, Idc, Irmn, Iac)
P (active power) S (apparent power)
Q (reactive power)
λ
(power factor)
f
(phase difference)
fU/fI (or freqU/freqI; voltage/current frequency)
U+pk/U-pk (maximum/minimum voltage) I+pk/I-pk (maximum/minimum current)
CfU/CfI (voltage/current crest factor) WP (watt hour; sum of positive and negative watt
hours)
WP+ (positive watt hours consumed) WP- (negative watt hours returned to the power
supply)
q (ampere hours; sum of positive and
negative ampere hours)
q+ (positive ampere hours consumed)
q- (negative ampere hours returned to the
power supply)
WS (volt-ampere hours)
WQ (var hours) Time (integration time)
η
1 to
η
2 (efficiency)
F1 to F8 (user-defined functions)
Δ
F1 to
Δ
F4 (delta computation option)

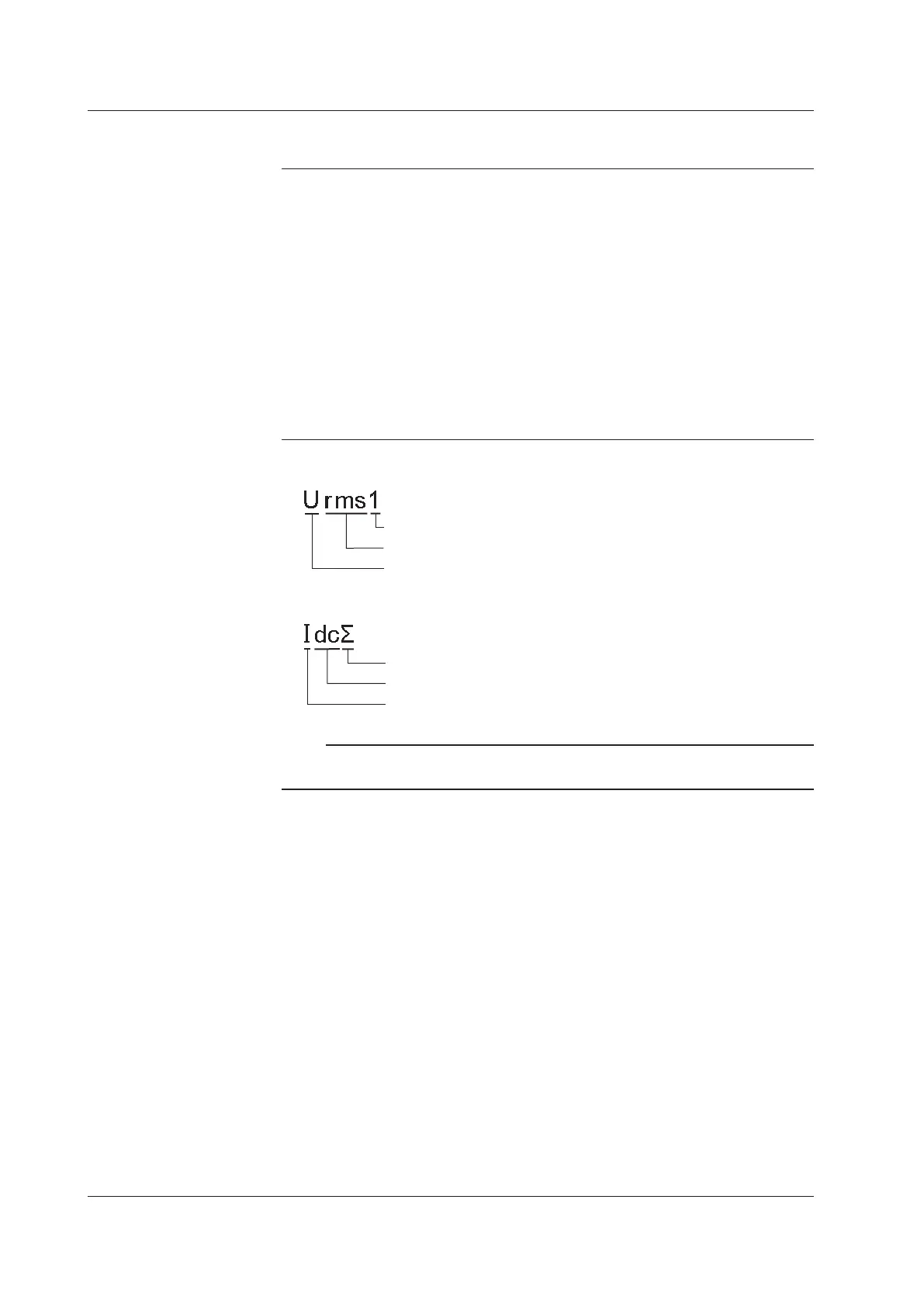

Example The True Rms Voltage of Element 1
Element 1
True rms value
Voltage
Simple Average of the Currents of the Elements in Wiring Unit
Σ
Σ function of wiring unit Σ
Simple average
Current
Note
“-------” or space is displayed if a measurement function is not selected or if there is no numeric
data.
Displaying Numeric Data
Press NUMERIC to display numeric data.
5.2 Displaying Numeric Data and Changing Displayed Items
To Next Page
