Changing a Measurement Function
• The types of measurement functions that can be selected are the functions described
in “Types of Measurement Functions Used in Normal Measurement” and “Measurement
Functions Used in Harmonic Measurement (Optional)” in section 2.2, in “User-Defined
Functions” in section 2.5, in “Integration Functions” in section 2.6, and in “Delta
Computation (Optional)” in section 5.17.
•
You can also choose not to display a measurement function (None).
• The numbers (1, 2, 3, and 4) that are attached to delta computation measurement
function symbols are a part of the symbols and have no relation to the element
numbers.
•
The numbers attached to user-defined functions F1 to F8 are a part of the
measurement function symbols and are not related to the element numbers.
Changing the Element or Wiring Unit
• You can select the element/wiring unit from the choices below. The selectable items
vary depending on the number of elements installed in the WT500.
Element1, Element2, Element3, and
Σ
•
If there are no elements that are assigned to the selected wiring unit, because there is
no numeric data,
Σ
measurement functions will display “-------” (no data).

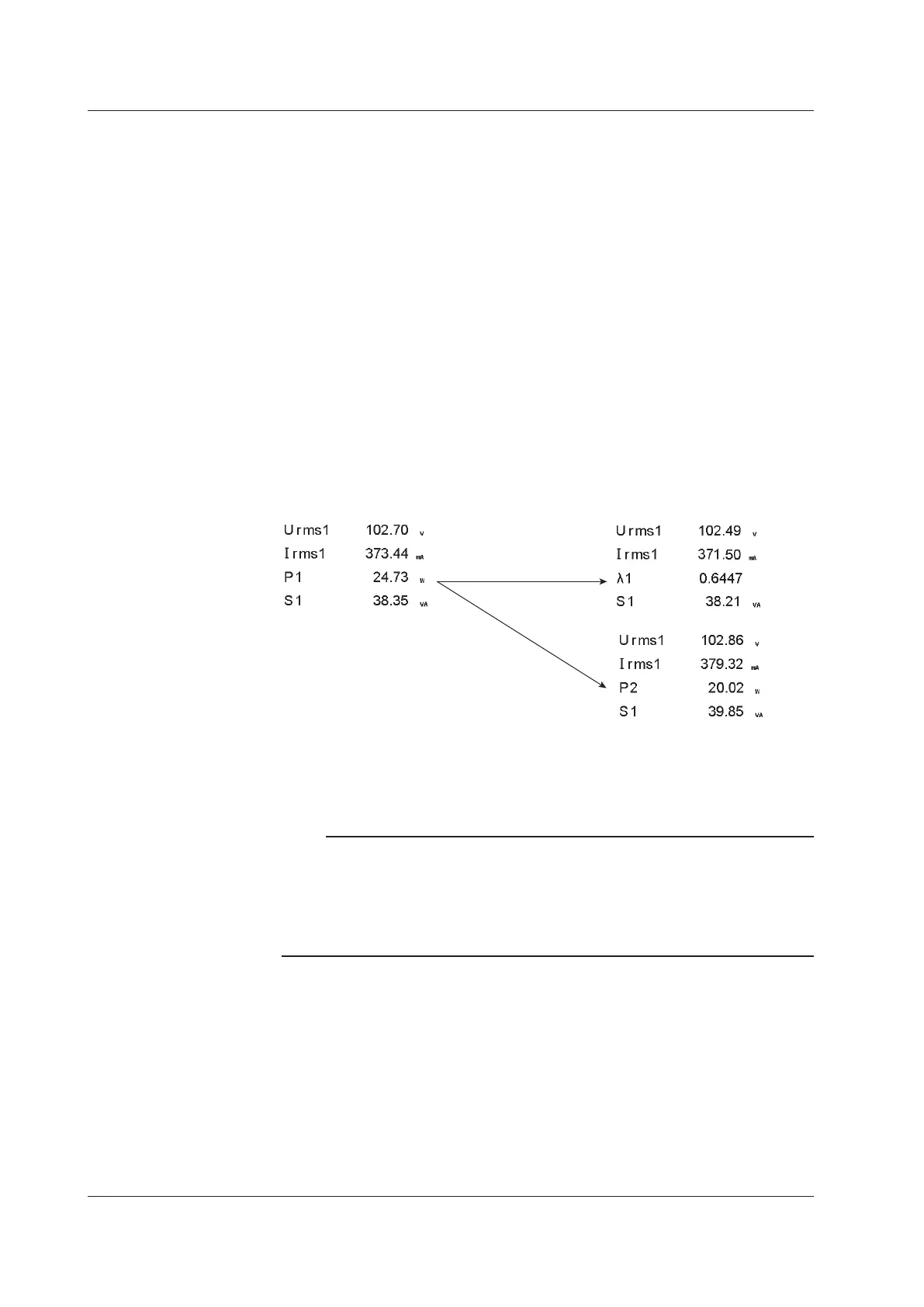

Changing the measurement
function of the third item
Changing the element
of the third item
Resetting the Displayed Item Order
You can reset the displayed item order to a preset order. For details about resetting, see
appendix 2, “List of Initial Settings and Numeric Data Display Order.”
Note
• For the meanings of the displayed measurement function symbols, see section 2.2,
“Measurement Functions and Measurement Periods”; section 2.5, “Computation”; section 2.6,
“Integration”; and appendix 1, “Symbols and Determination of Measurement Functions.”
• For instructions on how to change the displayed harmonic measurement function items, see
chapter 6.
• For information about wiring unit
Σ
, see section 4.2, “Selecting a Wiring System.”
5.2 Displaying Numeric Data and Changing Displayed Items
