Setting the Integration Timer
8.

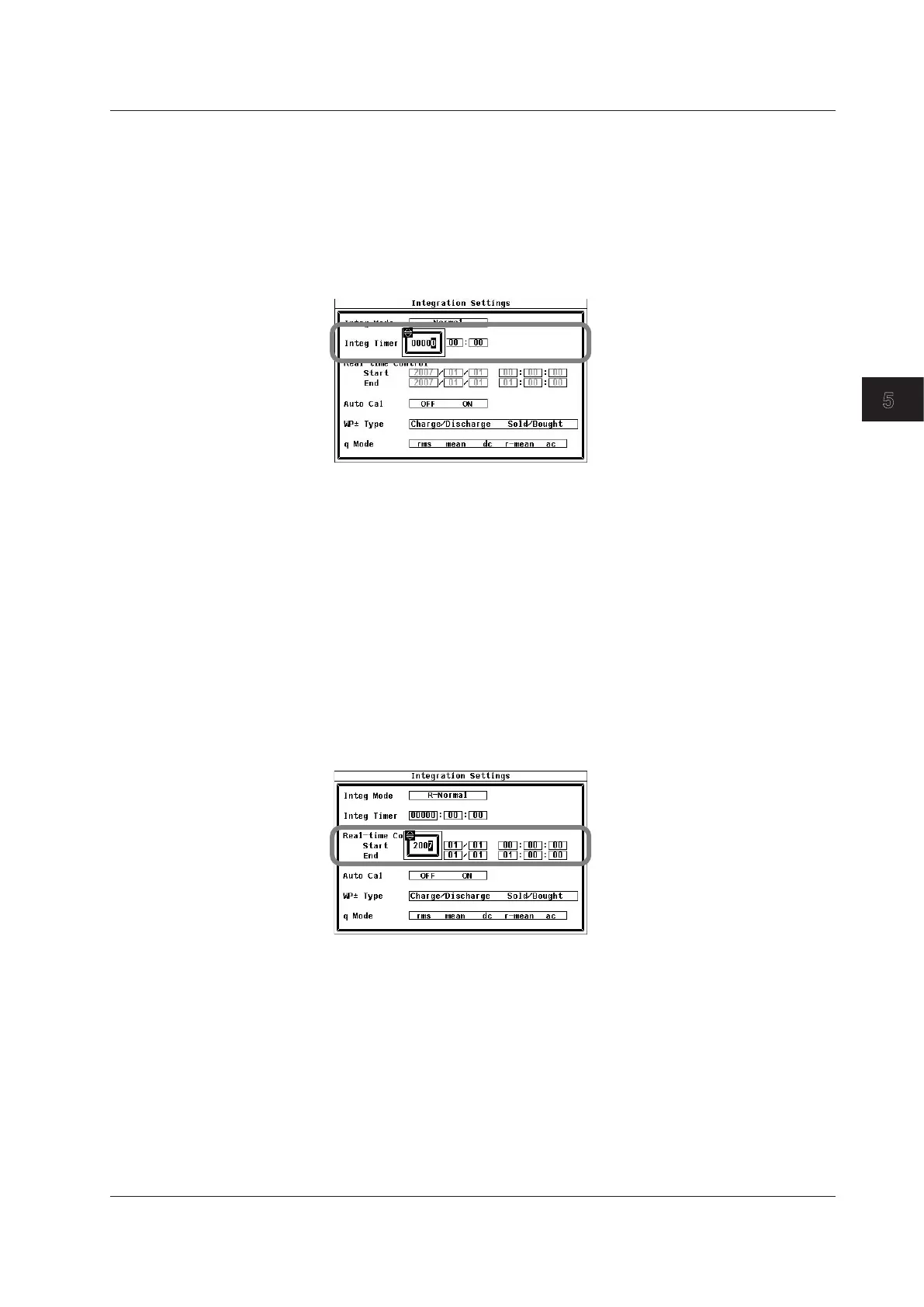

Use the cursor keys to select one of the Integ Timer boxes (hour, minute, or
second).
9.
Press SET to display an entry box.
10.
Use the cursor keys to set the hour, minute, or second that you selected in step 8.
11.
Press SET or ESC to close the entry box.
12.
Repeat steps 8 to 11 to set the hour, minute, and second.
Setting the Scheduled Start and End Times
13.
Use the cursor keys to select one of the Real-time Control integration start time
boxes (year, month, day, hour, minute, or second).
14.
Press SET to display an entry box.
15.
Use the cursor keys to set the year, month, date, hour, minute, or second that
you selected in step 13.
16.
Press SET or ESC to close the entry box.
17.
Repeat steps 13 to 16 to set the year, month, date, hour, minute, and second.
18.
Use the cursor keys to select one of the Real-time Control integration end time
boxes (year, month, day, hour, minute, or second).
19.
Repeat steps 14 to 17 to set the year, month, date, hour, minute, and second.
20.
Press ESC twice to close the entry box and the setup menu.
5.9 Setting Real-Time Integration or Real-Time Continuous Integration
