7.6 Vertically Zooming and Shifting Waveforms
Procedure
1.

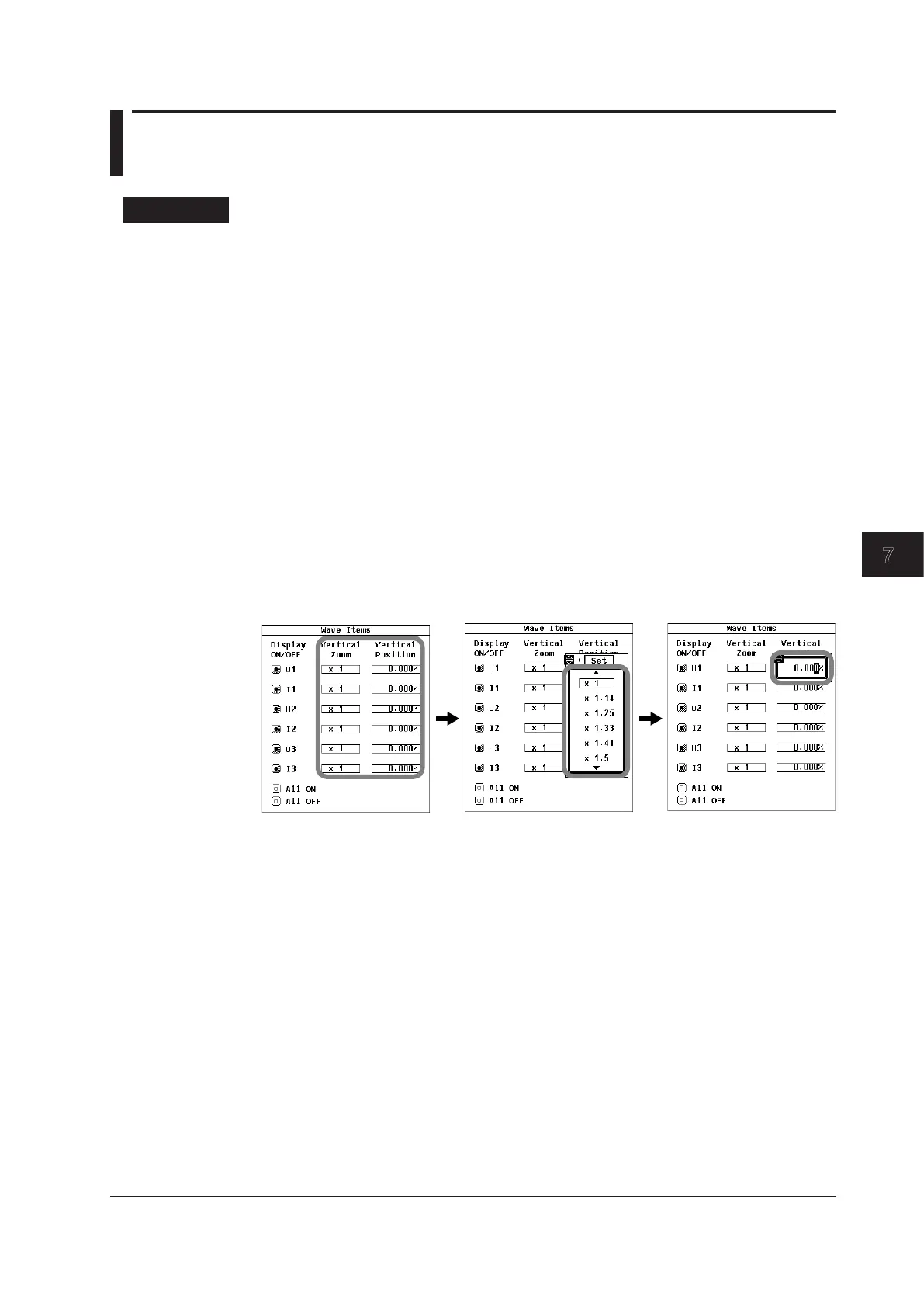

Press ITEM to display the Wave Items menu.
Zooming a Waveform
2.
Use the cursor keys to select the measurement function zoom factor (in the
Vertical Zoom column) that you want to set.
3.
Press SET to display the zoom factor selection box.
4.
Use the cursor keys to select a zoom factor.
5.
Press SET to confirm the selection.
Shifting a Waveform Position
2.
Use the cursor keys to select the measurement function vertical position (in the
Vertical Position column) that you want to set.
3.
Press SET to display the vertical position entry box.
4.
Use the cursor keys to set the position as a percentage. A value of 100% is
equivalent to three or six times the measurement range when the crest factor is
set to 3 or 6, respectively.
5.
Press SET or ESC to close the vertical position entry box.
