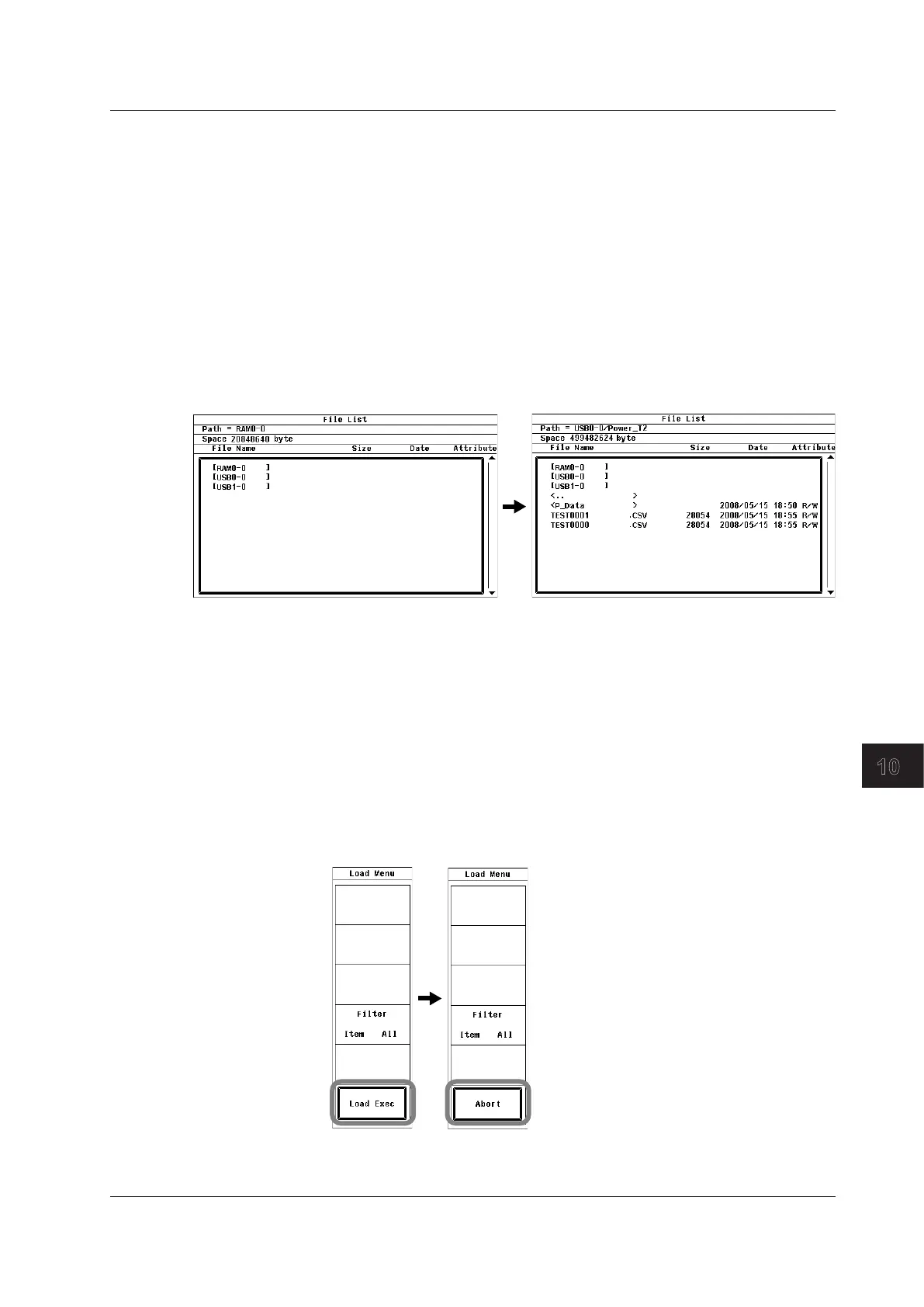

Selecting the Storage Medium to Load From
8.
Use the cursor keys to select the storage medium (displayed using brackets) that
you want to load from.
9.
Press SET to confirm the selection.
Selecting the Directory to Load From
(Follow these procedures if the storage medium has directories.)
10.
Use the cursor keys to select the directory (displayed using < >) that you want to
load from.
11.
Press SET to confirm the selection.
• The selected storage medium and directory appear in the upper left of the File List dialog
box after “Path=.”
• Select <..> and press
SET
to move up to the parent directory.
Selecting a File to Load
12.
Use the cursor keys to select the file you want to load.
Loading
13.
Use the cursor keys to select Load Exec.
14.
Press SET. The selected file is loaded from the directory displayed after “Path =.”
The Load Exec menu item changes to Abort.
Aborting a Load Operation
15.
Use the cursor keys to select Abort.
16.
Press SET. Loading stops. The Abort menu item changes to Load Exec.
10.5 Loading Setup Parameters and Displaying File Properties
