4.2.7 Upper Stand Part FL-LED
1 Reflector turret 4-fold (fixed)
2 Control wheel for illumination intensity and
on/off switch of LED illumination
3 Pilot lamp LED illumination on/off
4 Nosepiece 3x bright-field, 3x DIC
The upper stand part FL-LED comes equipped with
an integrated LED illumination. The LED modules
can be exchanged (see chapter
697H697H3.4.9).
The LED illumination is controlled by a wheel which
has a push and a turn mode.
− Push the wheel and the LED currently
coupled into the beam path is switched on
or off.
− The pilot lamp burns when the LED is turned
on.
− Turn the wheel to control the light intensity
of the currently active LED:
up - increase,
down - decrease.
− The active LED blinks twice when it reaches
its maximum brightness.
− The chosen degree of brightness remains
active even after changing to another LED
module.

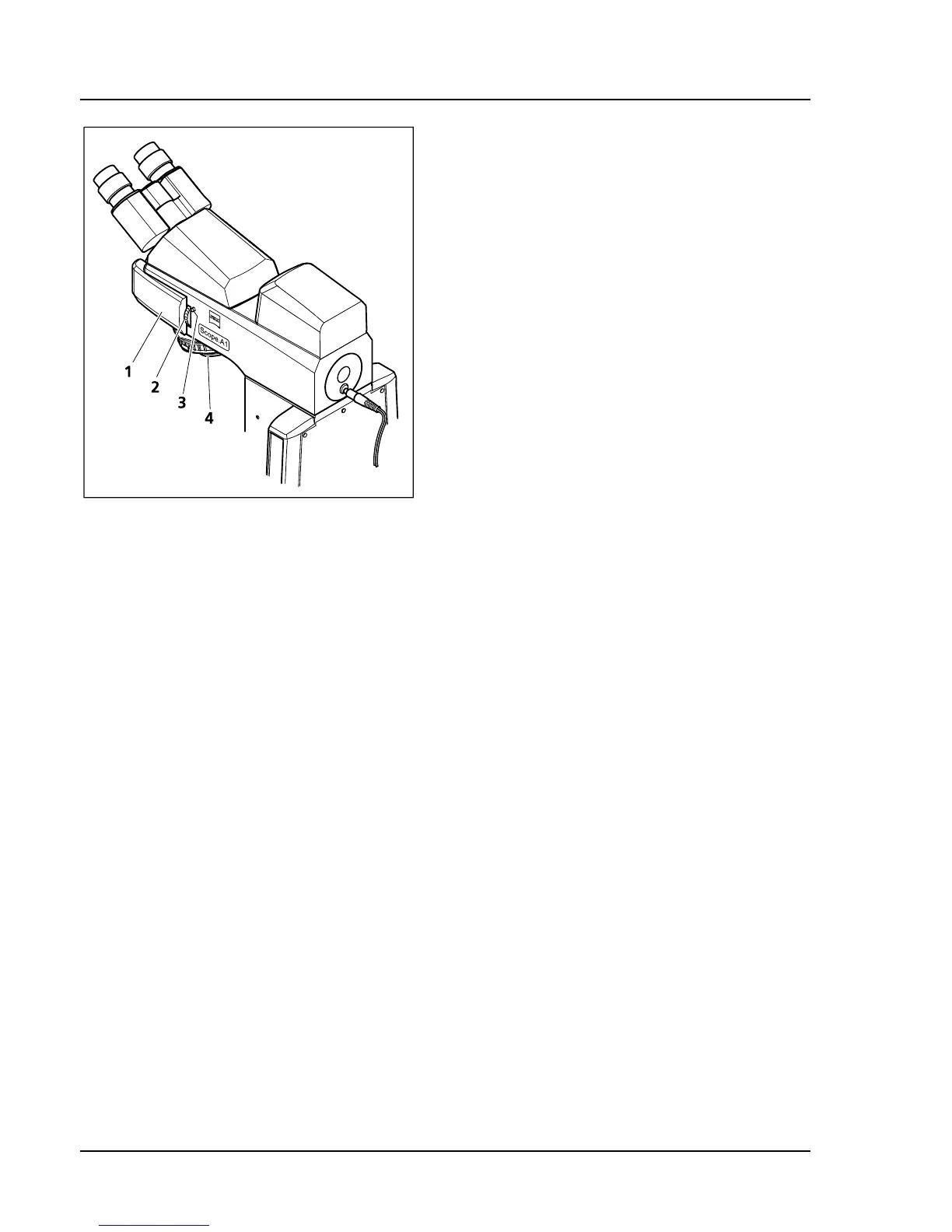

Fig. 4-23 Upper stand part FL-LED
