OPERATION
Carl Zeiss Operating and Functional Elements of Optional Components Axio Scope.A1
96 M60-2-0007 e 05/08
4.2.2 Lower Stand Part with HAL 50 Illumination
1 Field diaphragm
2 Filter wheel 6-fold (both sides)
3 Focusing drive – fine adjustment (both sides)
4 Focusing drive – rough adjustment (both sides)
5 Light intensity control (both sides)
6 Power input with fuse compartment
7 Halogen lamp HAL 50
8 Release tractor for vertical stop of focusing drive
9 Compartment for filter slider (both sides)
10 On/off switch

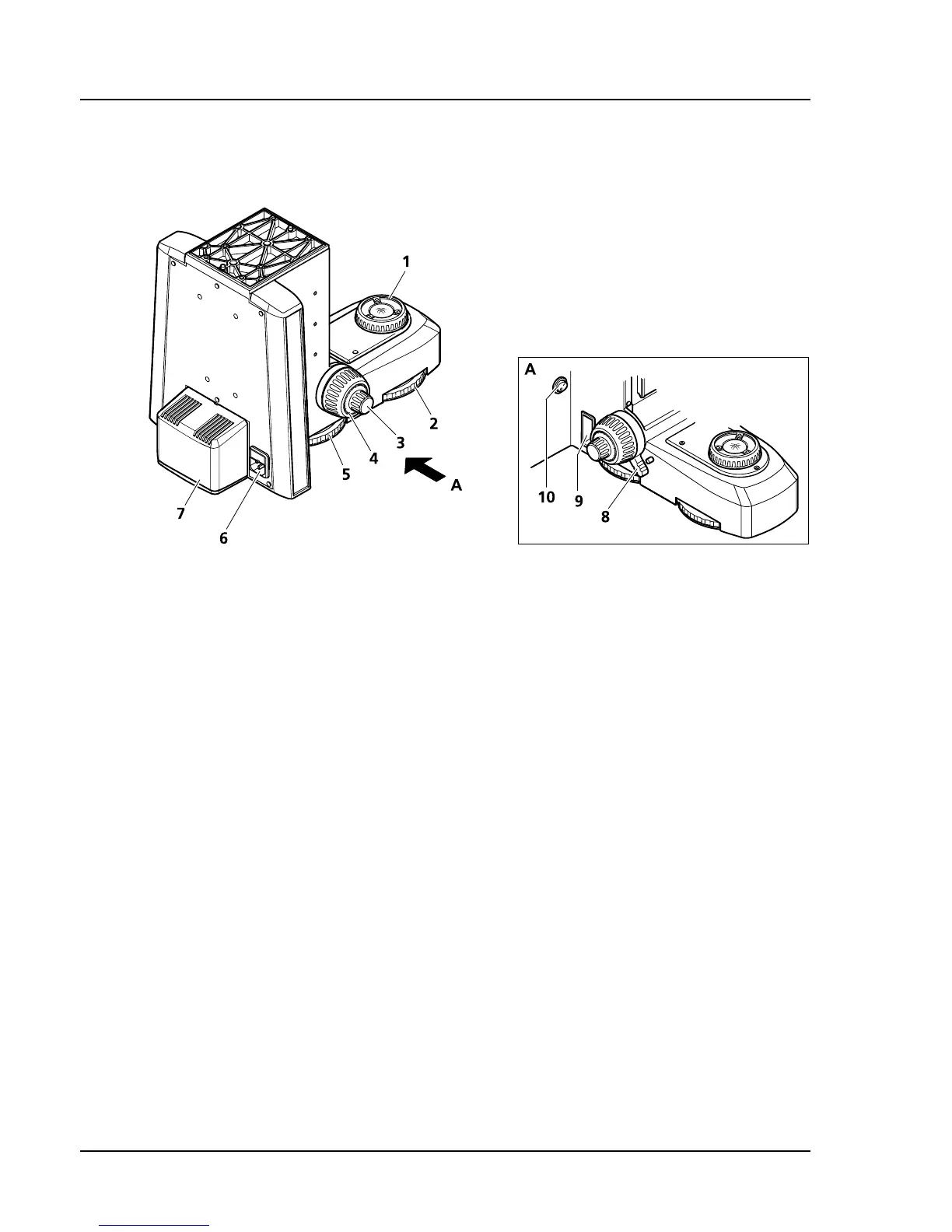

Fig. 4-18 Lower stand part with HAL 50 illumination
