OPERATION
Axio Scope.A1 Operating and Functional Elements of Optional Components Carl Zeiss
M60-2-0007 e 05/08 107
Mechanical stage 75x50
− Mechanical stage (
717H717HFig. 4-34/2) with object
holder (
718H718HFig. 4-34/1) for holding, positioning
and fixating the samples.
− Gear knobs for X (
719H719HFig. 4-34/3) and Y
adjustment (
720H720HFig. 4-34/4).
Overview fixture 2.5x-4x
The overview fixture serves to achieve a full
illumination of the field of view when using a
mildly magnifying objective (2.5x-4x) in
combination with the condenser 0.9/1.25 H
(424225-9000-000).
It can be centered and remains in the beam path
through the use of the according objective.
− Swing the overview fixture (
721H721HFig. 4-35/2) in or
out of the beam path with the aid of the
handle (
722H722HFig. 4-35/1). Make sure to engage
the fixture securely after swinging it in.
− Do not use it with LED illumination for
transmitted light.
An installation of the field diaphragm service unit is possible with the overhead fixture in place
if the condenser carrier is moved down to the lowest possible position!

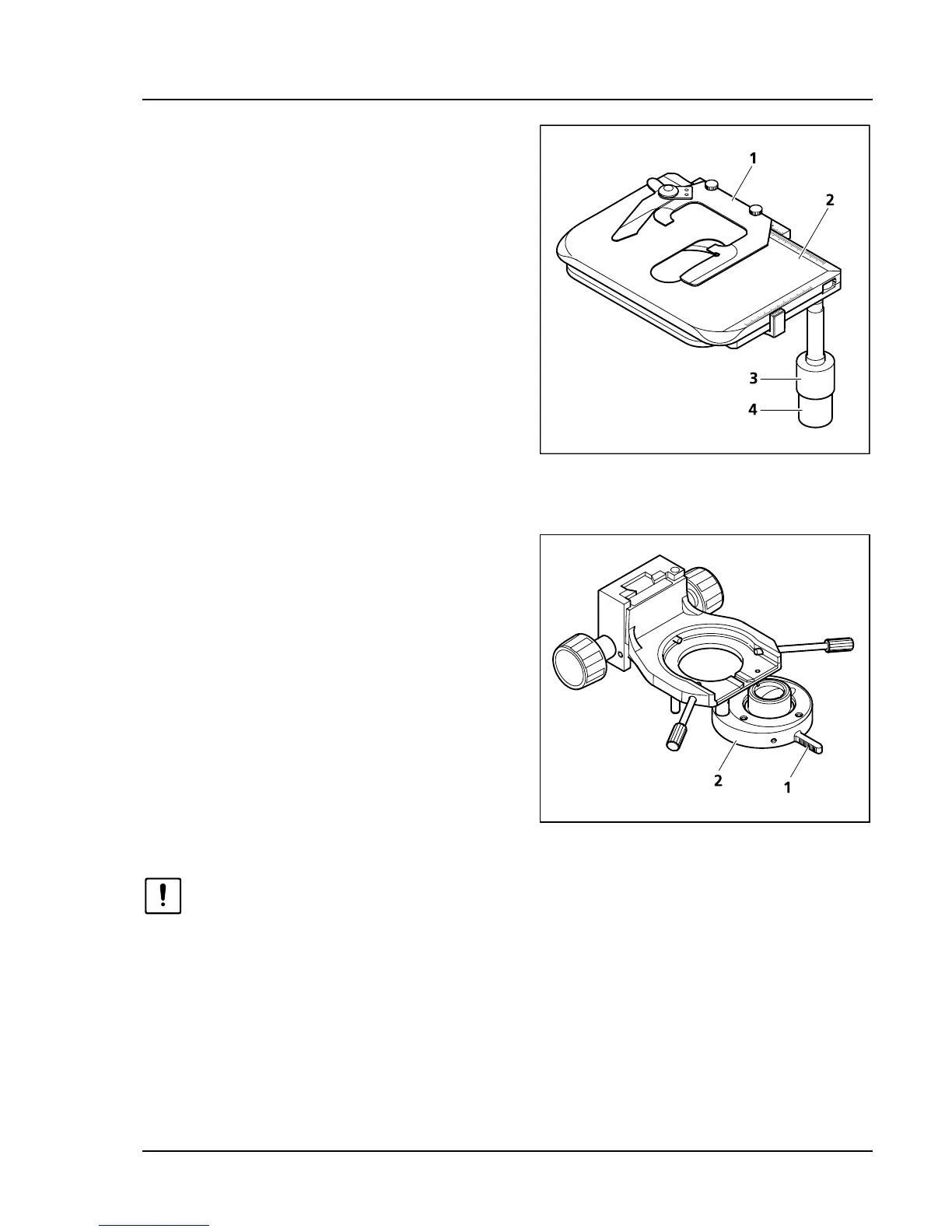

Fig. 4-34 Mechanical stage with object
holder
Fig. 4-35 Overview fixture
