4.2.11 Reflector Slider 2-fold
The reflector slider 2-fold is equipped with two
individually loadable reflector positions P&C which
you can slide into the beam path.
4.2.12 Reflector Turret 4-fold or 6-fold
The reflector turrets 4-fold or 6-fold are equipped
with four or six reflector positions P&C.
Adjusting the reflector position is done by turning
the knurled wheel. The marking indicates which
reflector position is presently in the beam path.
For easy identification we advise that you write
down the appropriate data for each position of the
mounted reflector modules on the stickers
provided with the instrument. Then stick them on
the appropriate spaces.

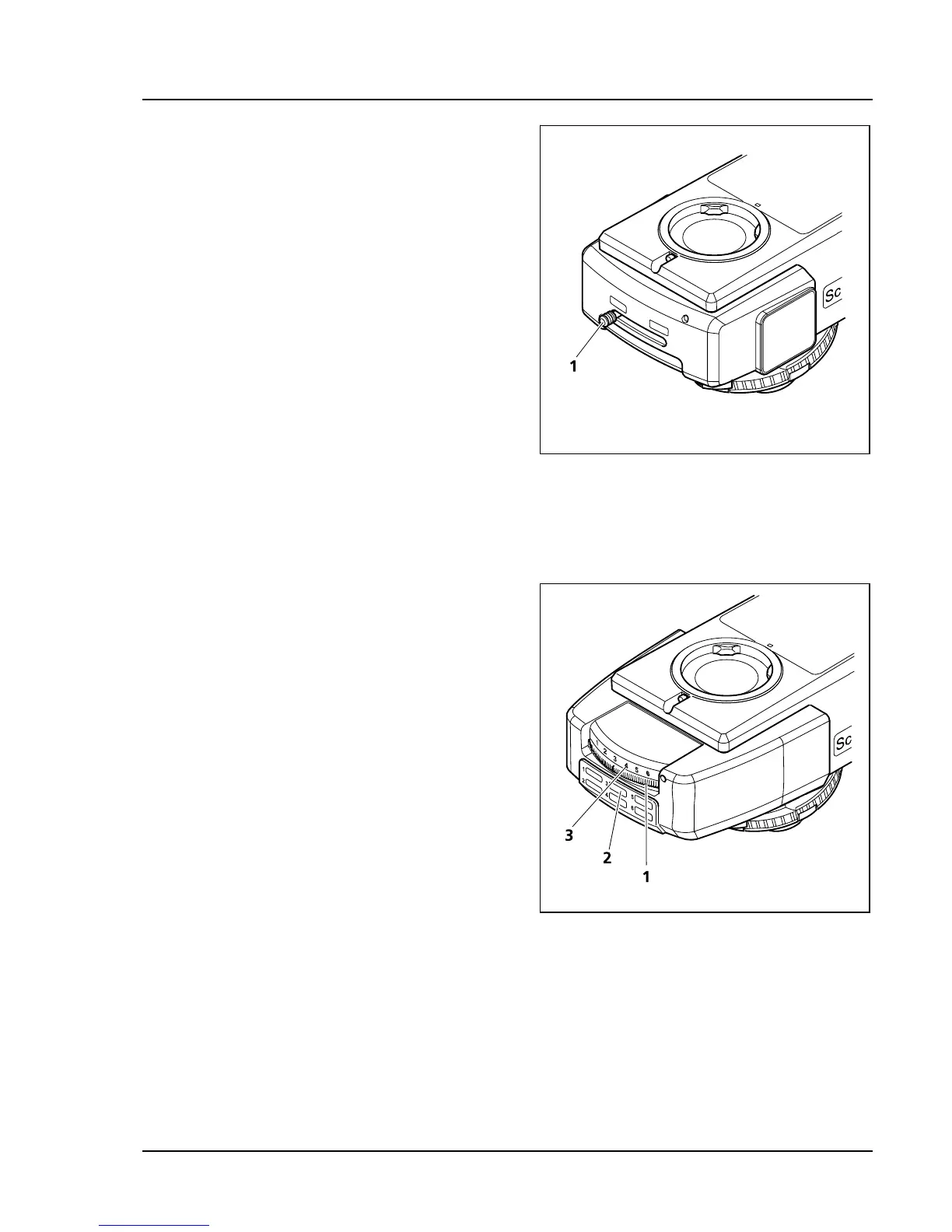

1 Slider
Fig. 4-27 Reflector slider 2-fold
1 Knurled wheel with position marks
2 Spaces for stickers with load data
3 Display showing the number of the active reflector
position
Fig. 4-28 Reflector turret 6-fold
