OPERATION
Carl Zeiss Operating and Functional Elements of Optional Components Axio Scope.A1
102 M60-2-0007 e 05/08
4.2.10 Sideport ISCP T60N Left
The sideport ISCP T60N left is equipped with two
switch positions which can be activated alternately
with the slider.
Push the slider to the right hand position and
activate the eyepiece observation (vis).
Push the slider to the left hand position and
activate the camera port (doc). Optional photo or
video cameras can now be mounted with the
appropriate camera adapters. The total weight of
camera and camera adapter should not exceed
1 kg (when the center of mass is 130 mm away
from the optical axis).
Because the ISCP already has an internal factor of
0.63x, you can only camera adapters with a factor
greater than or equal to 0.63x.
The reflector module P&C installed in this position
can be furnished with a half mirror (partition ratio
doc/vis 50 : 50) or a full mirror (partition ratio
doc/vis 100 : 0).

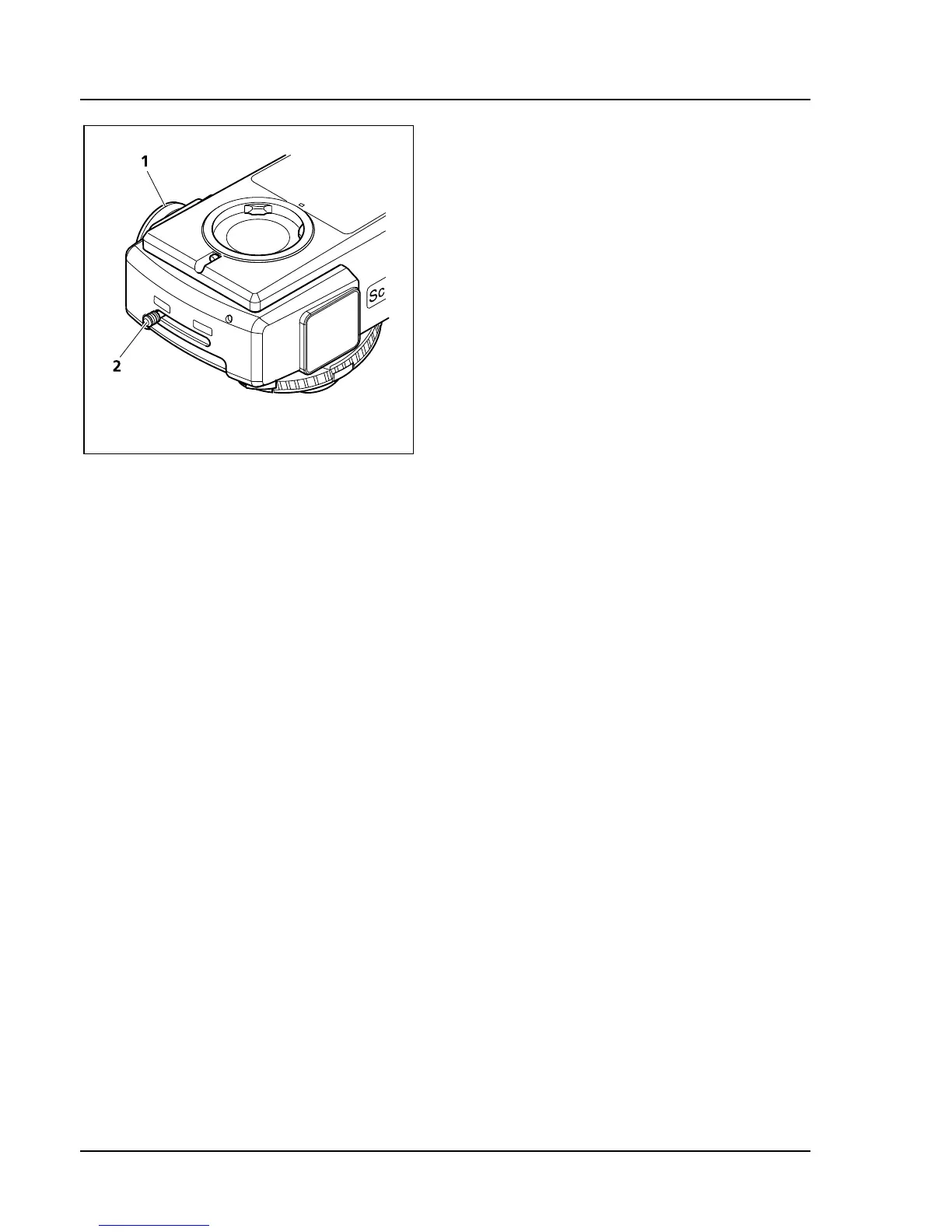

1 Camera port
2 Slider
Fig. 4-26 Sideport ISCP T60N left
