OPERATION
Carl Zeiss Operating and Functional Elements of Optional Components Axio Scope.A1
108 M60-2-0007 e 05/08
Diaphragm slider 14x40 mm for aperture and
field diaphragm
− You will need one diaphragm slider
14x40 mm each (
723H723HFig. 4-36/4, inserted in the
upper stand part as field diaphragm (F) and
aperture diaphragm (A)) in order to adjust
the reflected light beam path according to
KÖHLER.
− The diaphragm is opened by turning the
knurled wheel (
724H724HFig. 4-36/1) of the slider up
and closed by turning it down.
− The diaphragm can be centered to the beam
path with both centering screws (
725H725HFig. 4-36/2
and 3) and the hexagon socket wrench
SW 3.
• When applying fluorescence light, you may
want to mount an FL attenuator (if not pre-
installed) on the level of the aperture diaphragm
in order to attenuate the fluorescence radiation.

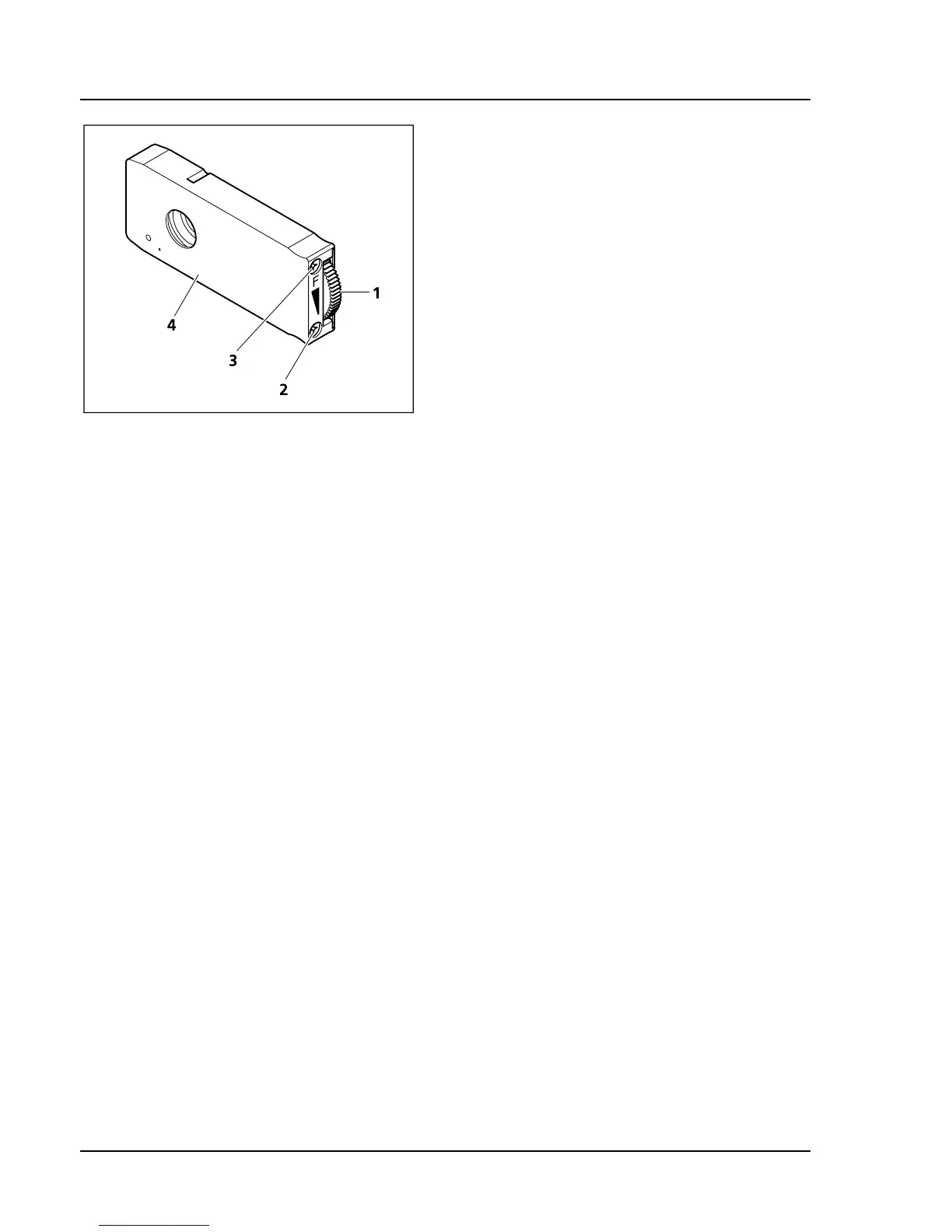

Fig. 4-36 Diaphragm slider 14x40 mm
