3.1.5 Mounting Objectives
• Lower the mechanical stage with the stage
carrier to the bottom stop or lower the stage
carrier with the dovetail.
• Remove the dust protection caps (
310H310HFig. 3-6/2)
from the appropriate nosepiece openings.
• Take the objective (
311H311HFig. 3-6/3) out of its box and
mount it to the nosepiece (
312H312HFig. 3-6/1), starting
with the smallest zoom factor (set up
clockwise).
• Instead of a objective, you may mount an object
marker (
313H313HFig. 3-6/4) to any position of the
nosepiece with the aid of an adapter ring
W0,8/M27 (
314H314HFig. 3-6/5). Don’t forget to recap
the object marker when not in use in order to
prevent it from drying out.
Always place dust covers over the positions in the nosepiece which are presently not being used.
The adapter ring W0,8/M27 must be used with the objective W0,8.

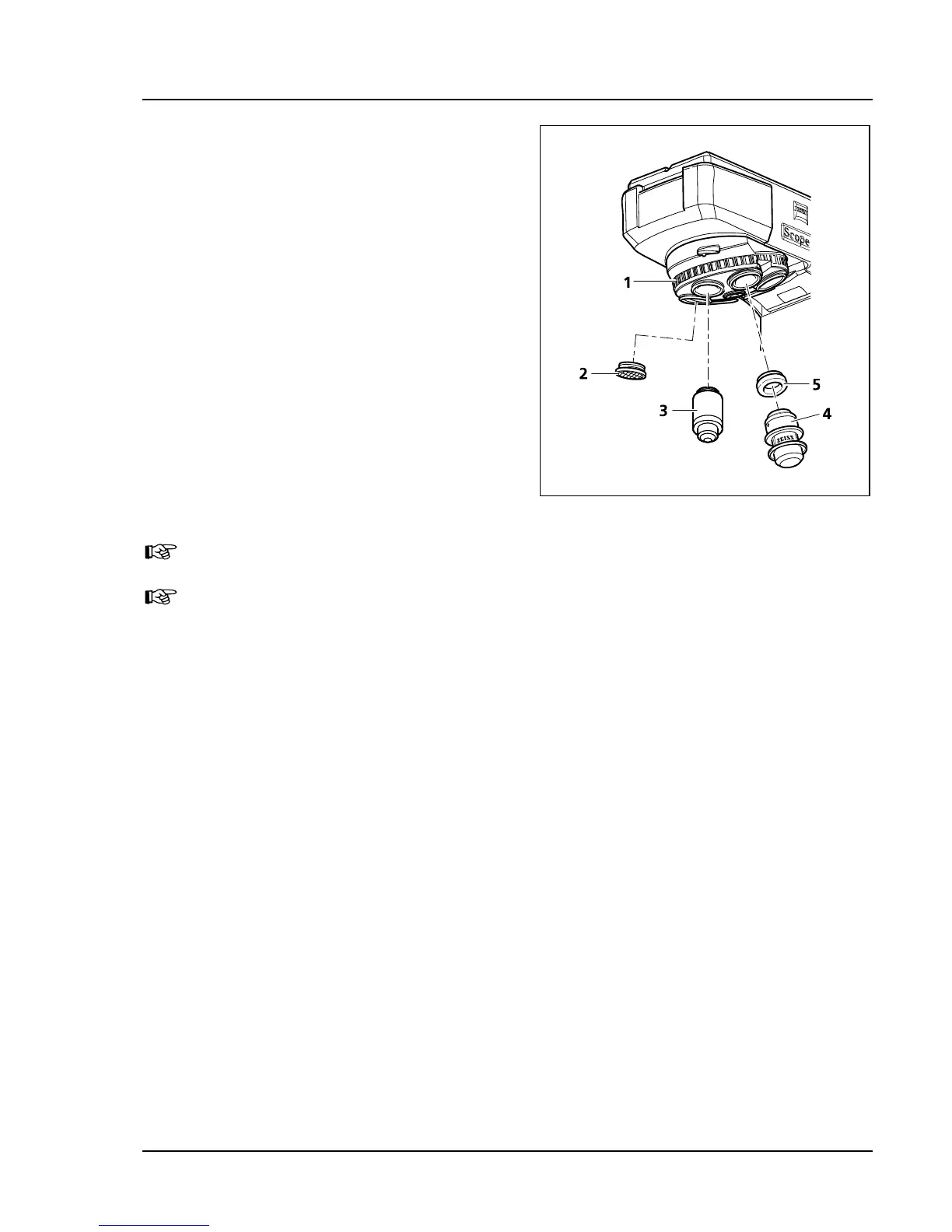

Fig. 3-6 Mounting objectives
