Zeiss Axio Scope.A1 - Adjusting the Connecting Rod Position for the Ergo Drive

STARTUP
Carl Zeiss Mounting the Standard Components Axio Scope.A1
40 M60-2-0007 e 05/08
(3) Adjusting the connecting rod position of
the ergo drive
The connecting rod position on the ergo drive of
the mechanical stage 75x50 R (432035-9010) can
be adjusted individually.
• Remove the stage with the stage carrier from
the stand (see chapter
372H372H3.1.13) and put it aside
face down.
• Loosen both clamping screws (
373H373HFig. 3-15/2) on
the connecting rod (
374H374HFig. 3-15/1).
• Slide the connecting rod (
375H375HFig. 3-15/1) in the
groove into the desired position.
• Tighten both clamping screws (
376H376HFig. 3-15/2).
• Mount the stage carrier with the stage on the
lower stand part (see chapter
377H377H3.1.13).

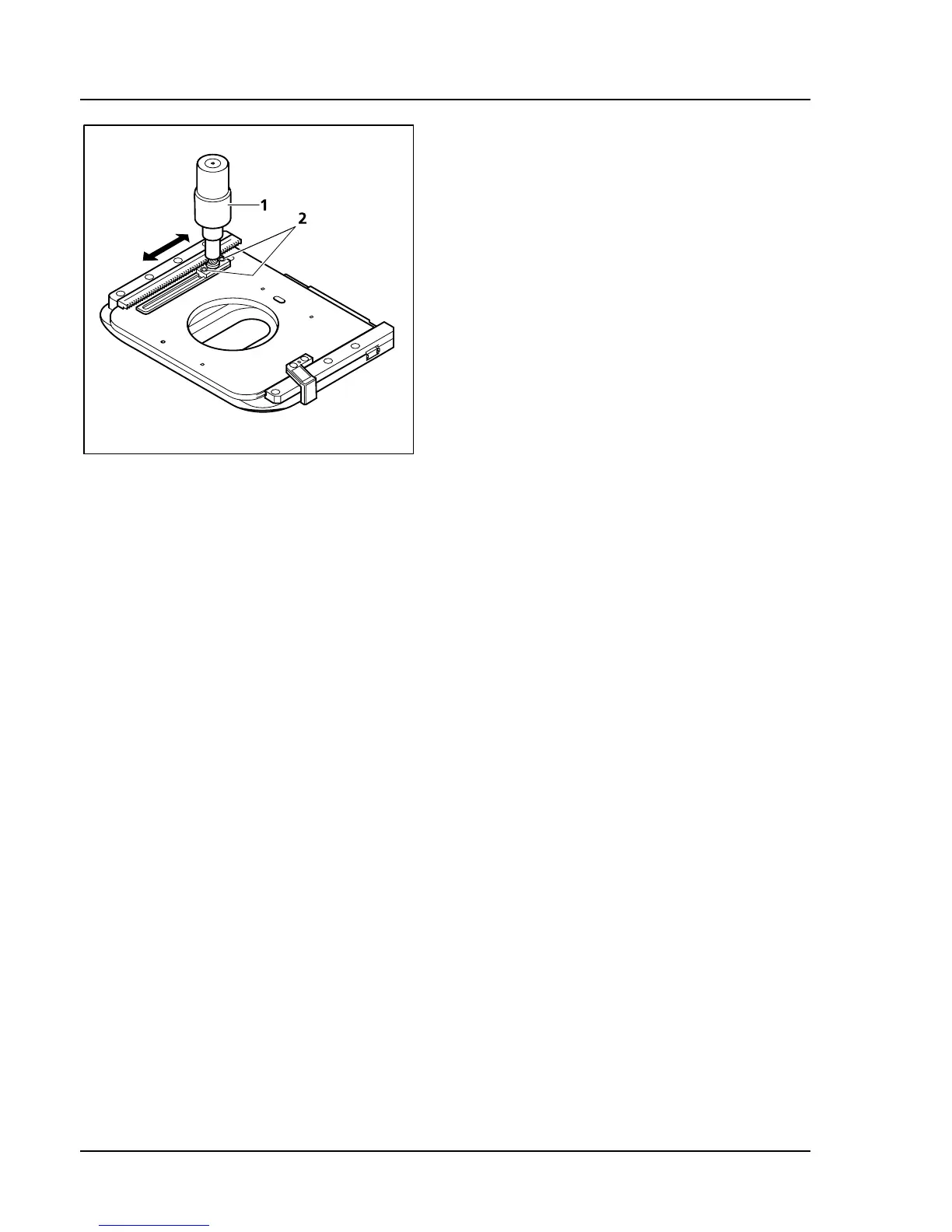

Fig. 3-15 Adjusting the connecting rod
position for the ergo drive
