Zeiss Axio Scope.A1 - Adjusting the Microscope in the Reflected Light;Bright-Field

OPERATION
Axio Scope.A1 Illumination and Contrasting Method Carl Zeiss
M60-2-0007 e 05/08 85

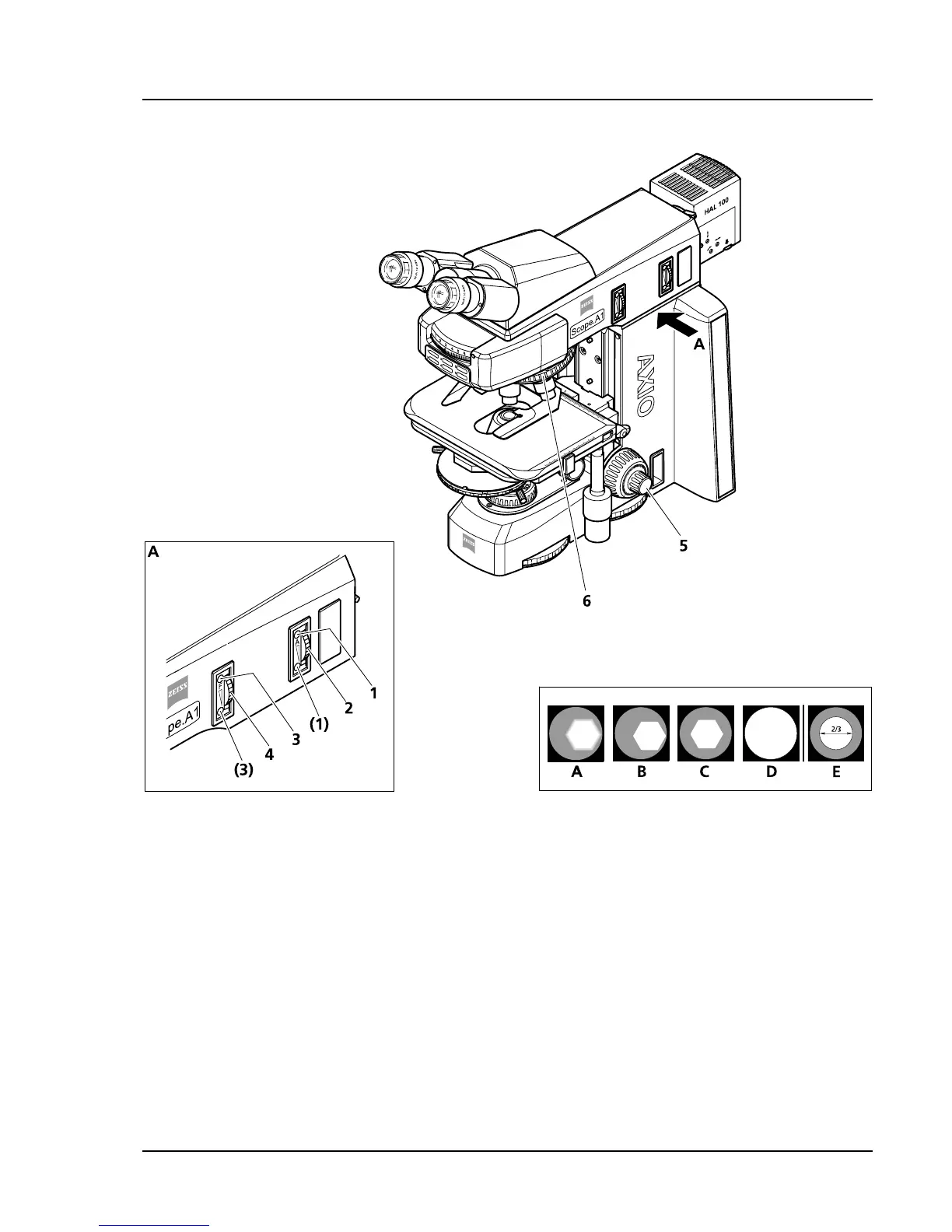

1 Centering screw of the aperture diaphragm
2 Knurled button of the aperture diaphragm
3 Centering screw of the field diaphragm
4 Knurled button of the field diaphragm
5 Focusing drive
6 Nosepiece
Fig. 4-11 Adjusting the microscope in the reflected light/bright-field
