4.2.4 Stand Column Vario 380 mm or 560 mm with Gear Box
1 Hand wheel for vertical adjustment of gear box of stand column,
2 Gear box Vario ready for upper stand part
3 Focusing drive – rough adjustment
4 Focusing drive – fine adjustment
5 Release tractor for vertical adjustment (both sides)

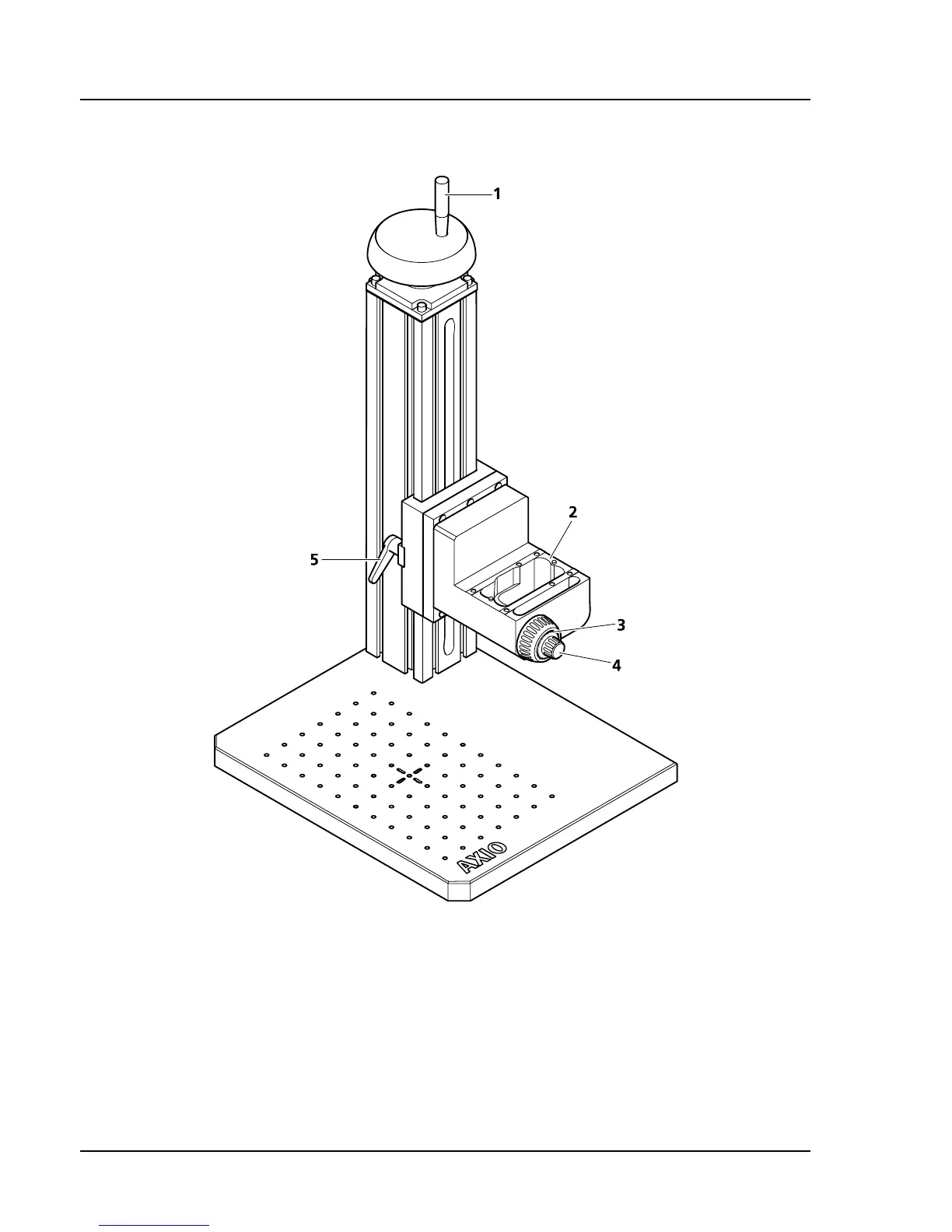

Fig. 4-20 Stand column Vario
