Carl Zeiss Mounting Optional Components Axio Scope.A1
66 M60-2-0007 e 05/08
3.4.13 Changing the Filter in the Filter
Wheel Transmitted Light
• Remove the stage carrier (see chapter
599H599H3.1.11).
• Unscrew three screws (
600H600HFig. 3-53/3) of the field
diaphragm socket (
601H601HFig. 3-53/4) and pull the
socket out of the stand foot.
• If necessary, pull the filter to be changed
(
602H602HFig. 3-53/1) out of the corresponding position
of the filter wheel (
603H603HFig. 3-53/2).
• Put the new filter into the position.
A filter position is always designed as
firmly installed shutter position.
• Repeat the procedure for all filter wheel
positions.
• Put in the field diaphragm socket and screw it in.
• Mount the stage carrier (see chapter
604H604H3.1.11).

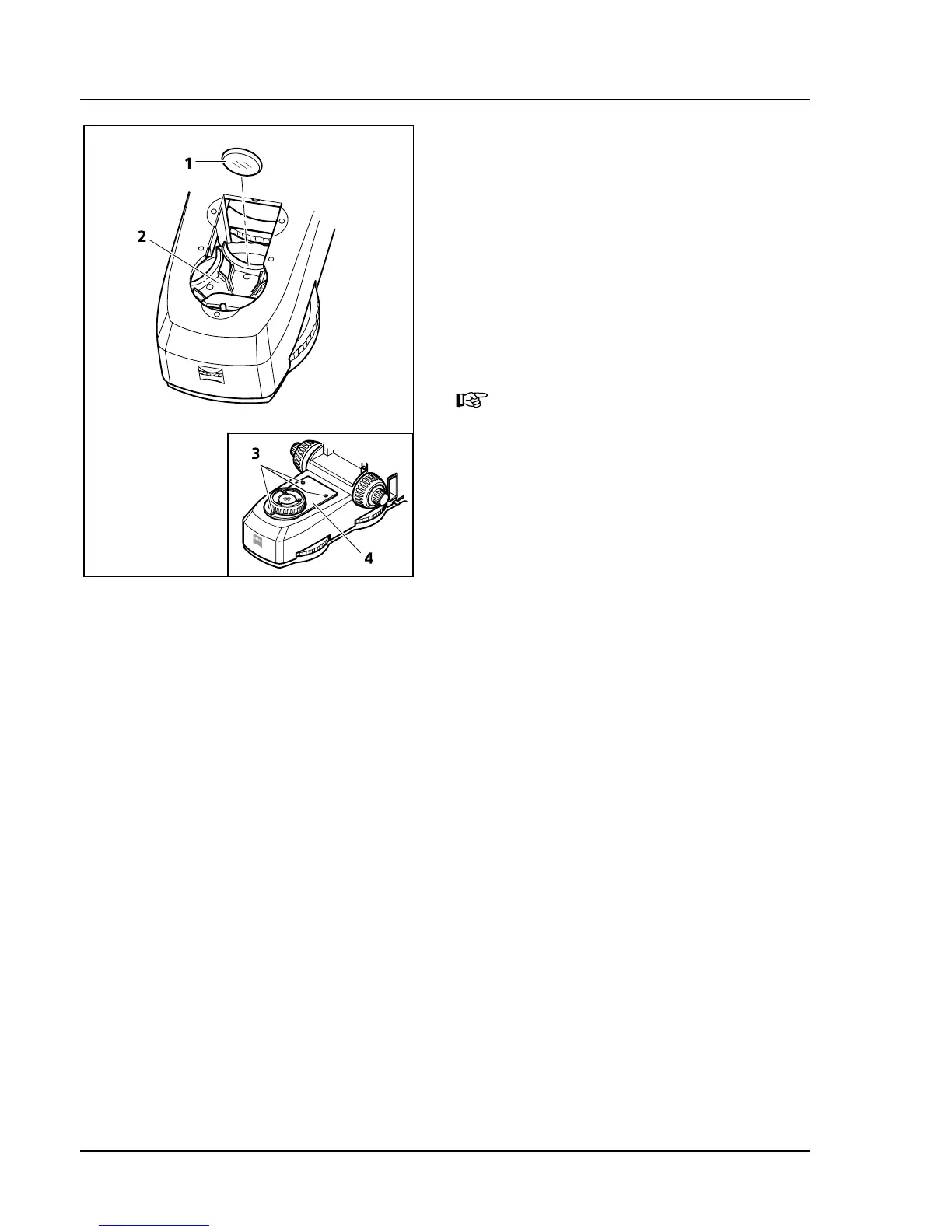

Fig. 3-53 Changing the filter in the filter
wheel transmitted light
