STARTUP
Axio Scope.A1 Mounting the Standard Components Carl Zeiss
M60-2-0007 e 05/08 35
3.1.7 Mounting the Reflector Insert
• First remove the cover cap (
322H322HFig. 3-9/1) by
inserting the ball head screwdriver (SW 3 mm)
into the slit (
323H323HFig. 3-9/2). Turn the locking screw
counter clockwise to the stop and pull the cover
cap forward.
• Put the reflector insert (
324H324HFig. 3-9/3) with the
reflector modules P&C (e.g. reflector turret 6-
fold) into the upper stand part until it stops,
hold it and tighten the locking screw again.
When the reflector insert is removed,
the reflected light path is automatically
blocked so that the glare will not
affect the operator.

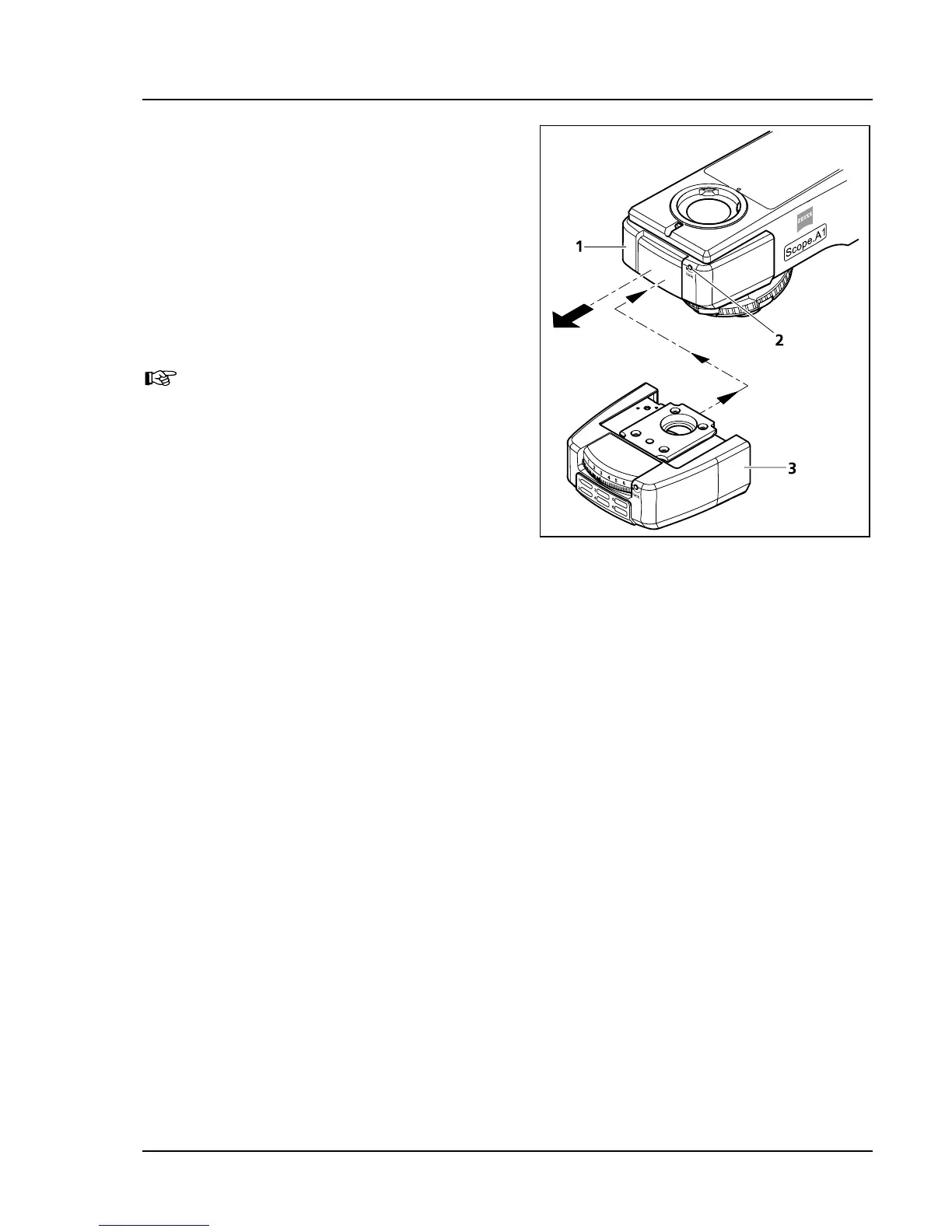

Fig. 3-9 Mounting the reflector insert
