STARTUP
Axio Scope.A1 Mounting Optional Components Carl Zeiss
M60-2-0007 e 05/08 57
3.4.2 Mounting the Intermediate Plate
for Analyzer Slider
• Loosen the hexagon socket screw (
512H512HFig. 3-40/5)
with the ball head screwdriver SW 3 and lift off
the tube (
513H513HFig. 3-40/1).
• Use the included ring tool to unscrew the tube
lens (accessible from the bottom) and keep it
free of dust.
• Screw the tube lens included with the
intermediate plate into the tube.
• Insert the intermediate plate (
514H514HFig. 3-40/2) with
the dovetail ring into the stand socket
(
515H515HFig. 3-40/6), adjust it, then fixate it with the
hexagon socket screw (
516H516HFig. 3-40/4).
• Insert the analyzer slider into the slider
receptacle (
517H517HFig. 3-40/3) if applicable.
• Slightly incline the binocular tube (
518H518HFig. 3-40/1)
when inserting it into the intermediate plate,
adjust it and fixate it with the hexagon socket
screw (
519H519HFig. 3-40/4).
3.4.3 Mounting the Tube Lens Turret
Mounting the tube lens turret is done analogically to mounting the intermediate plate for analyzer sliders.
See chapter
520H520H3.4.3.
Before using the TL turret, please remove the tube lens from the tube. Only in combination
with imager tubes and eyepieces SF23 (see Systems Overview).

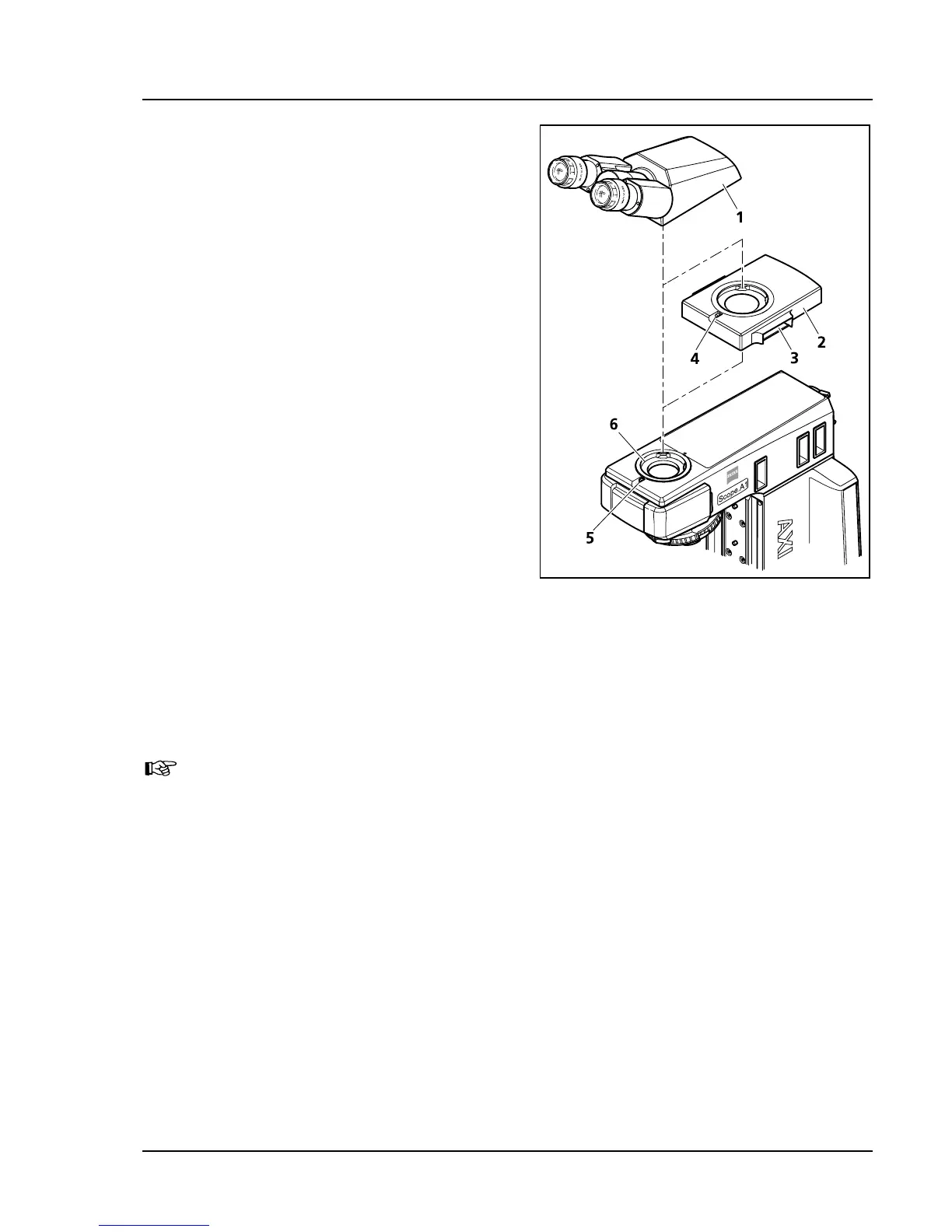

Fig. 3-40 Mounting the binocular tube
