3.1.18 HBO 100 Illuminator
3.1.18.1 Inserting the mercury vapor short
arc lamp HBO 103 W/2
For safety reasons, the illuminator HBO 100 and
the mercury vapor short arc lamp HBO 103 W/2
are packed separately.
The first step in order to put the lamp
HBO 103 W/2 in operation is to insert it in the
lamp house.
Please read the manual included with the unit
before inserting or replacing the lamp
HBO 103 W/2.
CAUTION
Please use a FL attenuator (if it is not
installed permanently) in order to
change the transmission. Grey filters
are not resistant enough on the long
run.
3.1.18.2 Mounting the HBO 100
illuminator
• Remove the cover from the reflected light
connection piece (
474H474HFig. 3-31/1).
• Insert the lamp case (
475H475HFig. 3-31/3) with the
dovetail ring into the reflected light connection
piece (
476H476HFig. 3-31/1) on the back of the unit.
Tighten the clamping screw (
477H477HFig. 3-31/2) with
the ball head screwdriver SW 3.
• Connect the multi-pole HBO 100 lamp plug
with the adapter (
478H478HFig. 3-32/1) of transformer
HBO 100 W. Secure with a retaining ring.
• First plug the cord into the outlet (
479H479HFig. 3-32/2)
of transformer HBO 100 W, then insert the
power plug into the electrical outlet.

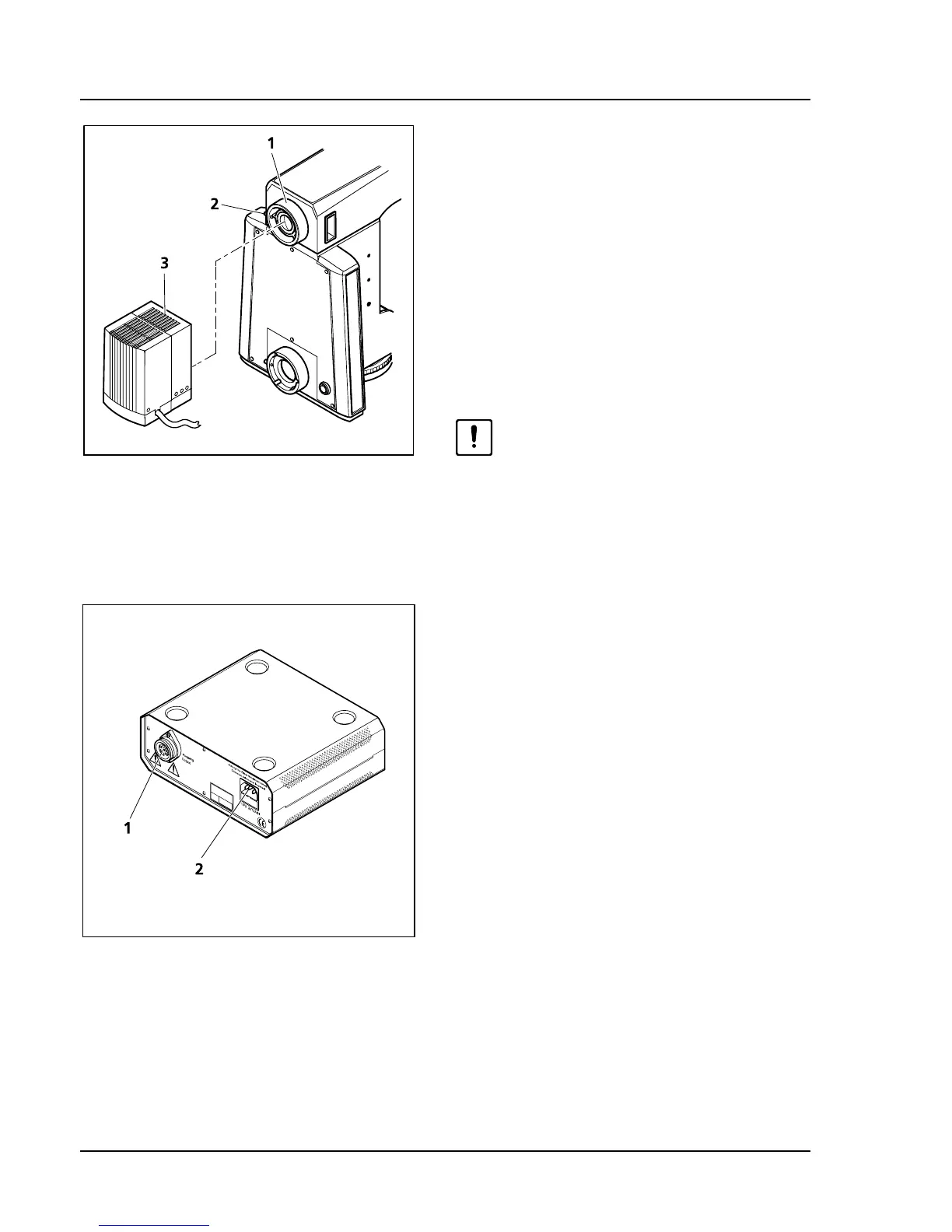

Fig. 3-31 Mounting the HBO 100
Fig. 3-32 Transformer HBO 100 W
