OPERATION
Axio Scope.A1 Operating and Functional Elements of Optional Components Carl Zeiss
M60-2-0007 e 05/08 99
4.2.5 Upper Stand Part Transmitted Light
1 Nosepiece 6x bright-field
2 Reflector insert (exchangeable)
4.2.6 Upper Stand Part FL/HBO
1 Field diaphragm (centerable)
2 Port for adjustment aid
3 FL attenuator for fluorescence illumination
4 Compartment for filter slider A
5 Connecting piece for illumination unit
6 Nosepiece 3x bright-field, 3x DIC
7 Reflector insert (exchangeable)

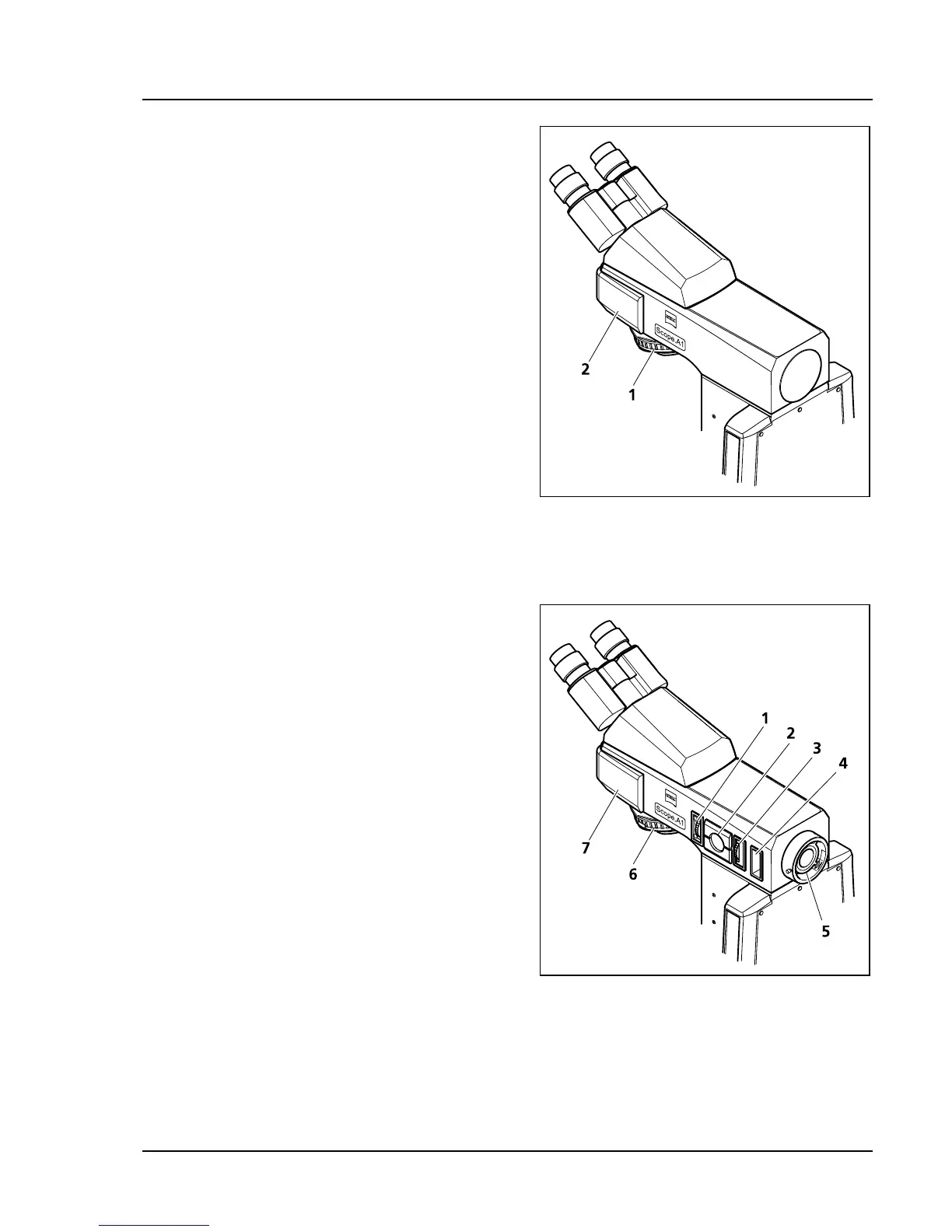

Fig. 4-21 Upper stand part transmitted light
Fig. 4-22 Upper stand part FL/HBO
