OPERATION
Axio Scope.A1 Operating and Functional Elements of Optional Components Carl Zeiss
M60-2-0007 e 05/08 101
4.2.8 Upper Stand Part HAL 100/HBO
1 Field diaphragm (centerable)
2 Aperture diaphragm (centerable)
3 Compartment for filter slider A
4 Connecting piece for illumination unit
5 Diffusing panel for reflected light
6 Nosepiece 6x bright- and dark-field
7 Reflector insert (exchangeable)
4.2.9 Upper Stand Part HAL 100/HBO DIC
1 Compartment for field diaphragm slider F
14x40 mm (see page 698H698H108)
2 Compartment for aperture diaphragm slider A
14x40 mm (see page
699H699H108)
3 Compartment for filter slider A or
FL attenuator slider
4 Connecting piece for illumination unit
5 Diffusion panel for reflected light
6 Nosepiece with six positions for bright-field,
dark-field DIC
7 Compartment for polarizer slider A
8 Reflector insert (exchangeable)

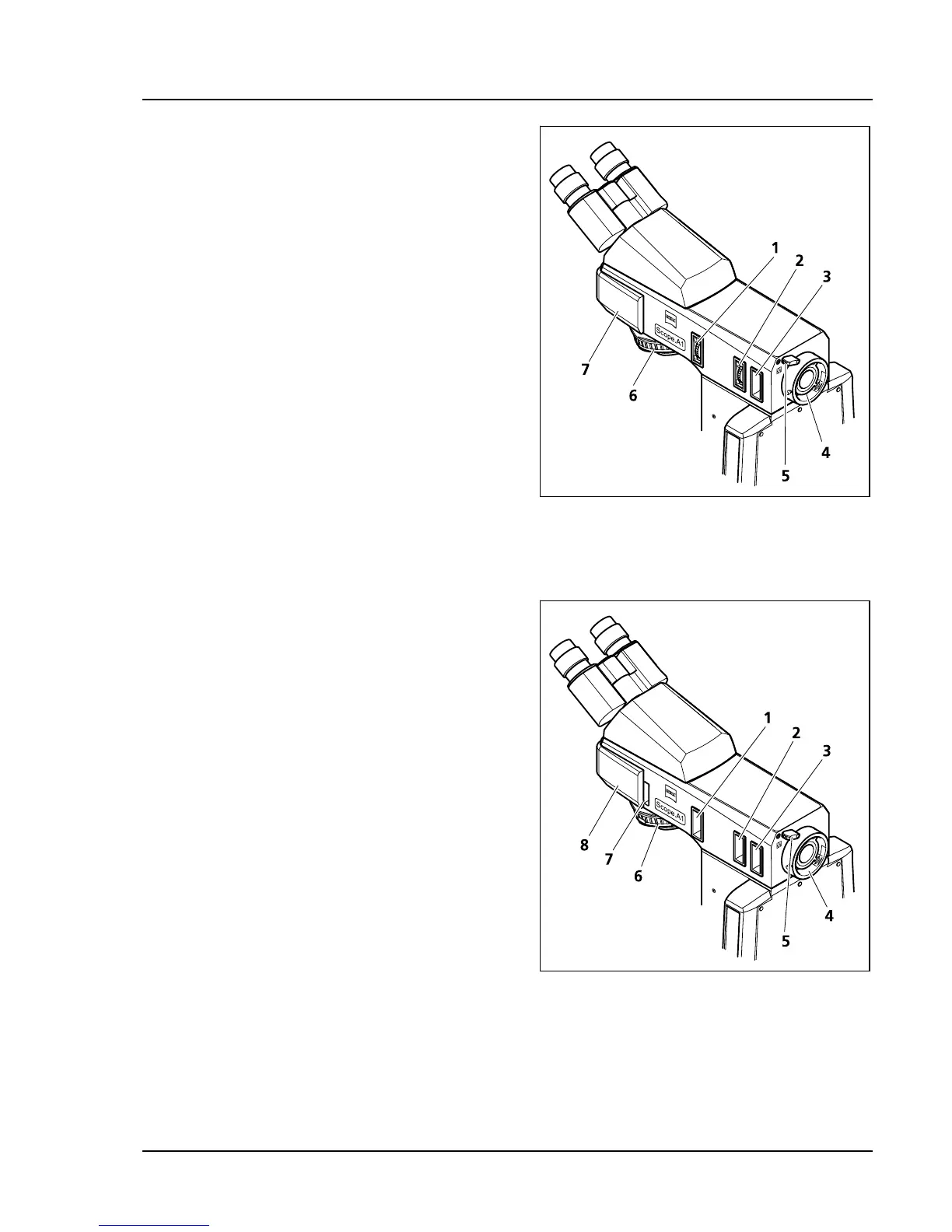

Fig. 4-24 Upper stand part HAL 100/HBO
Fig. 4-25 Upper stand part HAL 100/HBO DIC
