Zeiss Axio Scope.A1 - Mounting the Condenser

STARTUP
Axio Scope.A1 Mounting the Standard Components Carl Zeiss
M60-2-0007 e 05/08 43
3.1.12 Mounting the Condenser
• Slide the stage carrier with the focusing drive to
the upper stop.
• Open the frontal optic (if switchable) on the
condenser with the lever (
395H395HFig. 3-19/7). Unscrew
both centering screws (
396H396HFig. 3-19/5) on the
condenser carrier until you cannot see the end
parts anymore.
• Slide the condenser carrier (
397H397HFig. 3-19/3) with the
gear knob for vertical adjustment (
398H398HFig. 3-19/2)
all the way down.
• Insert the condenser (
399H399HFig. 3-19/8) between the
condenser carrier (
400H400HFig. 3-19/3) and the stage
carrier (
401H401HFig. 3-19/1). Adjust the pin screw on the
bottom of the condenser in direction of the slot
(
402H402HFig. 3-19/6).
• Press the condenser with the dovetail ring
against the spring box (
403H403HFig. 3-19/4) of the
condenser carrier until the condenser can be
placed on the condenser carrier horizontally.
• Release the condenser and its pin screw will
slide into the front slot (
404H404HFig. 3-19/6).
• Tighten the centering screws until they engage
in the condenser’s dovetail ring.
Proceed accordingly when mounting other condensers.

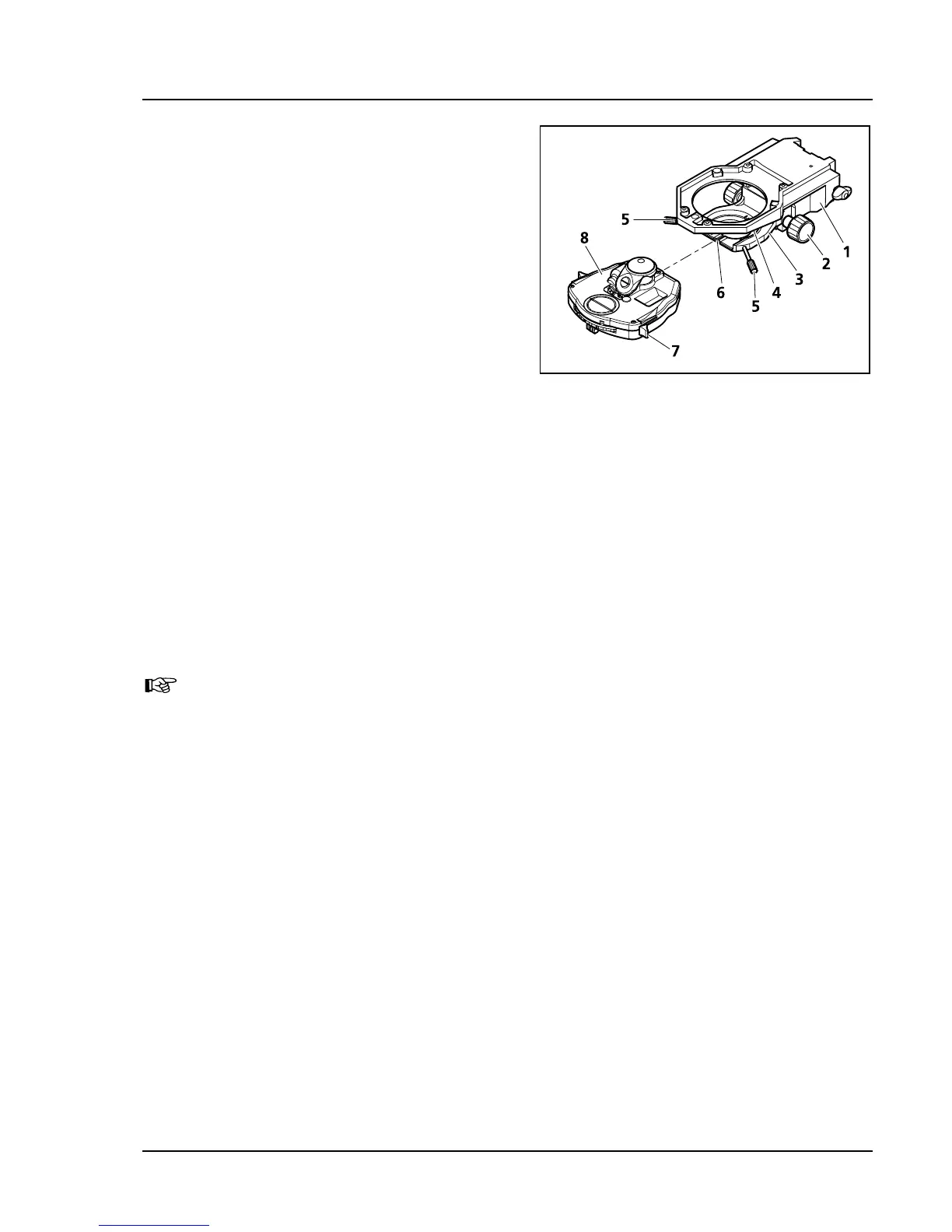

Fig. 3-19 Mounting the condenser
