STARTUP
Carl Zeiss Mounting the Standard Components Axio Scope.A1
32 M60-2-0007 e 05/08
How to insert eyepiece graticules
The eyepieces PL 10x/23 Br. foc. are designed to be
used with eyepiece graticules.
The slight image shift caused by the added glass is
reversed when the zero position is marked by the
red dot (
302H302HFig. 3-5/R) and not the white one (303H303HFig.
3-5/W).
The eyepiece graticules (
304H304HFig. 3-5/3) are glued into
screw-in lens parts (
305H305HFig. 3-5/4) and can thus be
changed easily. Complete lens parts with glued-in
graticules can be ordered from Zeiss.
How to change a lens part:
• Unscrew the lens part (
306H306HFig. 3-5/4) with the
eyepiece graticule (
307H307HFig. 3-5/3) and remove it.
Then insert the new lens part with the eyepiece
graticule.
If you want to add your own eyepiece graticule to the lens part after removing it, make sure
that the writing is face down before screwing the lens part back in.
How to insert eye guards
The eyepieces are furnished with protective rubber rings to protect spectacles from being scratched.
These rubber rings can be replaced by eye guards.
• Pull the rubber rings (
308H308HFig. 3-5/2) from the eyepieces, then insert the eye guards
(
309H309HFig. 3-5/1) instead.
If you find the rubber rings hard to remove from the eyepiece slots, try using a blunt stick to press them
out.

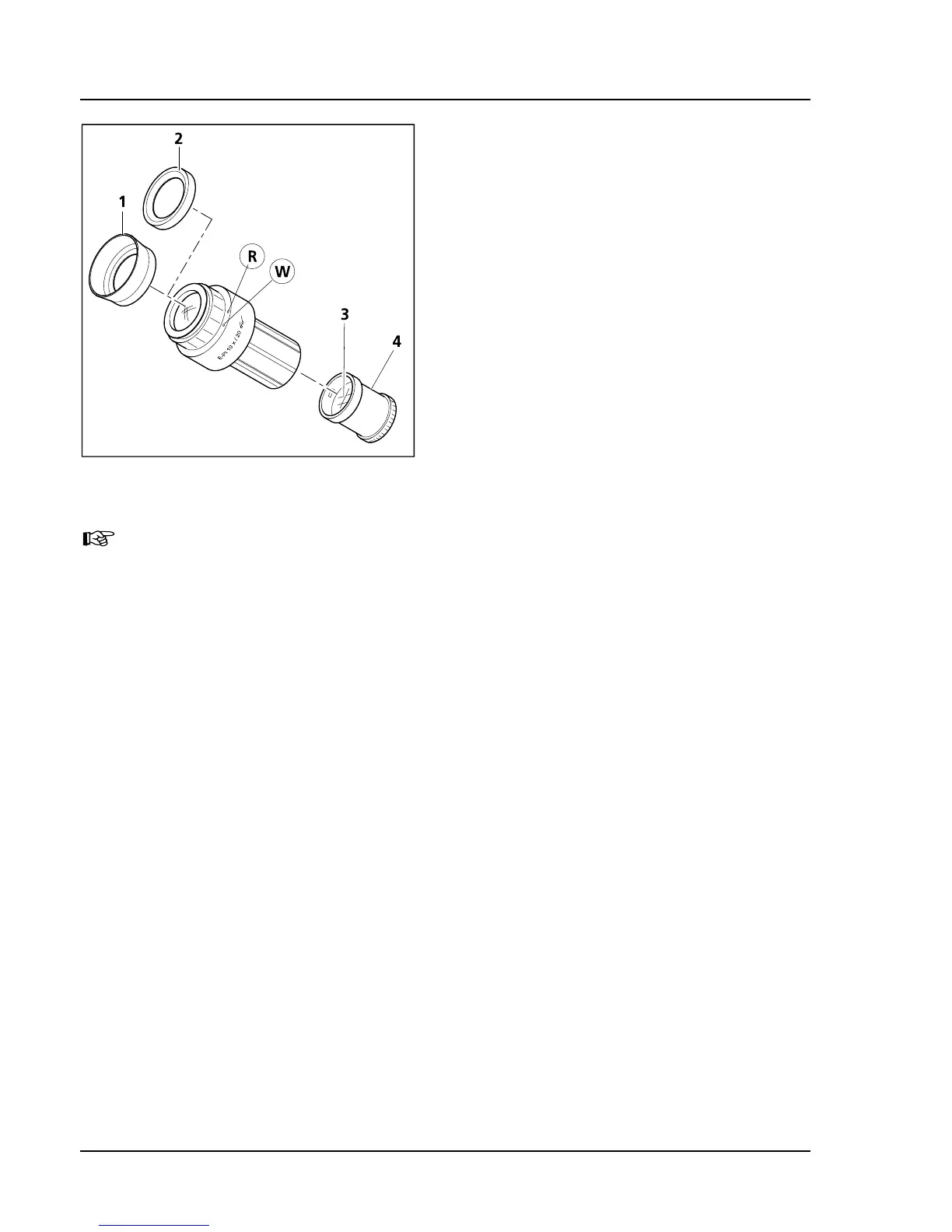

Fig. 3-5 Inserting an eyepiece graticule
