STARTUP
Carl Zeiss Mounting the Standard Components Axio Scope.A1
50 M60-2-0007 e 05/08
• Press the spring lever (
454H454HFig. 3-28/5) on the
heatsink up and pull the heatsink (
455H455HFig. 3-28/1)
off the inserted dummy or the used burner (
456H456HFig.
3-28/2). Lay it aside carefully.
The cord on the heatsink must not be
removed or damaged.
• Press down the spring lever (
457H457HFig. 3-28/4) on the
lower lamp socket and pull the dummy / burner
(
458H458HFig. 3-28/2) out of the socket (459H459HFig. 3-28/3) in an
upward motion. Release the spring lever.
Dispose of the used burners according
to legal regulations. Follow the
manufacturer’s guidelines!
• Press the spring lever (
460H460HFig. 3-28/4) on the lower
lamp socket down again and insert the burner
into the socket (
461H461HFig. 3-28/3). Do not touch the
burner’s glass bulb. Release the spring lever.
Avoid getting fingerprints on the
burner’s glass parts. Remove
immediately if fingerprints occur.
• Press spring lever (
462H462HFig. 3-28/5) on the heatsink
up and mount heatsink to the burner.
• Insert lamp carrier into lamp case and slide until
it engages. Tighten the clamping screw (
463H463HFig.
3-27/1).
• Write down the readings of the operation
hour’s meter (transformer). After 100 operation
hours the burner must be replaced.

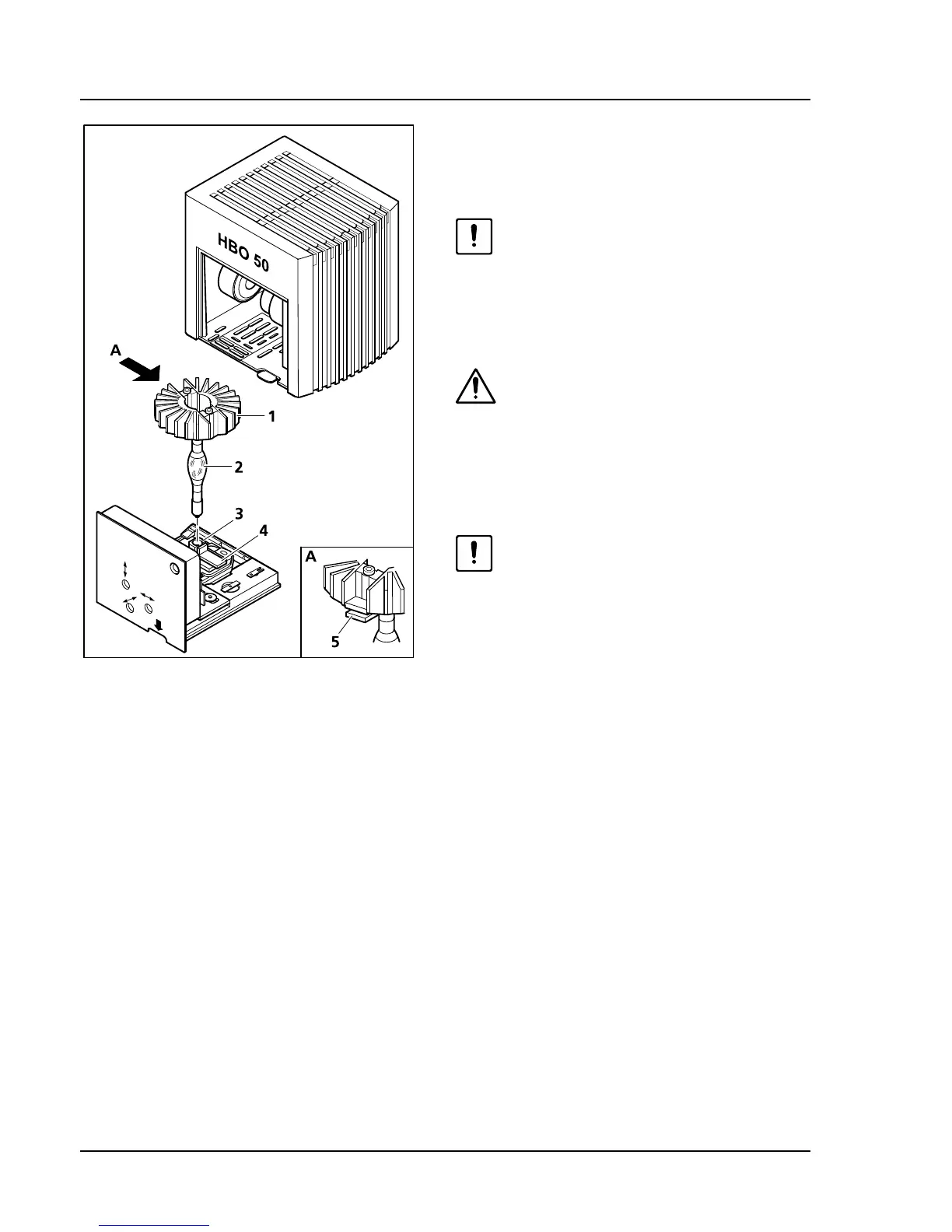

Fig. 3-28 Changing the burner
