OPERATION
Axio Scope.A1 Operating and Functional Elements of Optional Components Carl Zeiss
M60-2-0007 e 05/08 97
4.2.3 Lower Stand Part for HAL 100 Illumination
1 Field diaphragm
2 Filter wheel 6-fold (both sides)
3 Focusing drive – fine adjustment (both sides)
4 Focusing drive – rough adjustment (both sides)
5 Light intensity control (both sides)
6 Connector for internal power adjustment for auxiliary
power supply unit SNT 12 V DC 100 W
7 Connecting nozzle for halogen lamp HAL 100
8 Release tractor for vertical stop of focusing drive
9 Compartment for filter slider (both sides)
10 Gear shift for diffusion disk

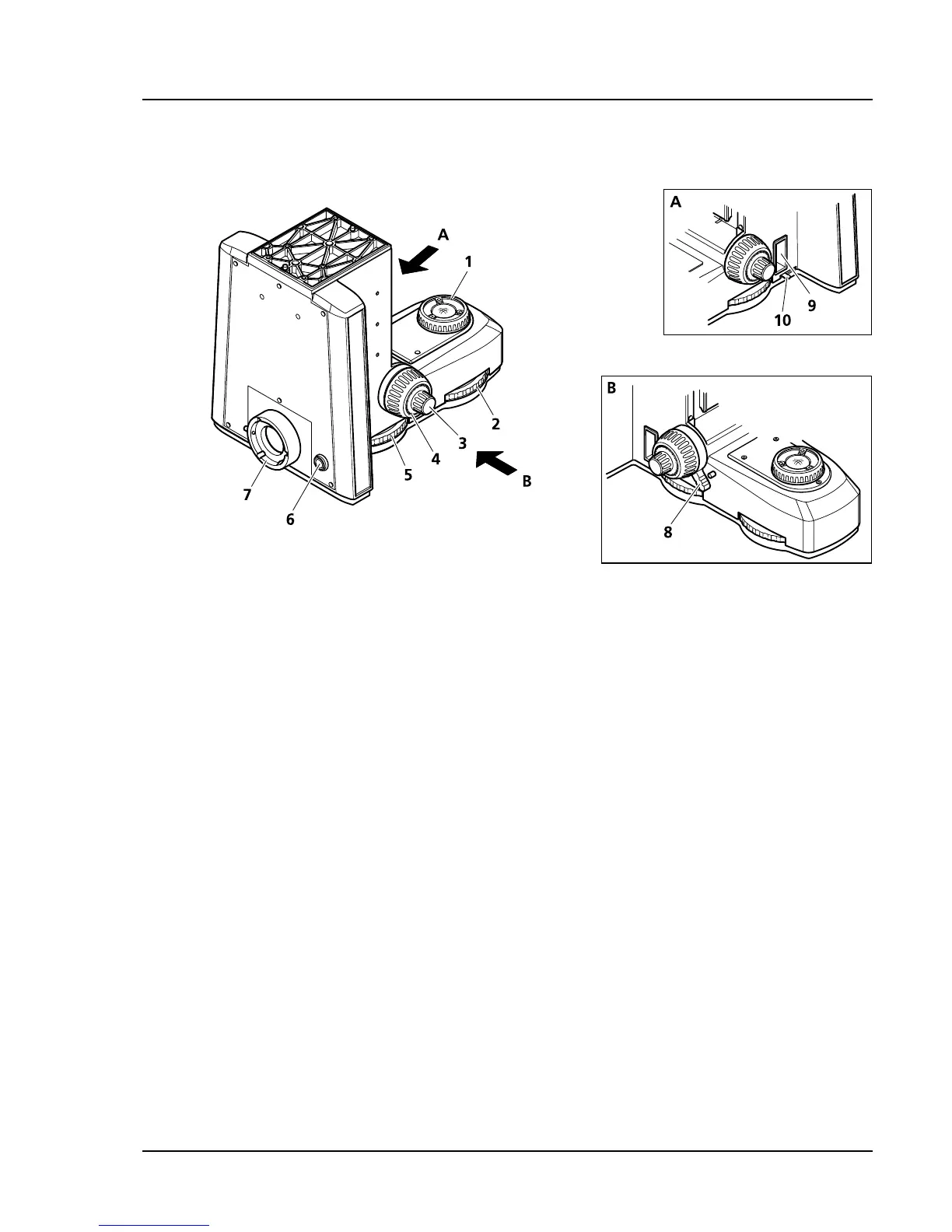

Fig. 4-19 Lower stand part for HAL 100 illumination
