STARTUP
Axio Scope.A1 Default Setting of the Microscope Carl Zeiss
M60-2-0007 e 05/08 67
3.5 Default Setting of the
Microscope
3.5.1 Adjusting the Eyepiece Distance
(Distance of the Pupils) on the
Binocular Tube
• Adjust the eyepiece distance (distance of the
pupils) according to the individual distance of
the operator’s eyes (
605H605HFig. 3-54).
The distance is good as soon as the operator sees
only one round image when looking through both
eyepieces!
3.5.2 Adjusting the Viewing Height
• Adjust the viewing height to the individual
needs by swinging the eyepiece barrel upward
(
606H606HFig. 3-55/A) or downward (607H607HFig. 3-55/B).
The binocular ergonomic (photo) tubes (425511-
0000-000, 425512-0000-000, 445514-0000-000
and 425520-9050-000) are equipped with a
continuous height adjustment in the range from
44 mm to 50 mm.
The binocular piece of the ergo tube 425520-
9050-000 can also be pulled out horizontally by
50 mm.

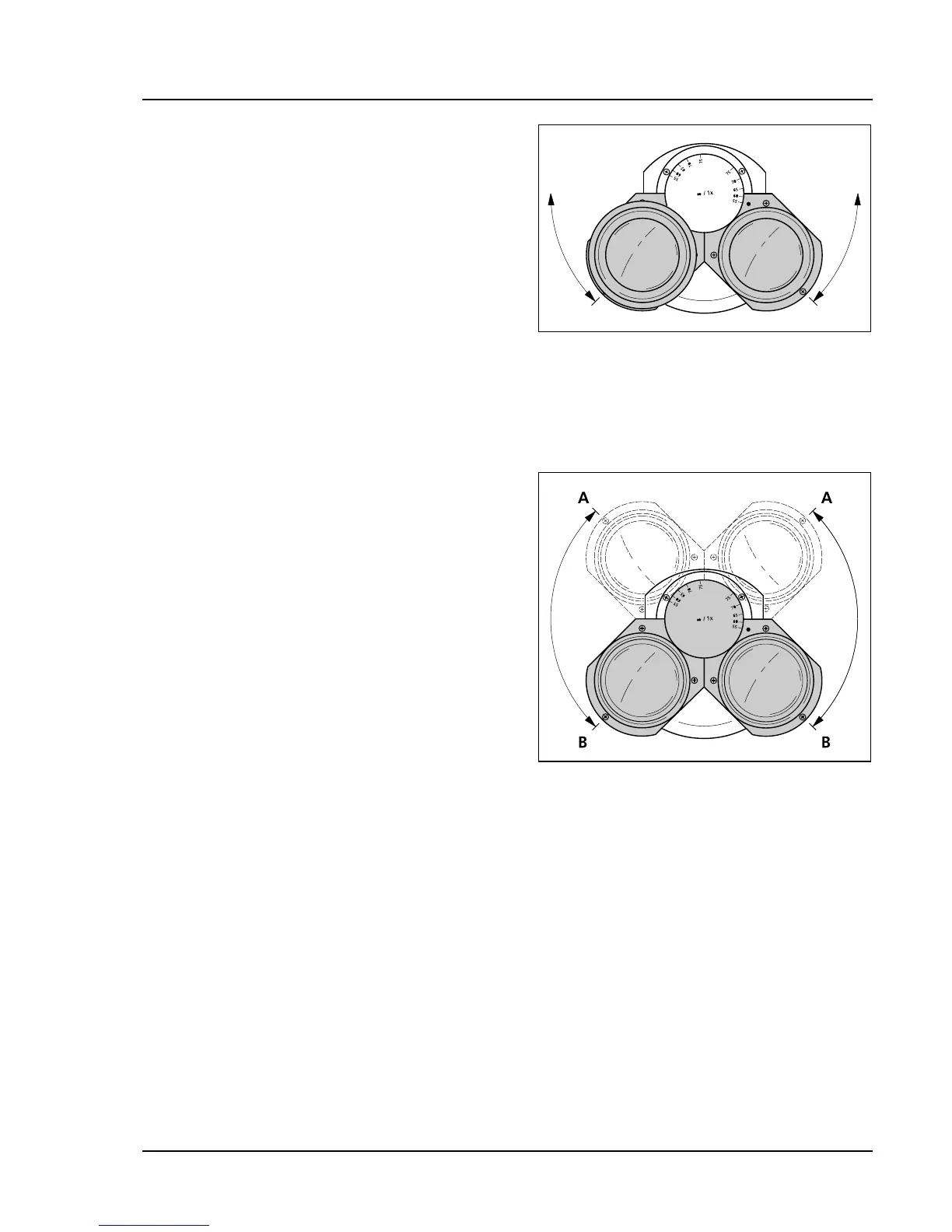

Fig. 3-54 Adjusting the eyepiece distance on
the binocular tube
Fig. 3-55 Adjusting the viewing height on
the binocular tube
