OPERATION
Axio Scope.A1 Operating and Functional Elements of Optional Components Carl Zeiss
M60-2-0007 e 05/08 105
Binocular ergo tube / ergo photo tube 20°/23
The ergo tubes are designed for the field of
view 23. The view angle is 20°.
The ergo tubes allow for a progressive vertical
adjustment within a range of 44 mm.
A larger range of adjustment can be used by
swinging the binocular piece from the lower into
the upper observation position (depending on eye
distance).
− Vertical adjustment is done with the turning
handles (
706H706HFig. 4-31/2).
− Check the adjustment path on the side scale
(
707H707HFig. 4-31/3).
The ergo photo tube has two switch settings
(partition: 100:0 / 0:100).
− Push rod (
708H708HFig. 4-31/1) inserted:
100 % to the eyepieces.
− Push rod (
709H709HFig. 4-31/1) pulled out:
100 % to the photo port.
The camera port may be loaded with a maximum
weight of 2.5 kg (camera plus cable). For a fee, the
Carl Zeiss service personnel will equip your
instrument with a higher maximum load, if
needed.

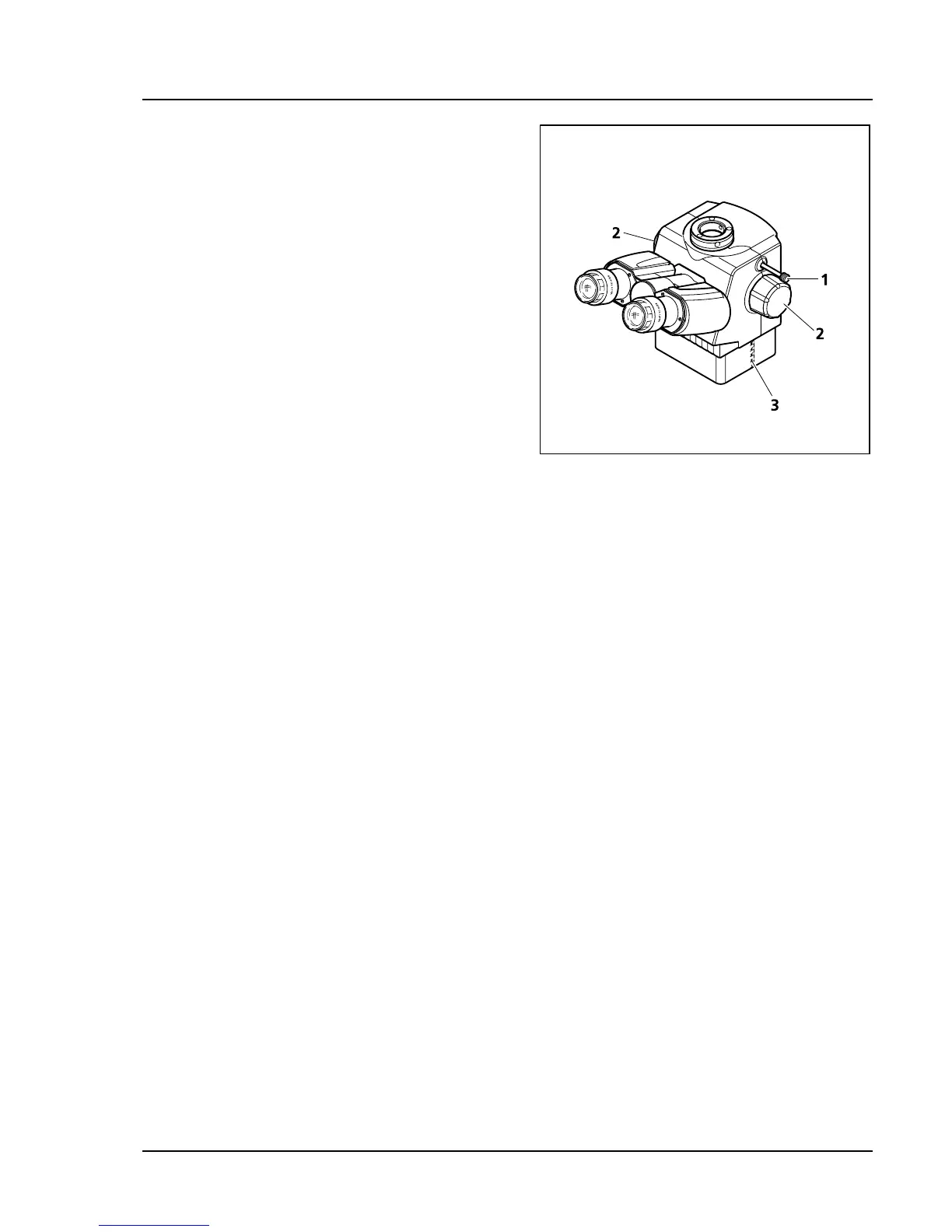

Fig. 4-31 Binocular ergo tube
