ABB AC 800F

3 Mounting the AC 800F
3-13

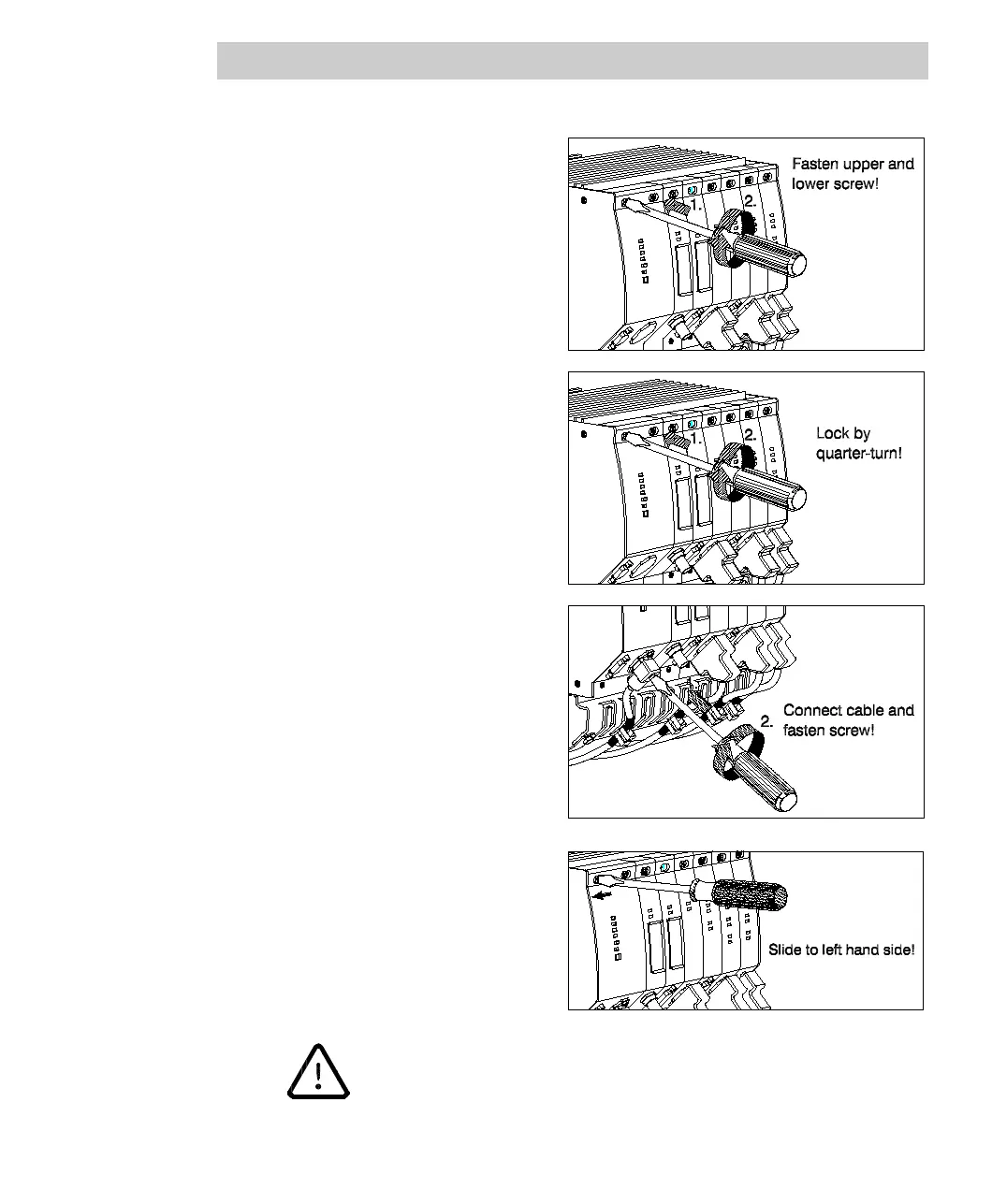

• Fasten power supply module at
the top and at the bottom.
Slightly push in the module
screws using a screw driver and
turn clockwise. Only hand-
tighten the screws.
• Alternatively, bayonet locks
are available. When using
such locks, a quarter-turn
(clockwise) will do to fasten
the module.
• Do not work under power!
Switch off using external switch
or safety cutout! Do not use the
connector as an “on/off switch”!
• Connect mains cable TK 807F
(open end) or TK 808F
(European connector plug).
Fasten screw by turning
clockwise. Only hand-tighten
the screws!
• Push slide-lock to the left
hand side until it snaps in.
–Done !
Do not use the power supply module with untightened screws!
